MGR5765QDW 04 – DOOR/DRAWER

MGR5765QDW 04 – DOOR/DRAWER

Written by

in

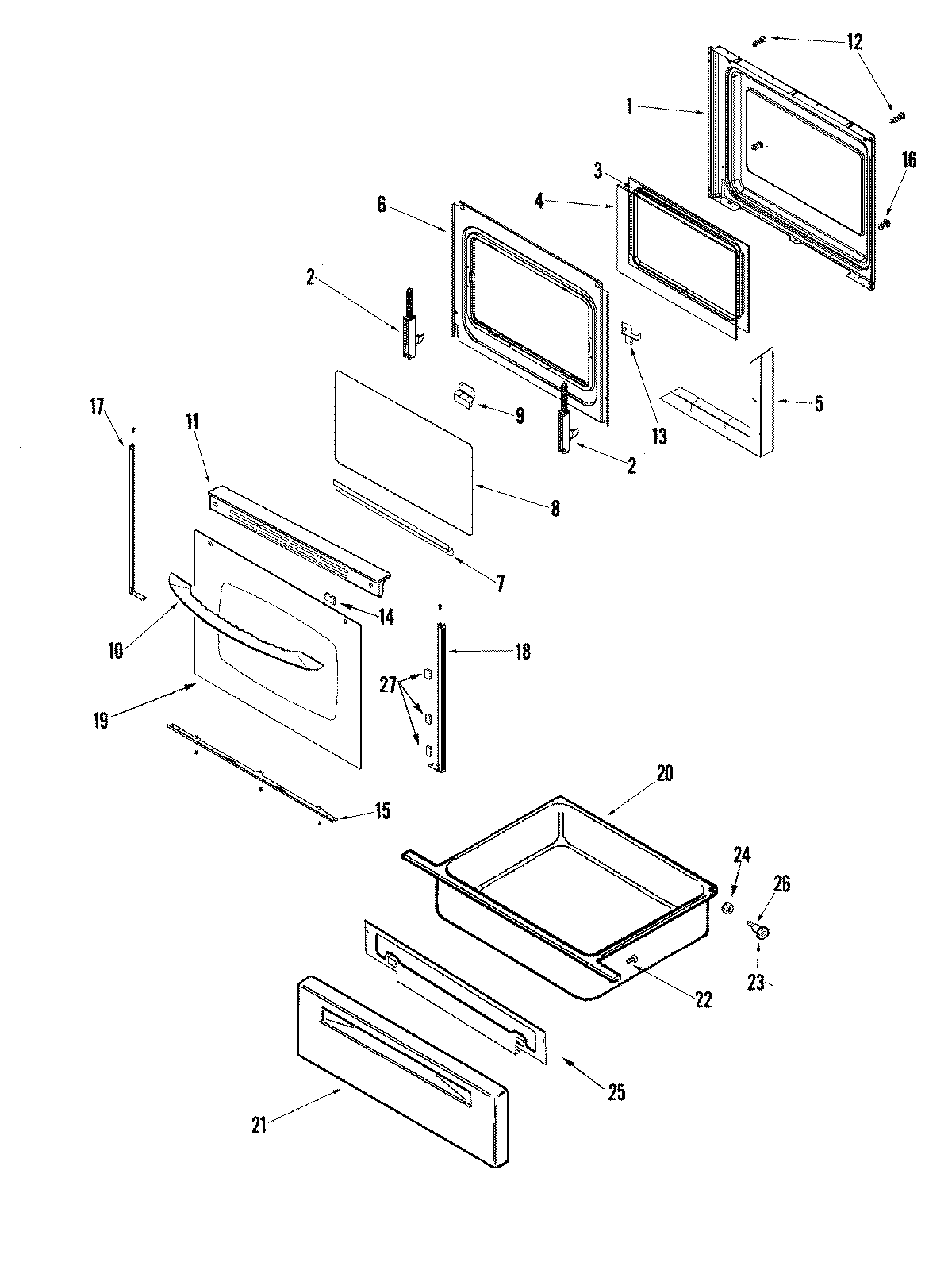

MGR5765QDW 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10WP74011768 Whirlpool Door Handle
11WP98008544 Whirlpool Screw Assembly
11Trim, Door Top (White)
12WP74006515 Whirlpool Washer Screw
13MAY 74008749
13MAY 74008750
14WP74004224 Whirlpool Tape
15WP3608F092-71 Whirlpool Bottom Trim
16SCREW (10-24X5/16-NI)
17MAY 74008753
18MAY 74008751
18MAY 74010561
19Glass, Door (White)
20WP3405F037-80 Whirlpool Utility Drawer
21PANEL, DRAWER (WHT)
22SCREW
23WP74004078 Whirlpool Door Roller
24WP488130 Whirlpool Air Conditioner Nut
25MAY 74009026
26SHAFT, STORAGE DRAWER ROLLER
27WP74009014 Whirlpool Double Tape
