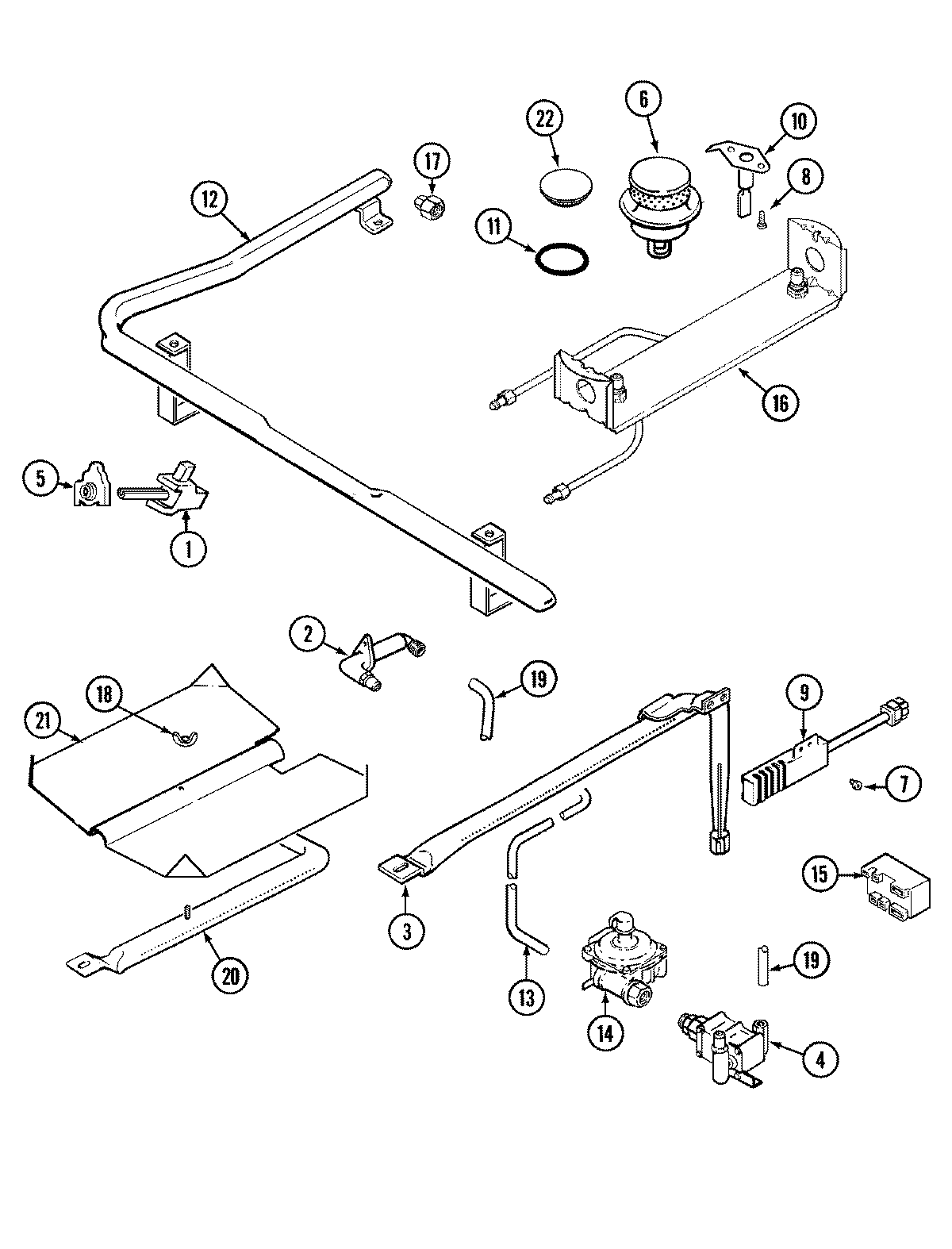

MGR5770ADQ 04 – GAS CONTROLS

Products

Position	Product
1	WP8273096 Whirlpool Screw
1	MAY 74004303
1	MAY 71003231
1	MAY 74003924
2	MAY 7507P088-60
2	WP3387230 Whirlpool Screw
2	MAY 74004307
3	MAY 74003960
3	MAY 3807F446-45
3	SCREW (10-24X5/16-NI)
4	WP74006427 Whirlpool Oven Valve
5	WP7403P279-60 Whirlpool Igniter Switch
5	MAY 74002533
5	MAY 74004986
6	MAY 74003966
7	WP3351614 Whirlpool Screw
8	MAY Y707113
9	MAY 7432P076-60
9	MAY 4005F421-45
10	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	MAY 74002745
12	MAY 74005681
12	SCREW
12	MAY 74003504
13	MAY 3414F103-44
14	WP74006429 Whirlpool Regulator
15	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
16	WP5787M052-60 Whirlpool Fitting
16	MAY 74003506
17	MAY 7103P130-60
18	NUT, WING
19	MAY 3414F102-44
19	MAY 1555258K
20	MAY 74004076
21	MAY 3601F217-47
22	MAY 71003054
23	MAY 5120D019-60
23	MAY 71003540
23	MAY 5125A312-60
24	MAY 12002441
