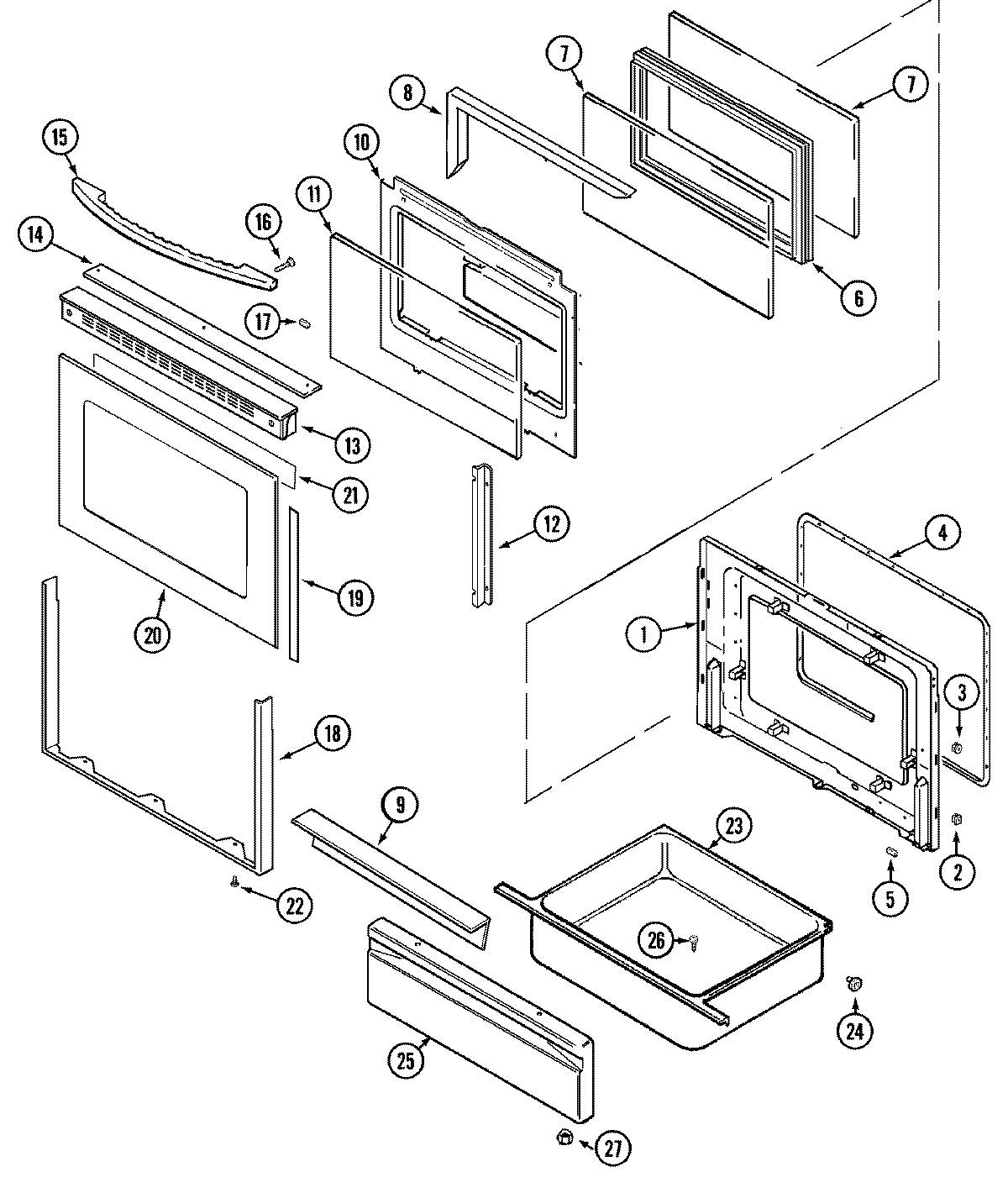

MGR5770ADW 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-WHT)
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	MAY 8010P085-60
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	INSULATION, OVEN DOOR
9	LINING, DRAWER PANEL
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	WP74003653 Whirlpool Door Trim
14	MAY 7728P094-60
14	MAY 74001278
15	MAY 74003620
16	WP179051 Whirlpool Screw
17	WP74004224 Whirlpool Tape
18	MAY 74004325
18	MAY 74004842
18	WP98008544 Whirlpool Screw Assembly
19	MAY 74003660
20	MAY 74003671
21	TAPE, FOIL 29`` X 2``
22	SCREW
23	MAY 71003042
24	WP488130 Whirlpool Air Conditioner Nut
24	MAY 74003566
25	PANEL, DRAWER (WHT)
27	WPW10131078 Whirlpool Nut Assembly
