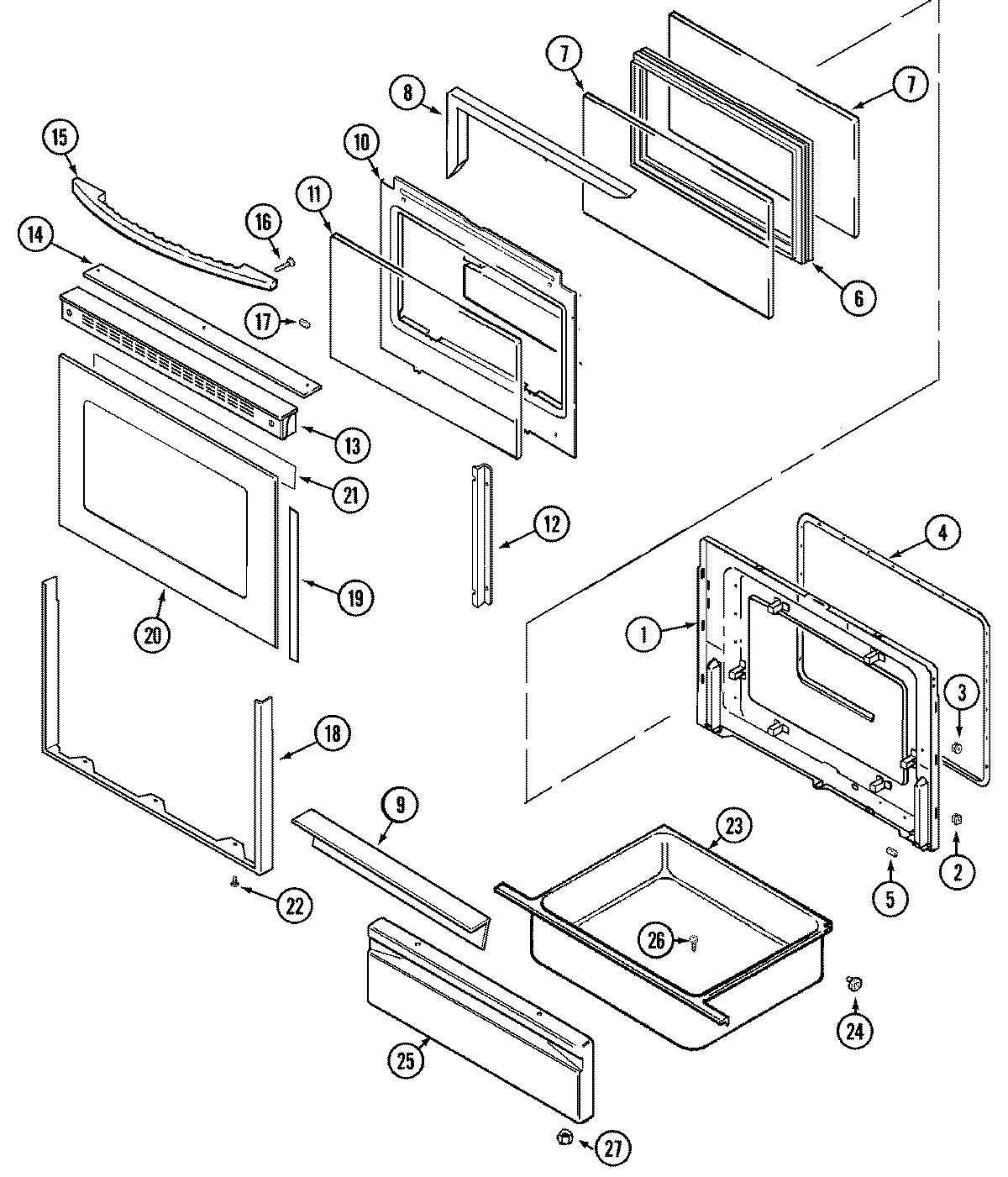

MGR5775ADB 03 – DOOR/DRAWER

MGR5775ADB 03 – DOOR/DRAWER

Written by

in

MGR5775ADB 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-BLK)
3NUT, SNAP (ROUND-WHT)
4GASKT-DOOR OVEN
5MAY 8010P085-60
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
9LINING, DRAWER PANEL
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13WP74003652 Whirlpool Door Trim
15MAY 74003617
16WP179051 Whirlpool Screw
17WP74004224 Whirlpool Tape
18MAY 74003658
18WP98008545 Whirlpool Screw
19MAY 74003660
20MAY 74003662
21TAPE, FOIL 29“ X 2“
22SCREW
23MAY 71003042
24WP74004078 Whirlpool Door Roller
24MAY 74004079
24WP488130 Whirlpool Air Conditioner Nut
25PANEL, DRAWER (BLK)
27WPW10131078 Whirlpool Nut Assembly
