MGR5775ADW 03 – DOOR/DRAWER

MGR5775ADW 03 – DOOR/DRAWER

Written by

in

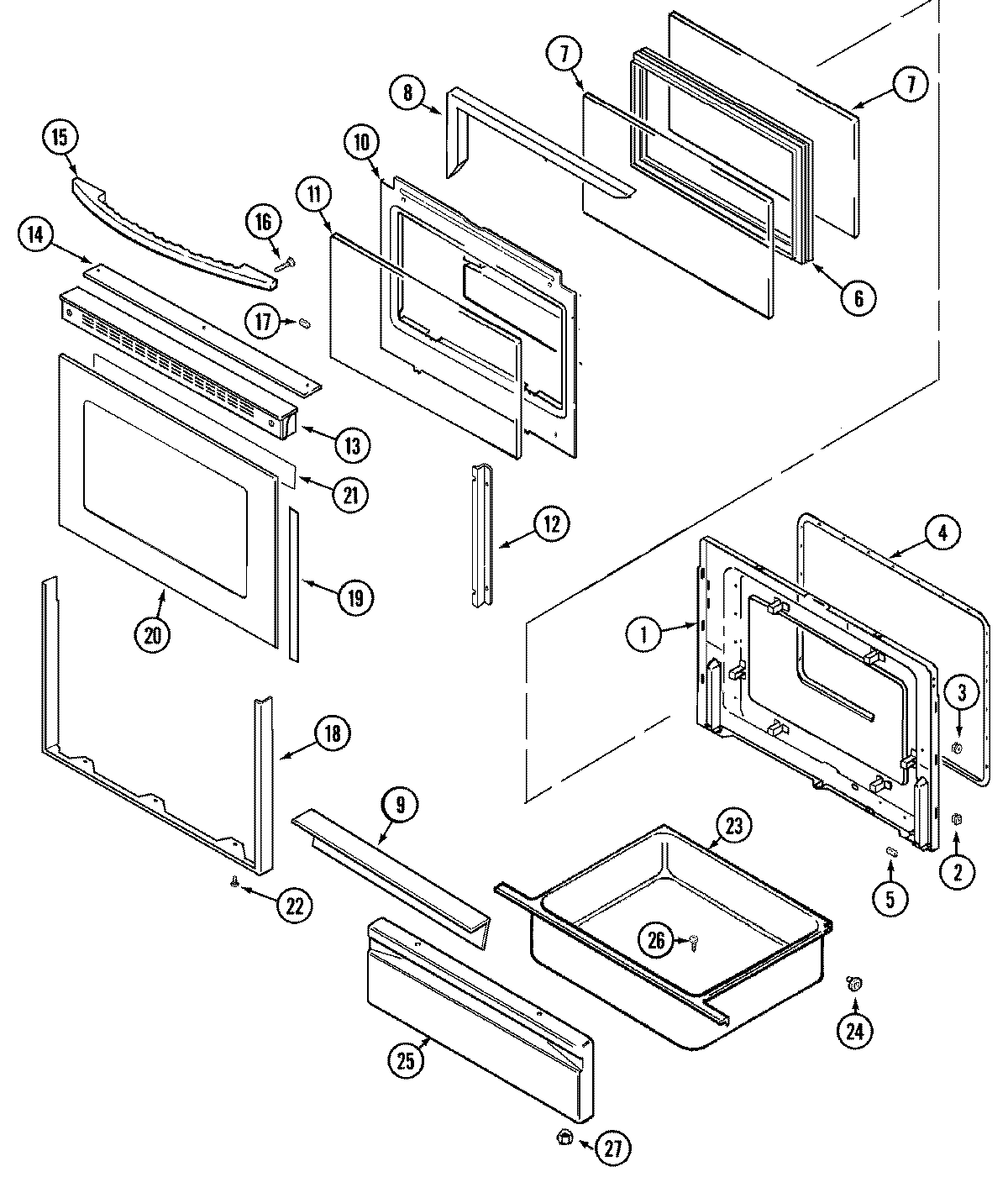

MGR5775ADW 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-BLK)
3NUT, SNAP (ROUND-WHT)
4GASKT-DOOR OVEN
5MAY 8010P085-60
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
9LINING, DRAWER PANEL
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13WP74003653 Whirlpool Door Trim
14MAY 7728P094-60
15MAY 74003620
16WP179051 Whirlpool Screw
17WP74004224 Whirlpool Tape
18MAY 74004325
18WP98008544 Whirlpool Screw Assembly
18MAY 74003659
19MAY 74003660
20MAY 74003671
21TAPE, FOIL 29“ X 2“
22SCREW
23MAY 71003042
24WP74004078 Whirlpool Door Roller
24MAY 74004079
24WP488130 Whirlpool Air Conditioner Nut
25PANEL, DRAWER (WHT)
27WPW10131078 Whirlpool Nut Assembly
