MGR5775QDB1 05 – DOOR PARTS – Aparts

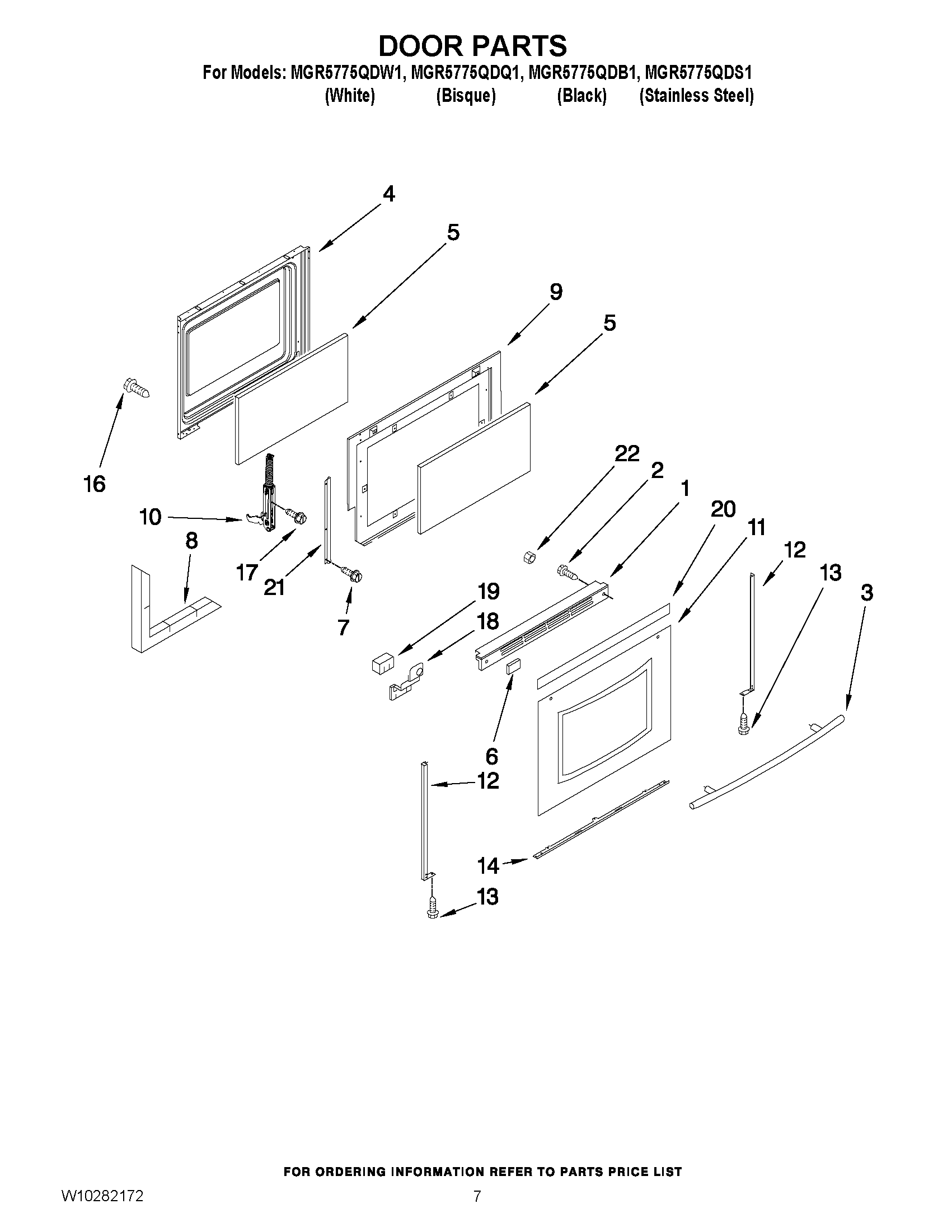

MGR5775QDB1 05 – DOOR PARTS

Products

Position	Product
1	MAY 3608F140-78
1	MAY 3608F140-71
1	MAY 3608F140-70
2	MAY 3196557
2	Screw (White)
2	MAY 8281194
3	MAY 7701P517-60
3	MAY 7701P516-60
3	MAY 7701P518-60
4	MAY 2402W297-19
5	Glass, Inner
6	WP74004224 Whirlpool Tape
7	MAY 7101P388-60
8	MAY 7002P246-60
9	Retainer, Side
10	MAY 7106P124-60
11	MAY 7902P791-60
11	MAY 7902P803-60
11	MAY 7902P782-60
11	GLASS, DOOR (WHITE)
12	MAY 3608F126-70
12	Trim, Door Side (Bisque)
12	MAY 3608F126-71
13	Screw (2) (Black)
14	MAY 3608F092-71
14	TRIM, DOOR BOTTOM (BISQUE)
14	MAY 3608F092-70
16	MAY 7101P427-60
17	SCREW (10-24X5/16-NI)
18	MAY 3801P858-45
18	MAY 3801P857-45
19	INSULATION, CORNER (DOOR)
20	TAPE, FOIL 3``
21	BRACKET, INNER GLASS
22	MAY 7103P190-60
