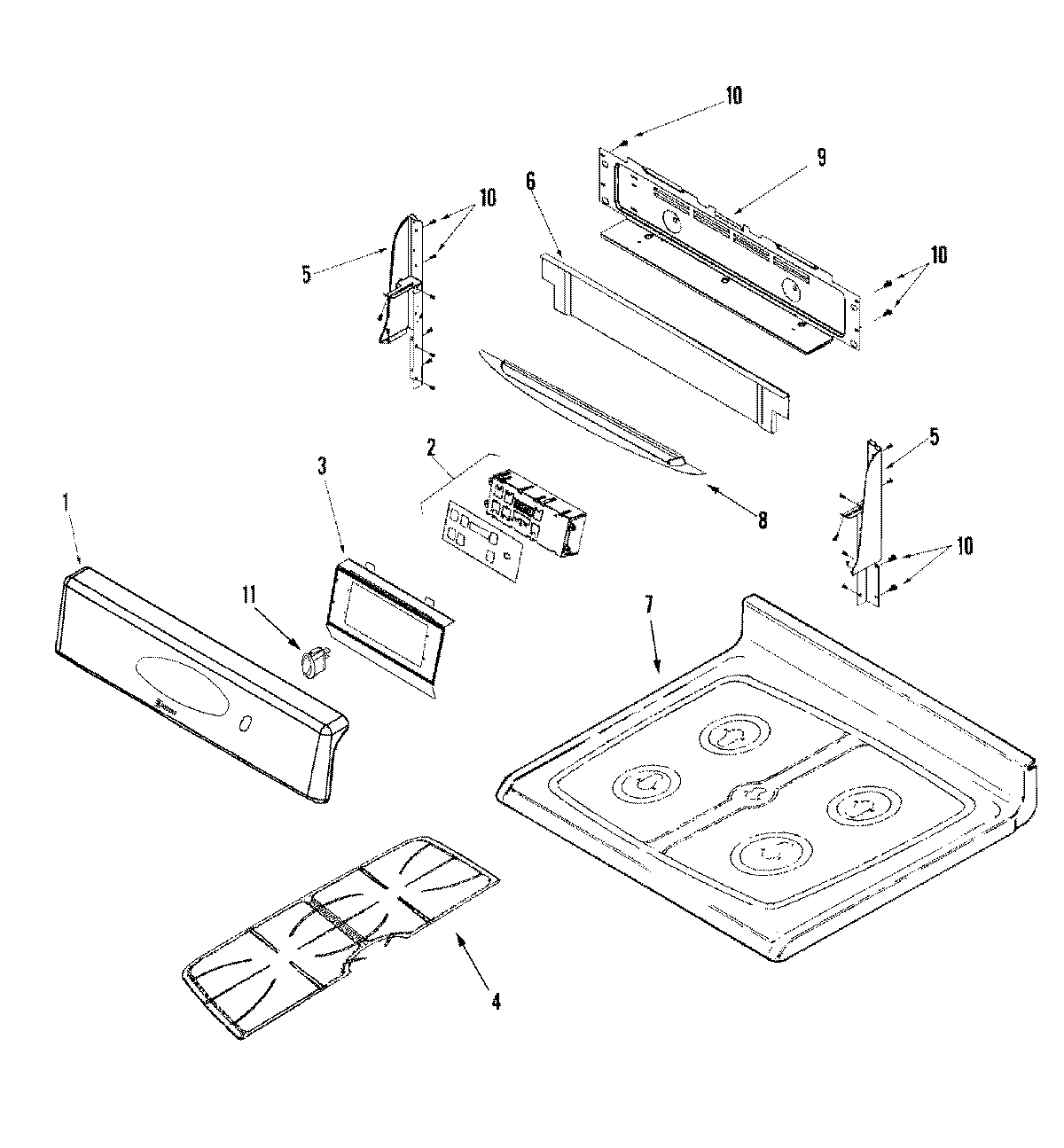

MGR5775QDW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009109
2	WP74009227 Whirlpool Electronic Control Board
3	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3	BRACKET, CLOCK
4	MAY M0275597
4	W10919249 Whirlpool Burner Grate Foot
4	MAY 74009083
5	END CAP (RT-WHT)
5	Latch Assembly
6	MAY 74008726
6	MAY 74009206
7	TOP, MAIN 5 BURNER (WHT)
8	SCREW, SHOULDER
8	MAY 74009203
8	MAY 74008728
9	MAY 74009093
9	MAY 74009053
9	COVER, BROIL ACCESS FITTING
9	SCREW (8BX3/8-NI)
10	SCREW
11	WP74010226 Whirlpool RO Switch
