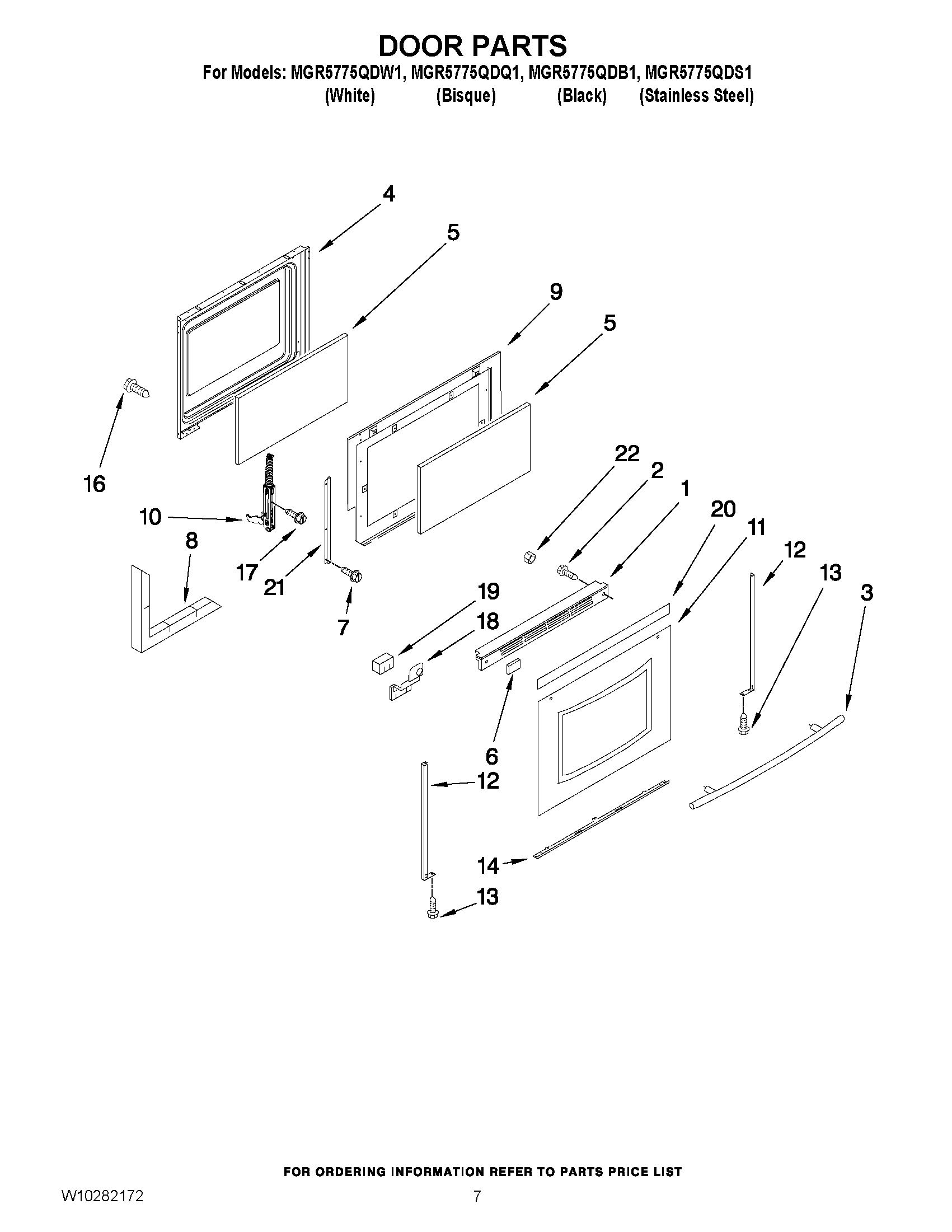

MGR5775QDW1 05 – DOOR PARTS
Written by
in
MGR5775QDW1 05 – DOOR PARTS
Products
Position
Product
1
MAY 3608F140-78
1
MAY 3608F140-71
1
MAY 3608F140-70
2
MAY 3196557
2
Screw (White)
2
MAY 8281194
3
MAY 7701P517-60
3
MAY 7701P516-60
3
MAY 7701P518-60
4
MAY 2402W297-19
5
Glass, Inner
6
WP74004224 Whirlpool Tape
7
MAY 7101P388-60
8
MAY 7002P246-60
9
Retainer, Side
10
MAY 7106P124-60
11
MAY 7902P791-60
11
MAY 7902P803-60
11
MAY 7902P782-60
11
GLASS, DOOR (WHITE)
12
MAY 3608F126-70
12
Trim, Door Side (Bisque)
12
MAY 3608F126-71
13
Screw (2) (Black)
14
MAY 3608F092-71
14
TRIM, DOOR BOTTOM (BISQUE)
14
MAY 3608F092-70
16
MAY 7101P427-60
17
SCREW (10-24X5/16-NI)
18
MAY 3801P858-45
18
MAY 3801P857-45
19
INSULATION, CORNER (DOOR)
20
TAPE, FOIL 3“
21
BRACKET, INNER GLASS
22
MAY 7103P190-60
←
