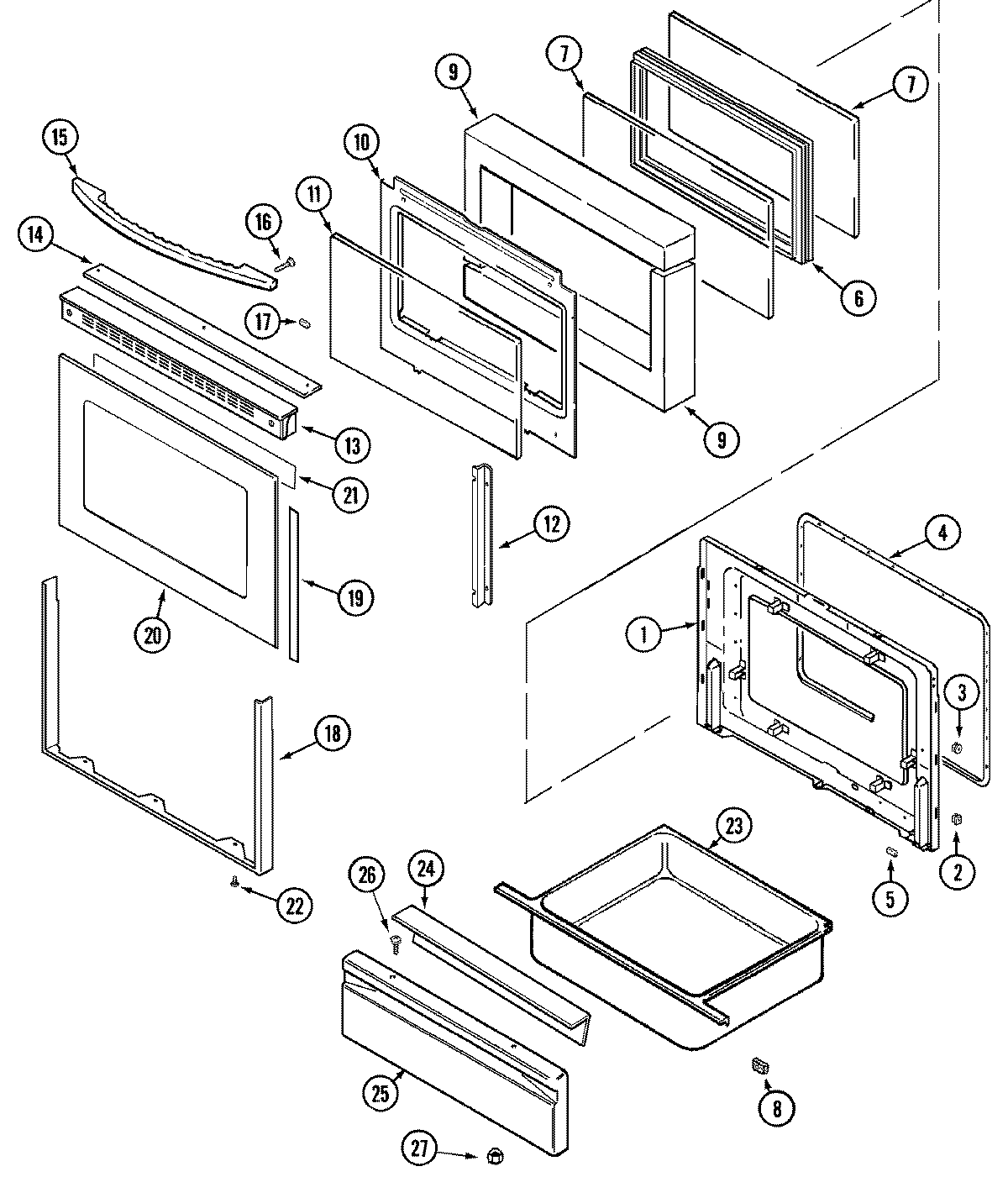

MGR5780BDQ 03 – DOOR/WARMING DRAWER

MGR5780BDQ 03 – DOOR/WARMING DRAWER

Written by

in

MGR5780BDQ 03 – DOOR/WARMING DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8WP74005546 Whirlpool RU Spacer
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13MAY 74006403
14MAY 74004978
15MAY 74006377
16WP74006515 Whirlpool Washer Screw
17WP74004224 Whirlpool Tape
18MAY 74005162
18WP74009541 Whirlpool Screw Assembly
19MAY 74003660
20MAY 74006405
21TAPE, FOIL 29“ X 2“
22SCREW
23WP3801F813-51 Whirlpool Bracket
23MAY 74008334
23MAY 74006595
24MAY 74006593
25PANEL, DRAWER (BSQ)
26WP7101P072-60 Whirlpool Screw
27WPW10131078 Whirlpool Nut Assembly
