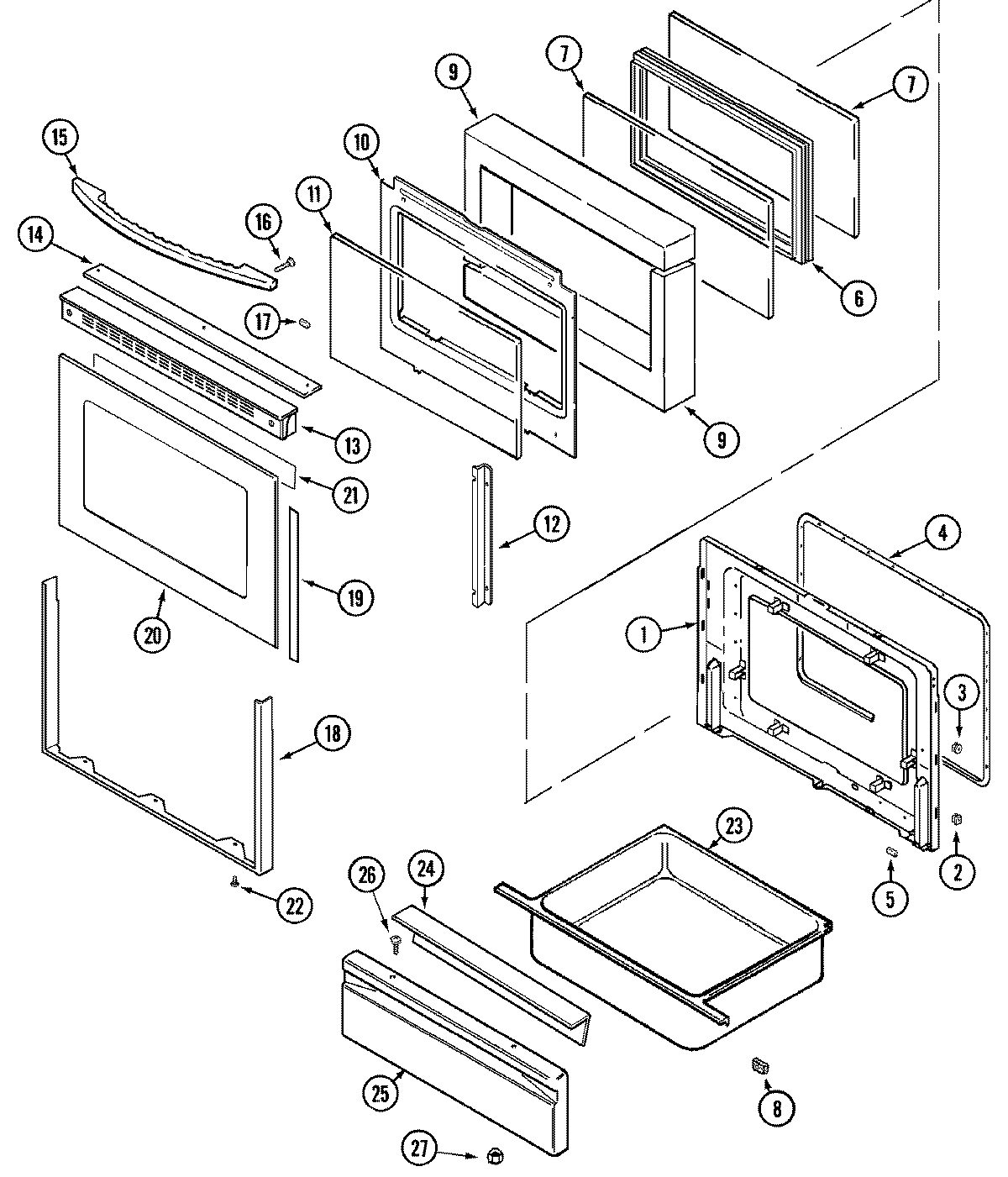

MGR5780BDW 03 – DOOR/WARMING DRAWER

MGR5780BDW 03 – DOOR/WARMING DRAWER

Written by

in

MGR5780BDW 03 – DOOR/WARMING DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-BLK)
3NUT, SNAP (ROUND-WHT)
4GASKT-DOOR OVEN
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8WP74005546 Whirlpool RU Spacer
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13MAY 74006401
14MAY 74001278
14MAY 7728P094-60
15WP74006381 Whirlpool Door Handle
16WP74006515 Whirlpool Washer Screw
17WP74004224 Whirlpool Tape
18MAY 74004325
18WP98008544 Whirlpool Screw Assembly
19MAY 74003660
20MAY 74006404
21TAPE, FOIL 29“ X 2“
22SCREW
23WP3801F813-51 Whirlpool Bracket
23MAY 74008334
23MAY 74006595
24MAY 74006593
25PANEL, DRAWER (WHT)
26WP7101P072-60 Whirlpool Screw
27WPW10131078 Whirlpool Nut Assembly
