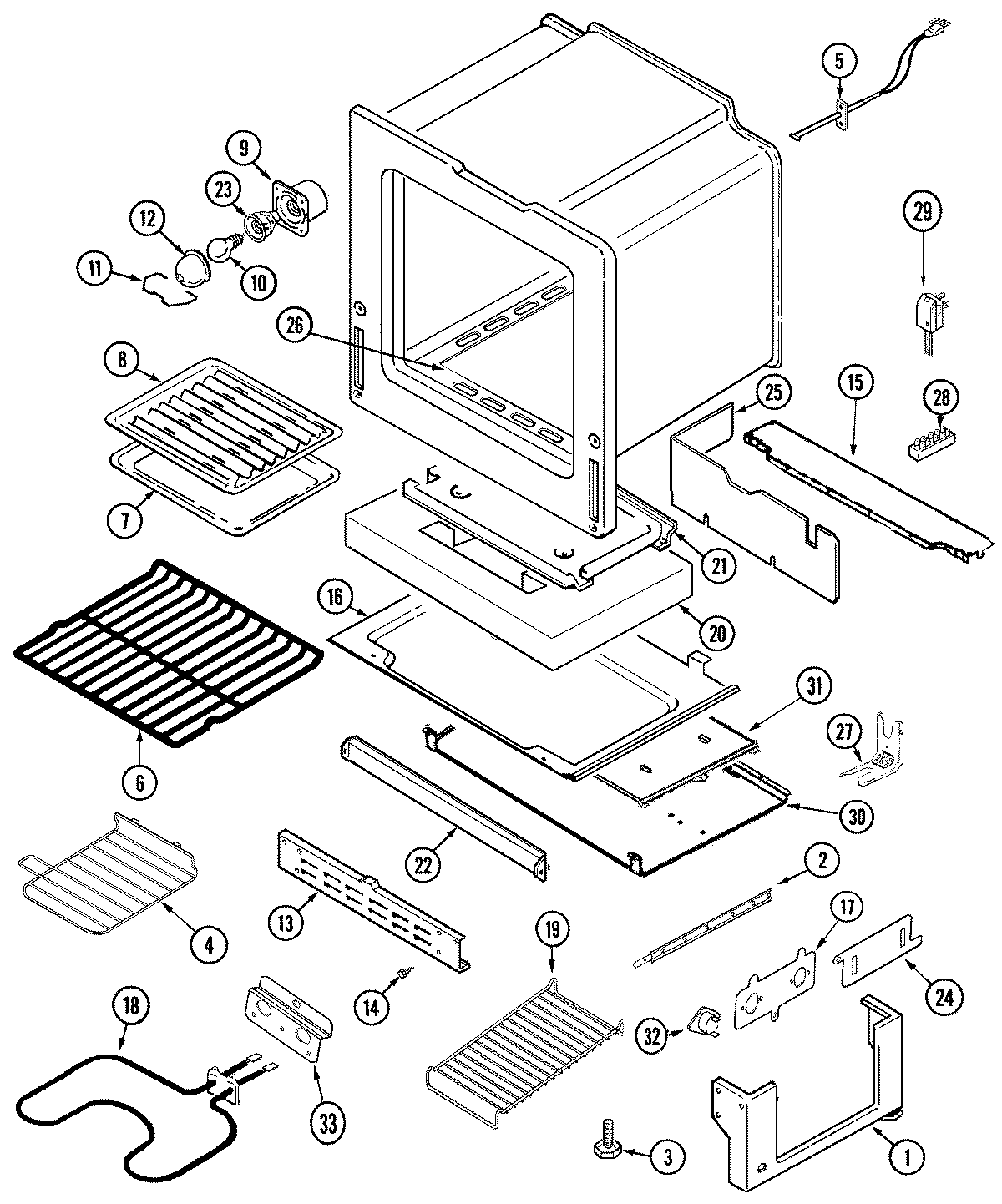

MGR5780BDW 05 – OVEN/BASE

Products

Position	Product
1	MAY 74005772
2	WP74006588 Whirlpool Warming Drawer Glide
3	W11665456 Whirlpool Range Level Foot
4	MAY 74003590
5	12001655 Whirlpool Oven Sensor
6	WPW10282492 Whirlpool Oven Rack
7	MAY Y3401F02019
8	MAY Y3413F01619
9	MAY 74003388
10	RANGE ONLY 40W 120V APPL BULB
11	MAY 74003391
12	MAY 74003389
13	MAY 4020F001-80
15	MAY 74006324
16	MAY 74004296
17	MAY 74006575
18	MAY 74005789
18	MAY 74006592
19	MAY 74006573
20	MAY 74003503
21	PAN, BAKE BURNER
22	BAFFLE, OVEN FRONT
23	MAY 74003387
24	MAY 74006681
25	MAY 74006679
26	MAY 5504M004-19
26	MAY 3601F239-47
27	WP7101P485-60 Whirlpool Anchor Tip
27	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
28	MAY 74006037
29	GROMMET
29	MAY 74004438
30	MAY 74006677
30	MAY 74006591
31	MAY 74006574
31	INSULATION, DRAWER & SHIELD
32	SCREW (8BX3/8-NI)
32	MAY 74006586
33	SCREW
33	MAY 74006576
