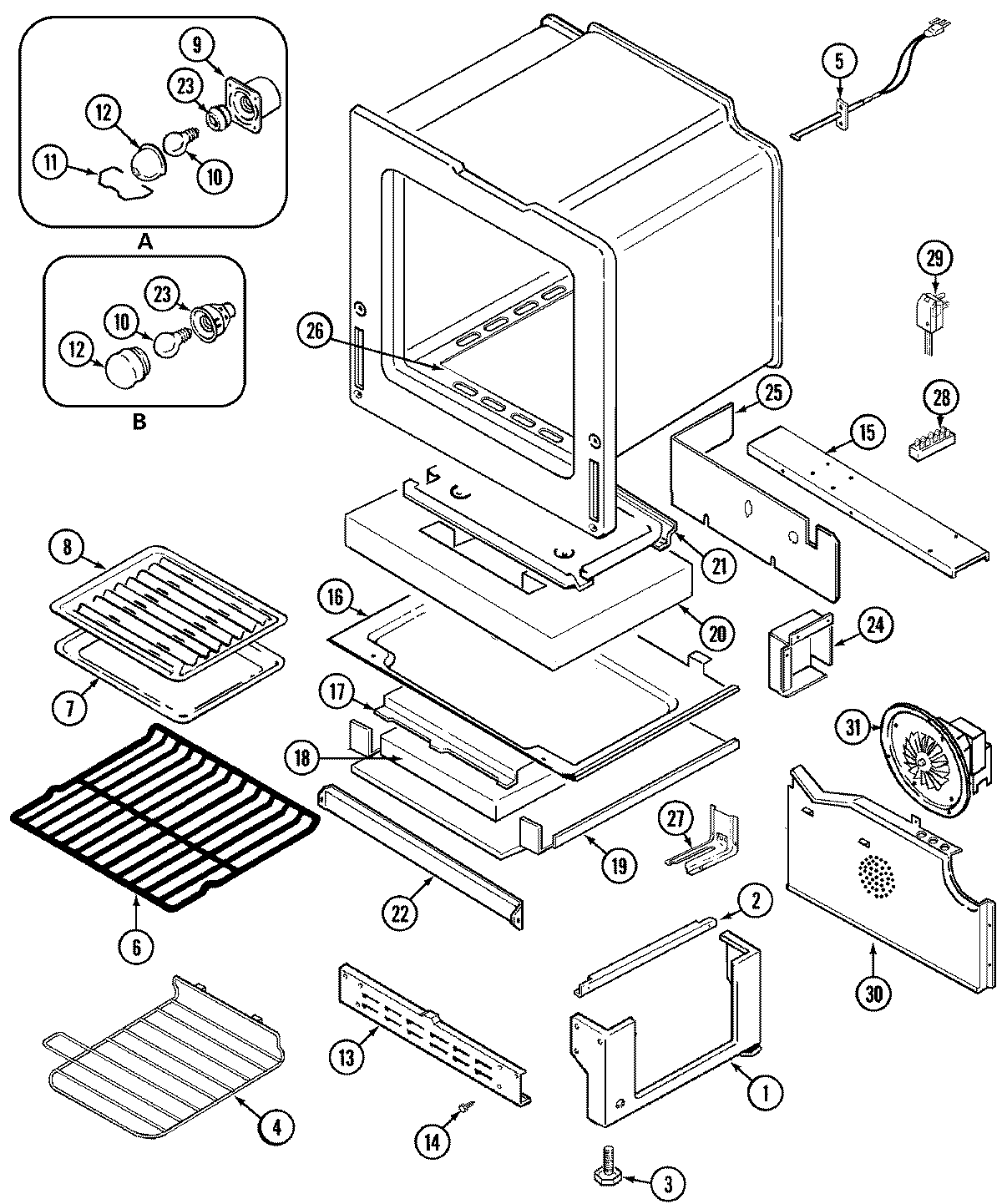

MGR5870ADB 05 – OVEN/BASE

Products

Position	Product
1	MAY 74003405
2	RUNNER, DRAWER
3	W11665456 Whirlpool Range Level Foot
4	MAY 74003590
5	MAY 74003413
6	WPW10282492 Whirlpool Oven Rack
7	MAY Y3401F02019
8	MAY Y3413F01619
9	MAY 74003388
10	RANGE ONLY 40W 120V APPL BULB
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	MAY 74003391
12	WP9781049 Whirlpool Light Lens
12	MAY 74003389
13	MAY 4020F001-80
15	MAY 74002593
16	MAY 74003242
17	MAY 3604F204-51
18	INSULATION, DRAWER & SHIELD
19	MAY 3604F205-51
20	MAY 74003503
21	MAY 74001651
22	WP74003976 Whirlpool Screw
22	BAFFLE, OVEN FRONT
23	WP7407P182-60 Whirlpool Lamp
23	MAY 74003387
24	MAY 3807F473-51
25	SCREW
25	MAY 74003329
26	MAY 5504M004-19
27	MAY 74002311
27	MAY 7101P344-60
28	MAY 7401P037-60
29	MAY 7402P043-60
30	MAY 74003697
31	MAY 74001161
31	MAY 74002596
31	MAY 74003815
31	MAY 74005676
