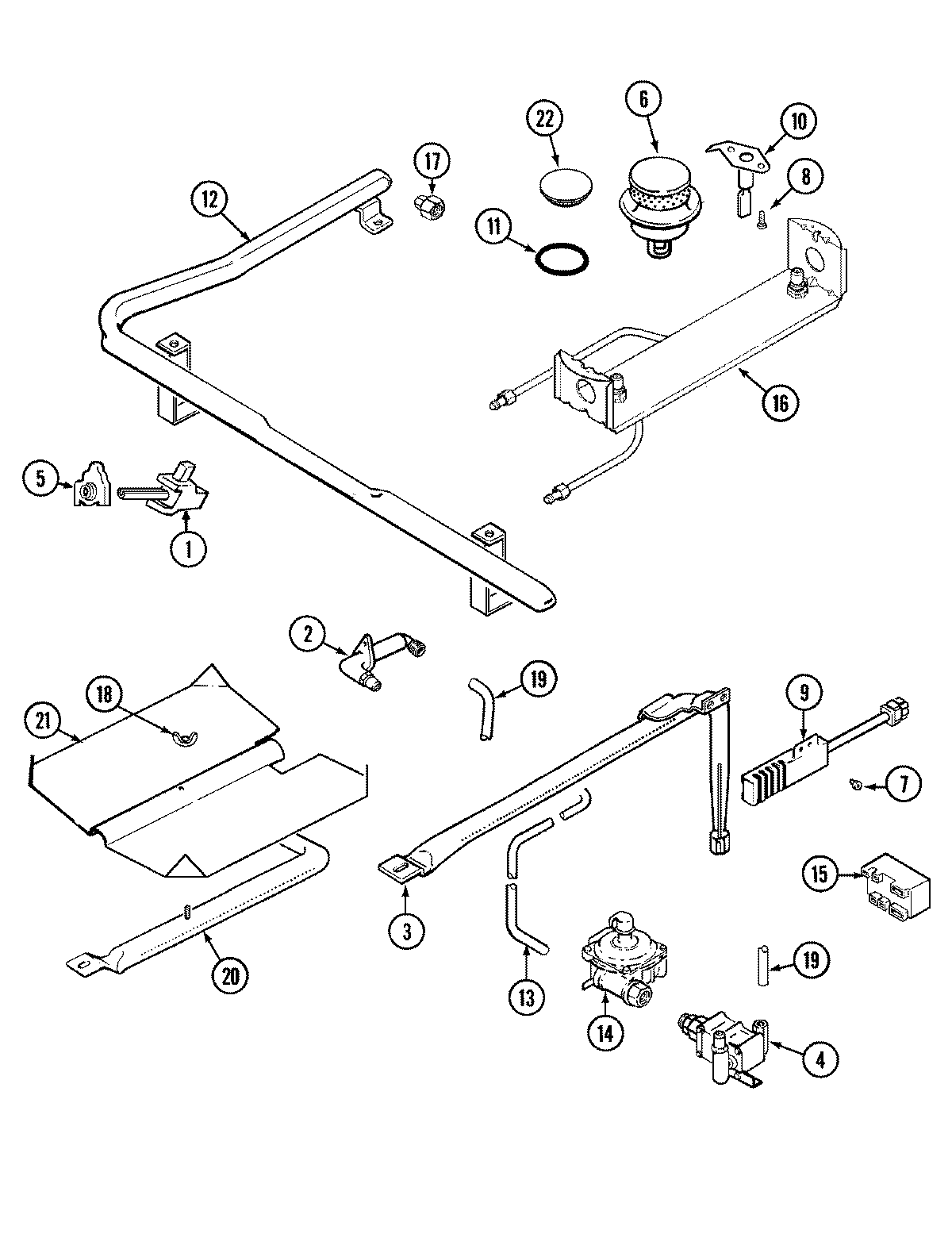

MGR5870ADQ 04 – GAS CONTROLS

Products

Position	Product
1	MAY 71003231
1	MAY 74004303
1	MAY 74003924
1	WP8273096 Whirlpool Screw
2	MAY 7507P088-60
2	MAY 74004307
3	MAY 74003960
3	MAY 3807F446-45
4	WP74006427 Whirlpool Oven Valve
5	MAY 74004986
5	WP7403P279-60 Whirlpool Igniter Switch
5	MAY 74002533
6	MAY 74003966
7	SCREW (10-24X5/16-NI)
8	MAY Y707113
9	MAY 7432P075-60
9	MAY 4005F421-45
10	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
12	SCREW
12	MAY 74003504
12	MAY 74005681
13	MAY 1555258K
13	MAY 74002553
14	WP74006429 Whirlpool Regulator
15	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
16	MAY 74003506
16	WP5787M052-60 Whirlpool Fitting
17	MAY 7103P130-60
18	NUT, WING
19	MAY 74002592
20	MAY 74004076
21	MAY 3601F217-47
22	MAY 71003054
23	MAY 71003540
23	WP74006297 Whirlpool Wire Connector
23	MAY 5120D019-60
24	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
