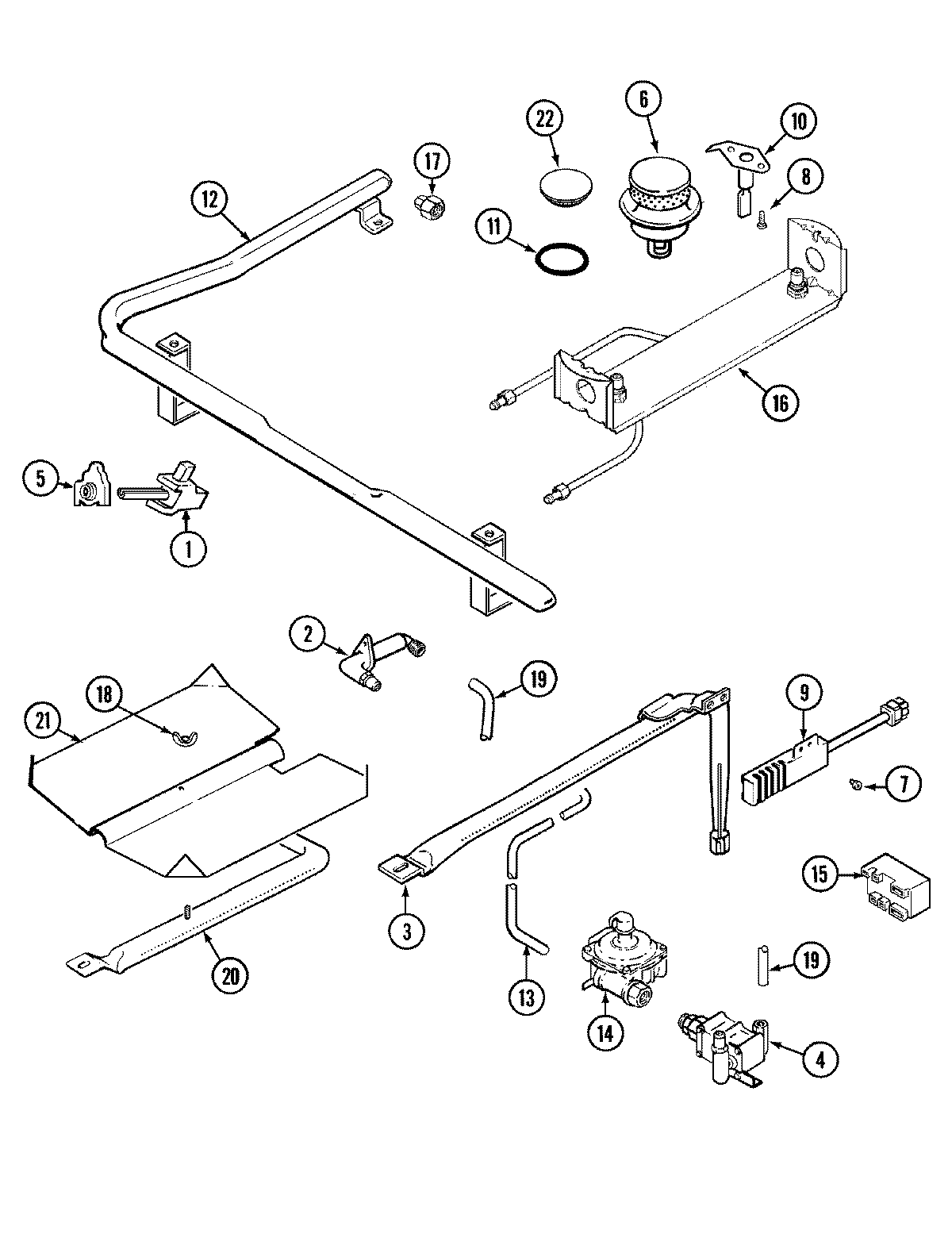

MGR5870ADW 04 – GAS CONTROLS

Products

Position	Product
1	MAY 7101P044-60
1	MAY 74004303
1	MAY 74003924
1	MAY 7502P251-60
1	MAY 71003231
1	WP8273096 Whirlpool Screw
2	MAY 3605F186-45
2	MAY 7507P088-60
3	MAY 3807F446-45
3	MAY 3403D043-45
4	WP74006427 Whirlpool Oven Valve
5	WP7403P279-60 Whirlpool Igniter Switch
5	MAY 74002533
6	MAY 3412D018-26
6	WP3412D024-26 Whirlpool Oven Surface Burner Head
7	WP3351614 Whirlpool Screw
8	MAY 7101P315-60
9	MAY 7432P076-60
9	MAY 4005F421-45
10	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
11	MAY 74002745
12	MAY 74003504
12	SCREW
12	MAY 74005681
13	MAY 74002553
13	MAY 1555258K
14	WP74006429 Whirlpool Regulator
15	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
15	MAY 74003288
16	WP5787M052-60 Whirlpool Fitting
16	MAY 74003506
17	MAY 7103P121-60
18	NUT, WING
19	MAY 74002592
20	MAY 3403D024-45
21	MAY 3601F217-47
22	MAY 71003040
23	MAY 5140D035-60
23	MAY 5120D019-60
23	MAY 5125A312-60
24	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
