MGR5870BDB 02 – CONTROL PANEL
Written by
in

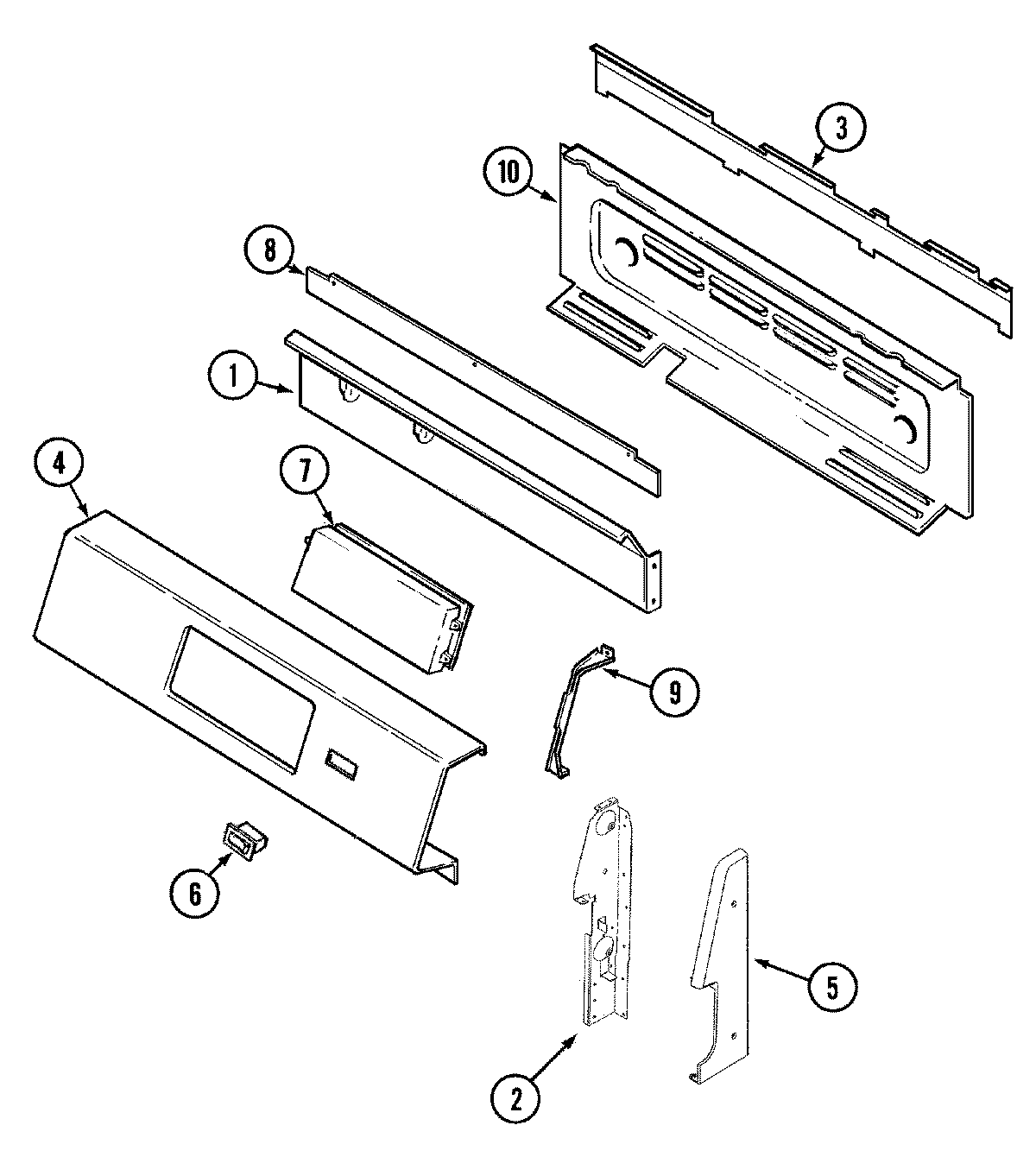

MGR5870BDB 02 – CONTROL PANEL
Products
Position
Product
1
MAY 74003488
2
MAY 74003489
2
MAY 74003490
3
MAY 74006376
3
MAY 74004551
4
MAY 74006492
5
MAY 74003606
5
MAY 74003605
5
WP98008545 Whirlpool Screw
5
MAY 74002432
6
MAY 74003363
7
MAY 74006212
8
MAY 8036P003-60
9
WPY706189 Whirlpool Stove Screw
9
MAY 74003627
10
MAY 74004963
10
SCREW (8BX3/8-NI)
11
MAY 12001323
12
MAY 74003992
12
MAY 74005915
14
MAY 71002782
15
MAY 16010161
←
