MGR5870BDQ 01 – BODY

MGR5870BDQ 01 – BODY

Written by

in

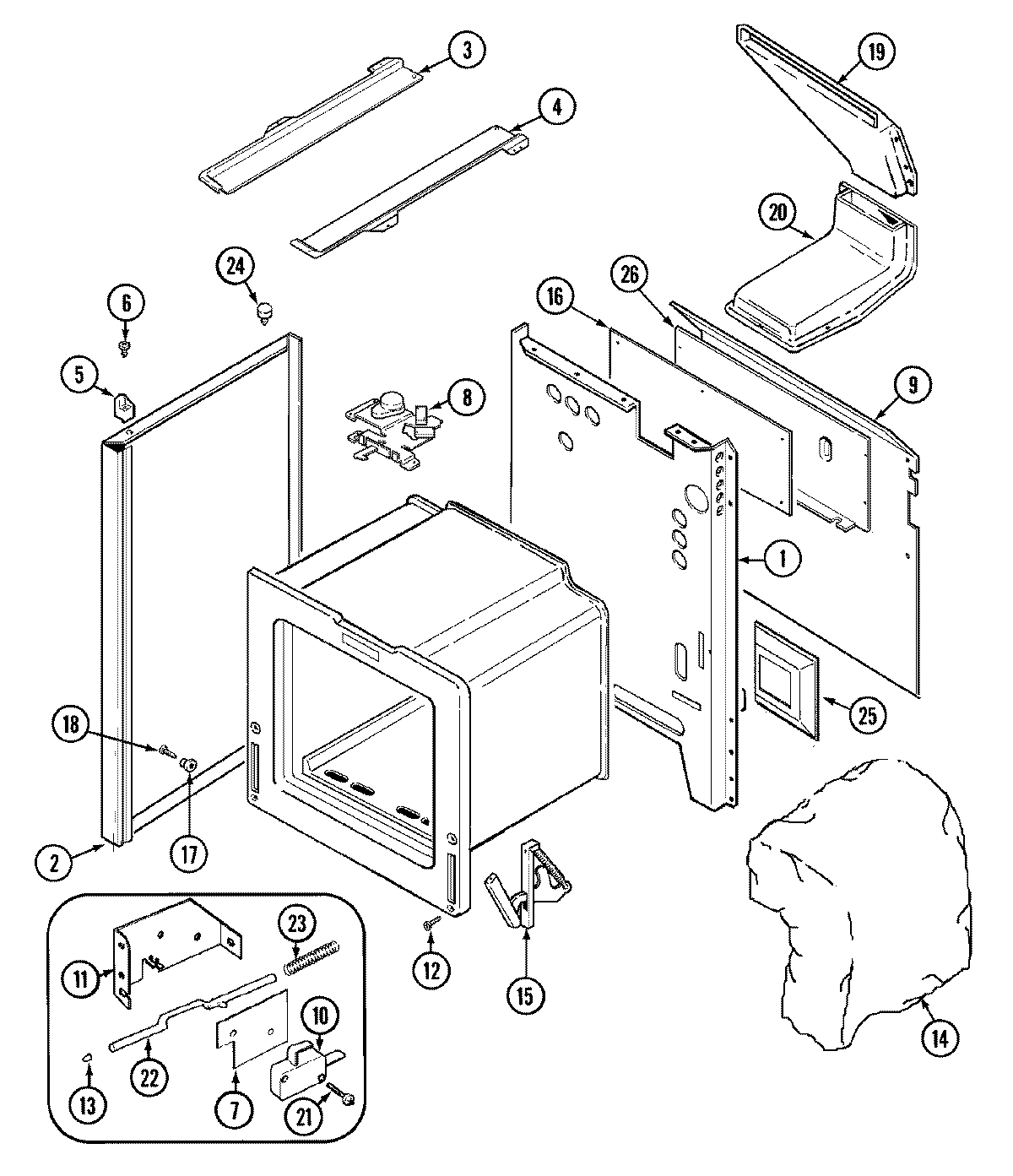

MGR5870BDQ 01 – BODY

Products

PositionProduct
1MAY 74006548
1GROMMET
1MAY 8008P021-60
1MAY 74005216
2TAPE, FOIL (3“ WIDE)
2MAY 74004965
3MAY 74002633
4MAY 74002632
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6MAY 7101P313-60
7MAY 74001872
8MAY 74006400
8MAY 74003560
8MAY 74005575
9MAY 74003321
10MAY 74001802
11BRACKET, SWITCH ACTUATOR
11WPY706189 Whirlpool Stove Screw
12SCREW (10-24X5/16-NI)
13MAY 74001631
14MAY 74005771
14MAY 74003385
14WP74010942 Whirlpool Insulation
15HINGE-OVEN DOOR
16MAY 3604F165-51
17MAY 8004P024-60
18MAY 74001449
18W11693756 Whirlpool Screw Assembly
19SCREW (8BX3/8-NI)
19MAY 4022W007-19
20MAY 74006420
21MAY 7101P330-60
22ROD, DOOR LIGHT SWITCH
24MAY 74001428
25MAY 74001801
26SCREW
26MAY 74002598
