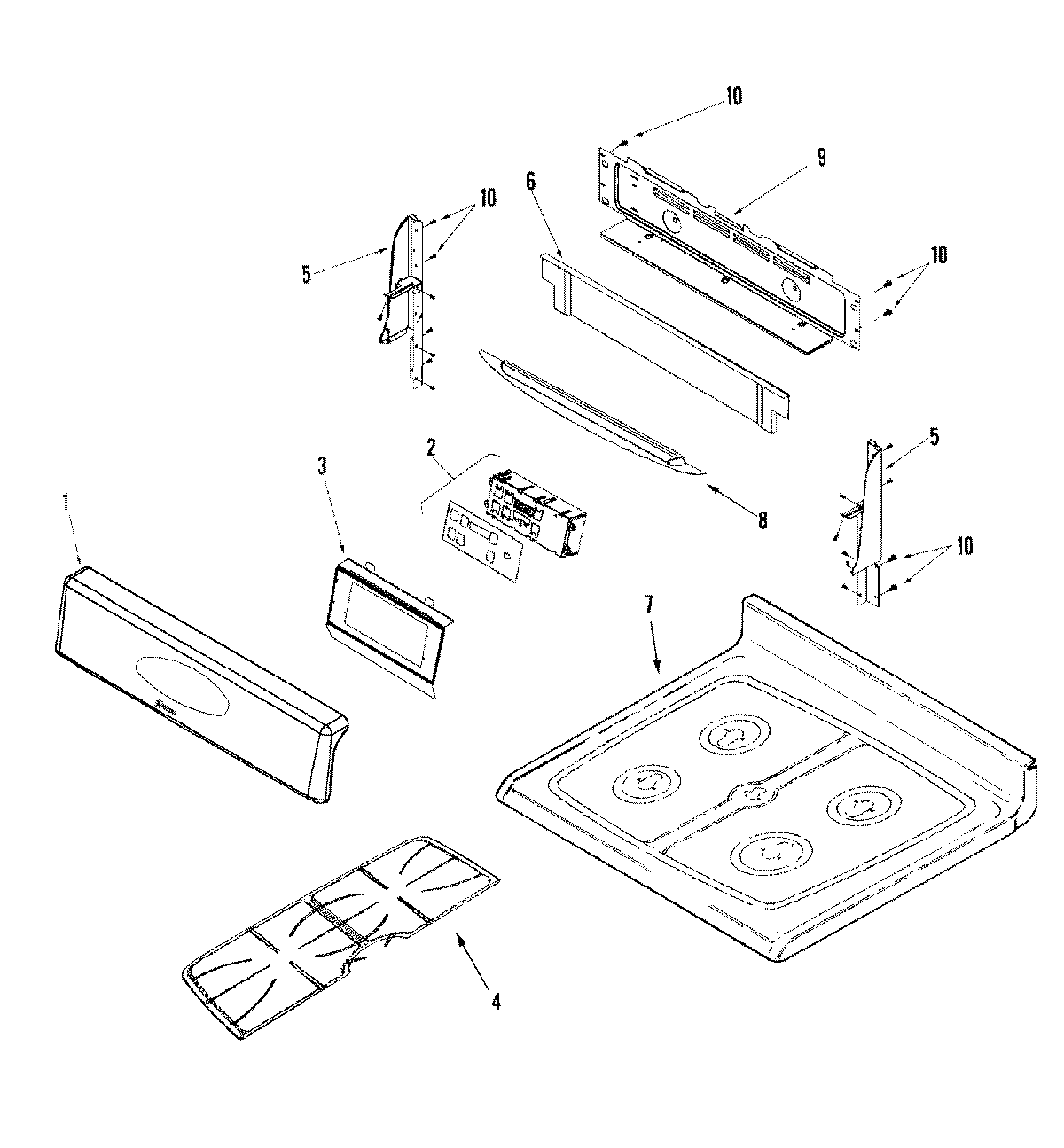

MGR5875QDB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	PANEL, BACKGUARD (BLK)
2	MAY 74008629
3	BRACKET, CLOCK
3	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
4	W10919249 Whirlpool Burner Grate Foot
4	MAY 74009085
4	MAY M0275597
5	End Cap (Left Black)
5	End Cap (Right Black)
6	MAY 74008725
6	MAY 74009205
7	MAY 74009086
8	SCREW, SHOULDER
8	MAY 74009202
8	MAY 74008891
9	MAY 74009093
9	MAY 74009053
9	COVER, BROIL ACCESS FITTING
9	SCREW (8BX3/8-NI)
10	SCREW
