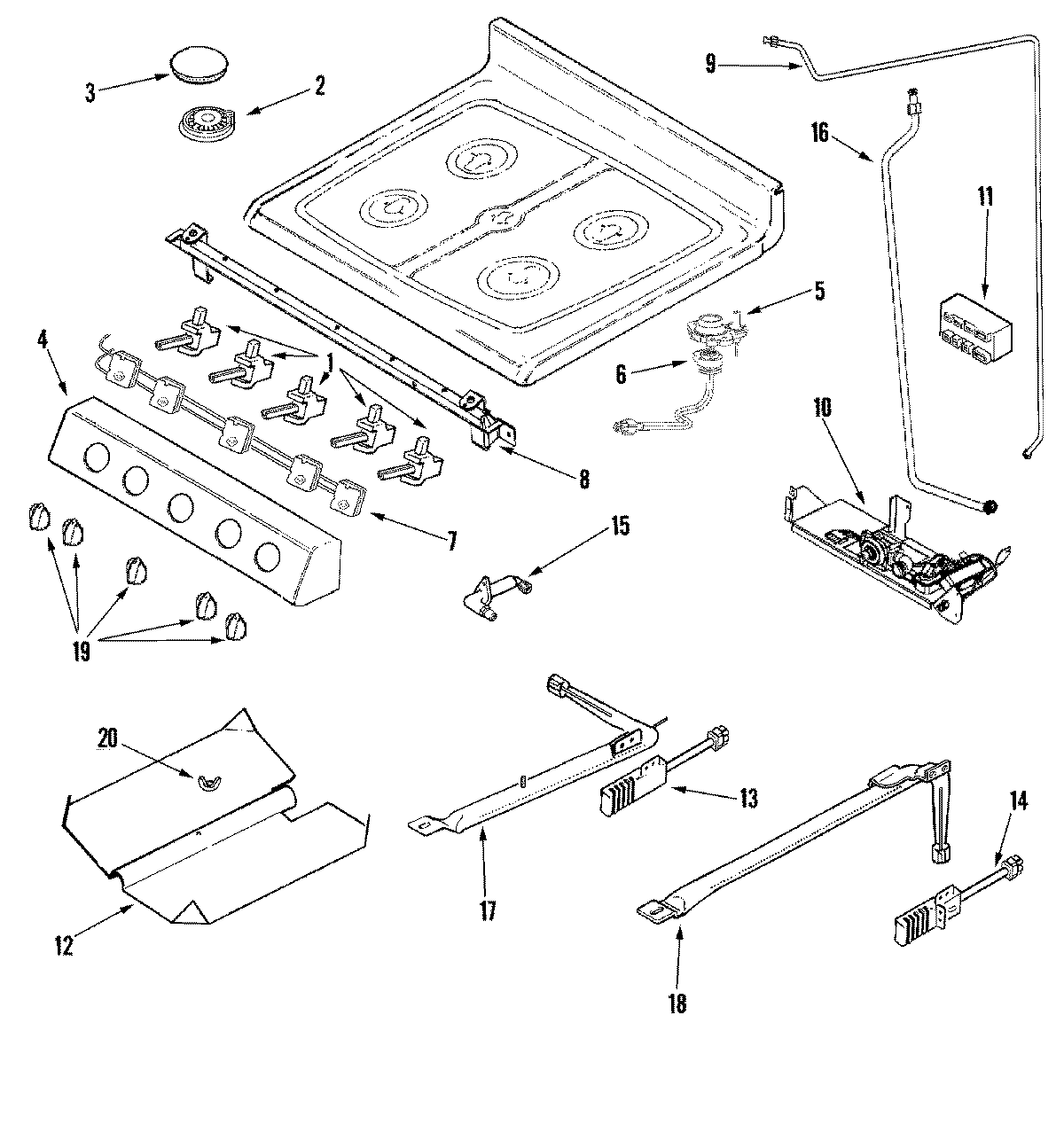

MGR5875QDB 05 – GAS CONTROLS

Products

Position	Product
1	MAY 12002235
1	VALVE, 16K (COPRECI)
1	VALVE, BURNER (5K COPRECI)
1	MAY 74008814
1	MAY 74008812
1	MAY 74008811
1	MAY 74008810
1	MAY 12002236
1	WP74009857 Whirlpool Screw
1	VALVE, 12K (COPRECI)
2	BASE, BURNER(9.2K)
2	WP400021-1 Whirlpool Screw
2	WPW10406878 Whirlpool Burner Base (16K)
2	WPW10406243 Whirlpool Burner Head Auxiliary 6K
2	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
3	WP74007925 Whirlpool Burner Cap
3	WPW10154101 Whirlpool Burner Cap
3	WP3191898 Whirlpool Surface Burner Cap Black
3	WP74007415 Whirlpool Burner Cap
4	MAY 74011119
4	MAY 74009090
4	W11693756 Whirlpool Screw Assembly
5	WP74009958 Whirlpool Spark Electrode Assembly
6	ORIFICE HOLDER/TUB ASSY (RR)
6	MAY 74009103
6	MAY 74009102
6	MAY 74009101
6	WP74009099 Whirlpool Orifice Holder
6	MAY 7527P125-60
6	W10154209 Whirlpool Orifice Holder
7	MAY 74008816
7	MAY 74009392
7	WP74010753 Whirlpool Harness Assembly
8	MAY 74008815
9	TUBING, SUPPLY
9	MAY 71003231
10	MAY 74008808
11	74009098 Whirlpool Spark Module
12	MAY 74008819
13	74007498 Whirlpool Range Flat Igniter
14	SCREW (10-24X5/16-NI)
14	WP7432P136-60 Whirlpool Oven Igniter
15	74008818 Whirlpool Broil Burner Fitting
15	SCREW
16	74008830 Whirlpool Oven Broil Tubing
17	BURNER, BROIL
18	MAY 31945701
19	MAY 74009094
20	NUT, WING
