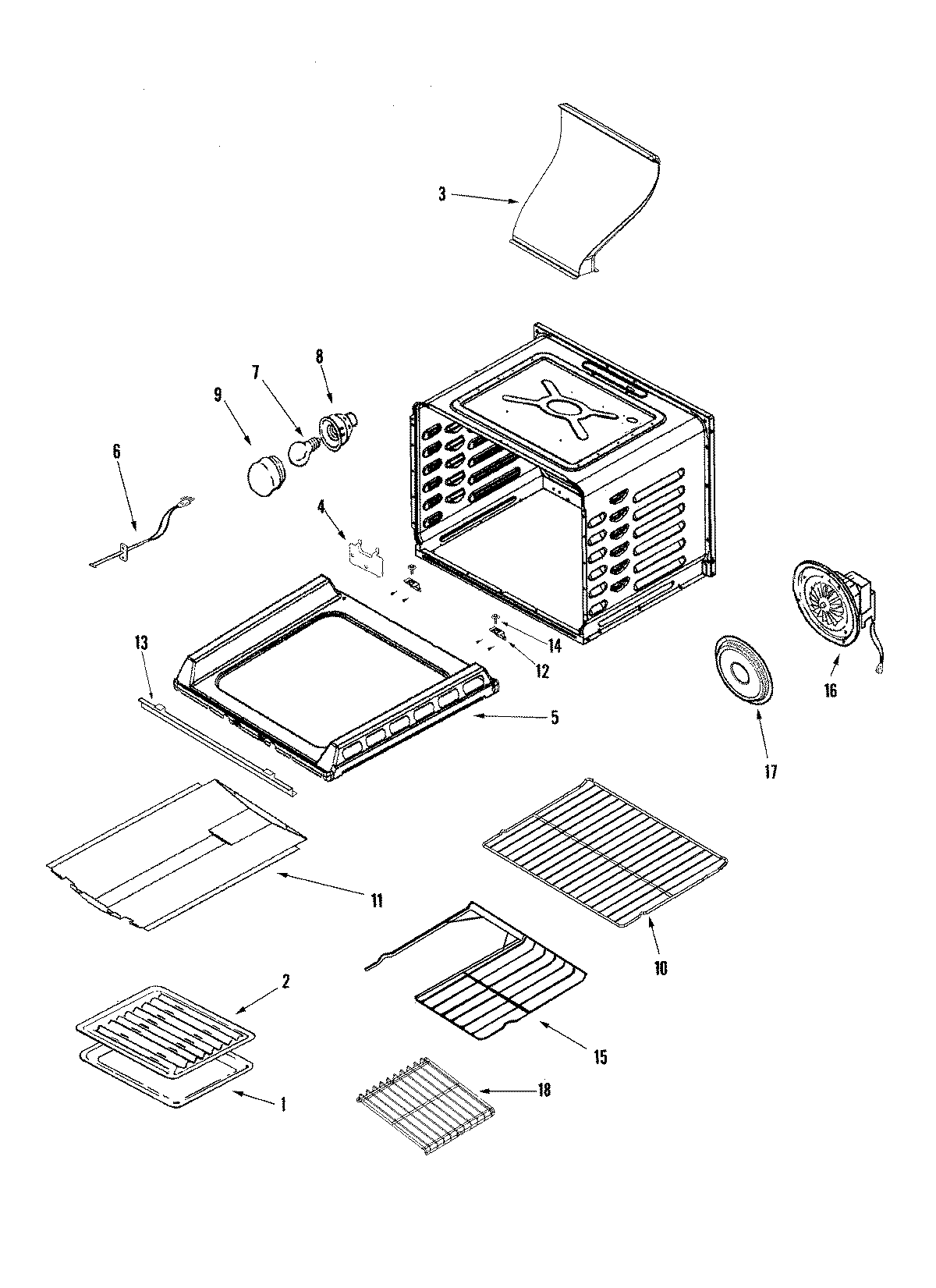

MGR5875QDQ 02 – CAVITY

Products

Position	Product
1	MAY Y3401F02019
2	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2	MAY Y3413F01619
3	MAY 74008817
4	MAY 4005F421-45
5	WPW10211368 Whirlpool Oven Bottom
6	12001655 Whirlpool Oven Sensor
7	MAY Y707319
8	WP74011278 Whirlpool Light
9	MAY 71001867
10	WP74008763 Whirlpool Oven Rack
11	BAFFLE, BAKE BURNER
12	SUPPORT, OVEN BOTTOM (REAR)
13	SUPPORT, OVEN BOTTOM (FRONT)
14	WP74003976 Whirlpool Screw
15	MAY 74008924
16	WP7427P104-60 Whirlpool Fan Blower
17	MAY 71001394
17	COVER, CONVECT
18	INSERT, HALF RACK 30“
