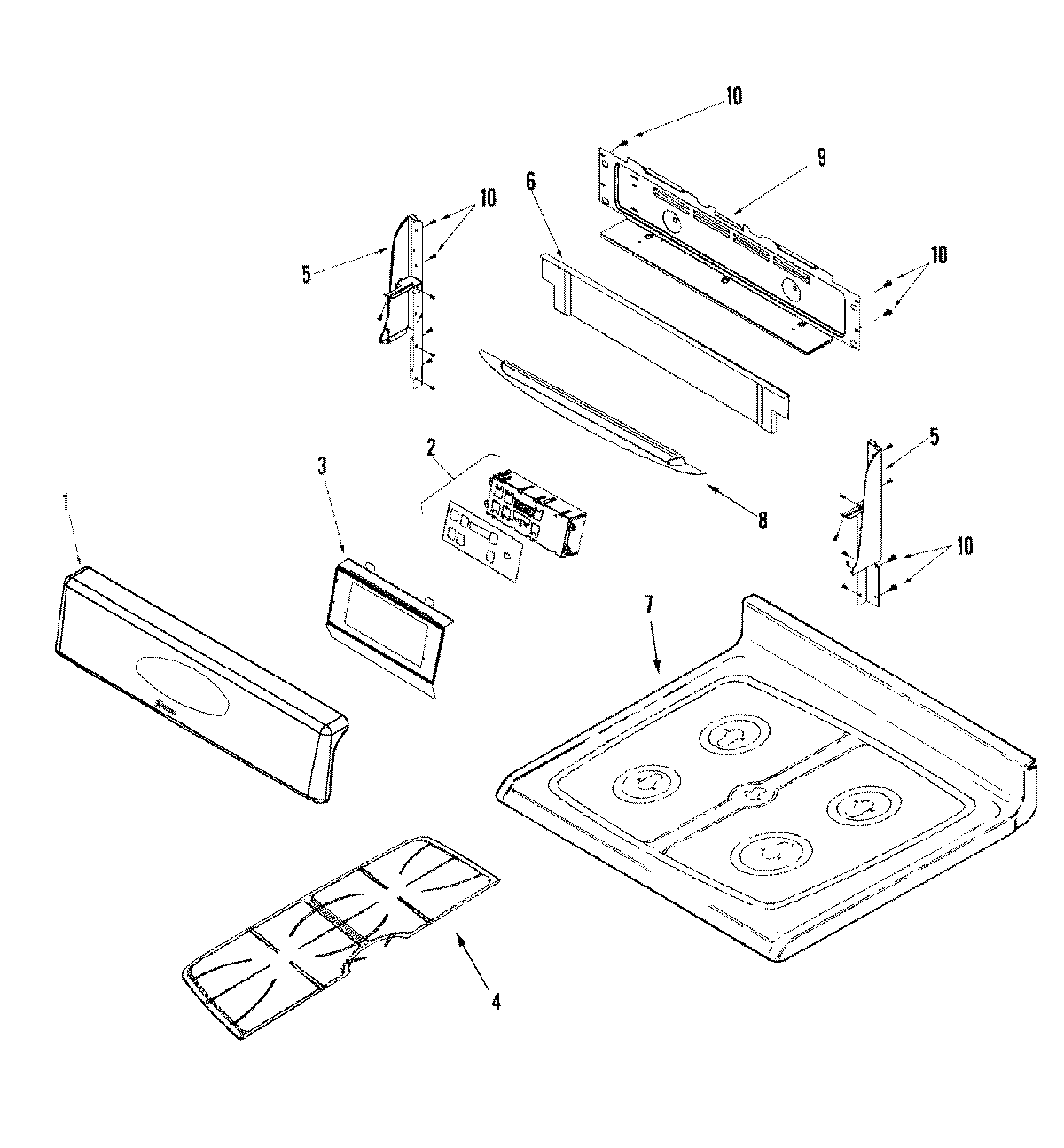

MGR5875QDQ 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009075
2MAY 74008628
3BRACKET, CLOCK
3NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
4W10919249 Whirlpool Burner Grate Foot
4MAY 74009084
4MAY M0275597
5END CAP (LT-BSQ)
5END CAP (RT-BSQ)
6MAY 74009207
6MAY 74008727
7MAY 74009088
8SHIELD, HEAT VISOR (BSQ)
8SCREW, SHOULDER
8MAY 74008729
9MAY 74009093
9MAY 74009053
9COVER, BROIL ACCESS FITTING
9SCREW (8BX3/8-NI)
10SCREW
