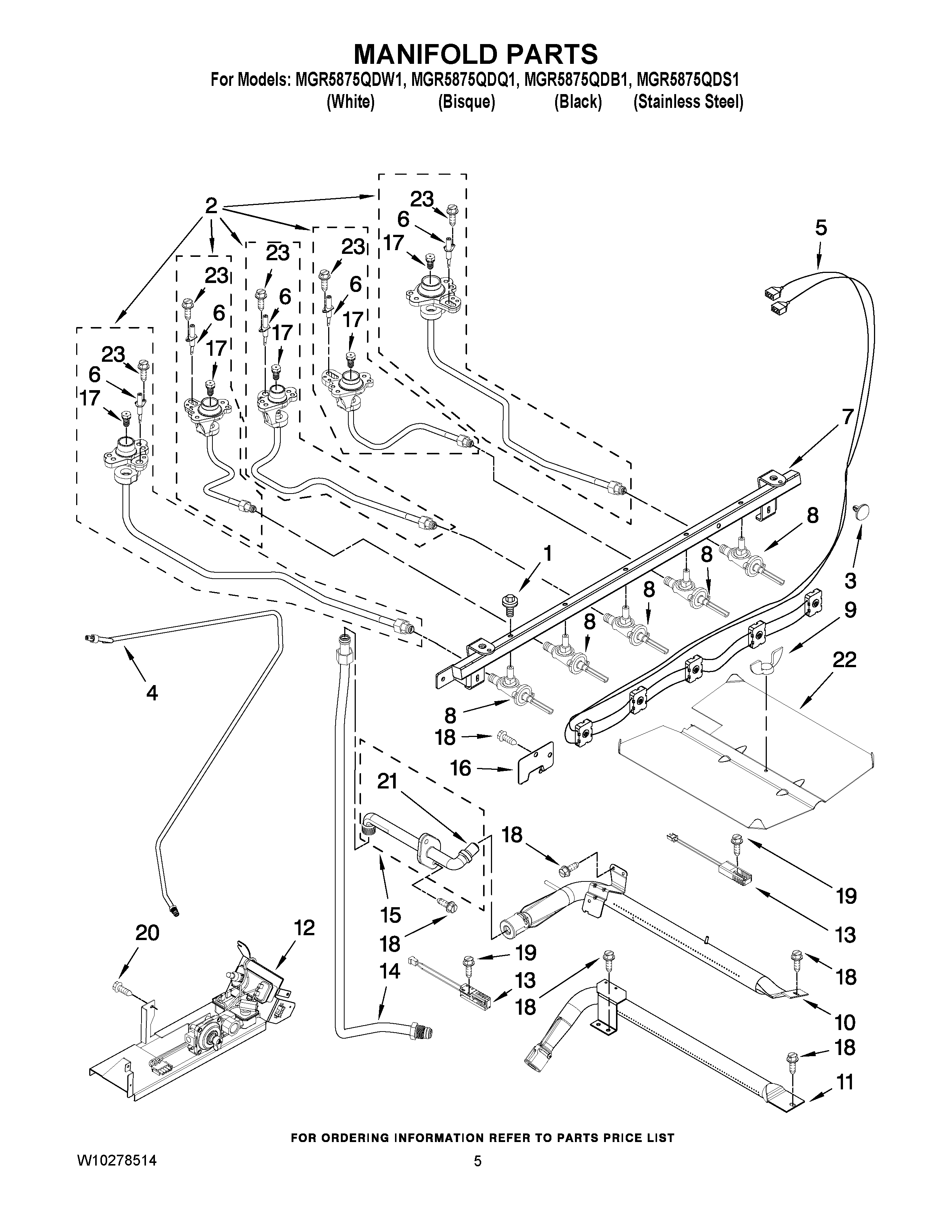

MGR5875QDQ1 04 – MANIFOLD PARTS

Products

PositionProduct
NISPUDS, LP GAS (KIT OF 5)
1MAY 7101P681-60
2MAY 7527P095-60
2MAY 7527P124-60
2ORIFICE HOLDER/TUBE ASY (LF)
2ORIFICE HOLDER/TUBE ASY (CTR)
2MAY 7527P125-60
3MAY 8010P149-60
4MAY 7506P361-60
5MAY 7403P983-60
6IGNITOR, TOP BURNER
7MAY 7513P524-60
8VALVE (CENTER)
8VALVE (LR,LF,RR)
8MAY 7502P501-60
9NUT, WING
10MAY W10160904
11MAY 7505P331-60
12MAY 7501P233-60
13MAY 7432P136-60
13IGNITOR, OVEN
14MAY 7506P368-60
15MAY 7507P357-60
16MAY 4005F421-45
17ORIFICE, BURNER (LF,RR)
17ORIFICE, BURNER (LEFT REAR)
17MAY 7509P123-60
17ORIFICE, BURNER (RIGHT FRONT)
18SCREW
19SCREW
20SCREW, GROUND (GRN)
21MAY 7507P366-60
22MAY 3601P336-45
23MAY 8273062
