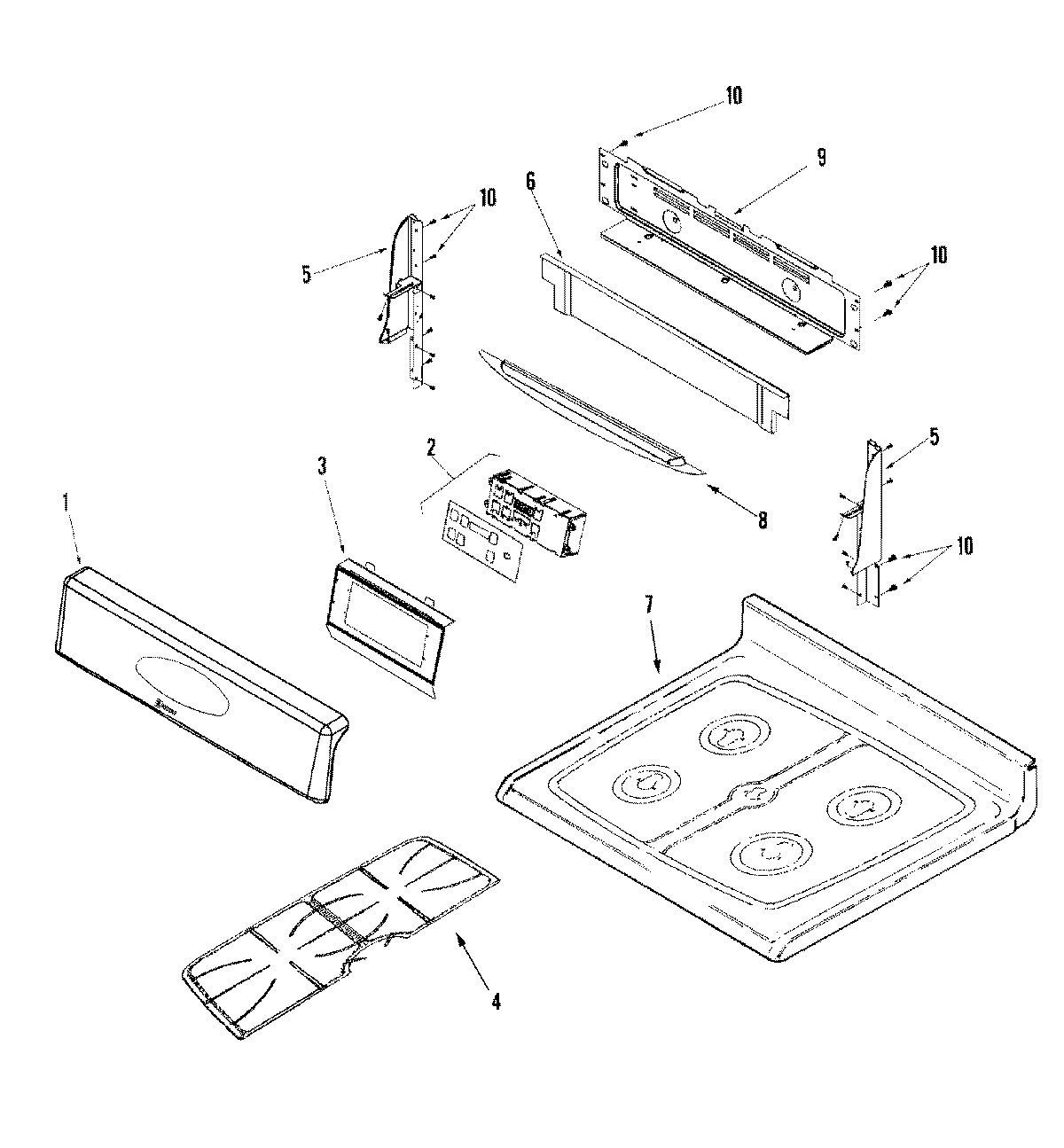

MGR5875QDW 03 – CONTROL PANEL/TOP ASSEMBLY

MGR5875QDW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGR5875QDW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1PANEL, BACKGUARD (WHT)
2MAY 74008627
3NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3BRACKET, CLOCK
4MAY M0275597
4MAY 74009083
4W10919249 Whirlpool Burner Grate Foot
5Latch Assembly
5END CAP (RT-WHT)
6MAY 74009206
6MAY 74008726
7TOP, MAIN 5 BURNER (WHT)
8SCREW, SHOULDER
8MAY 74008728
8MAY 74009203
9MAY 74009093
9MAY 74009053
9COVER, BROIL ACCESS FITTING
9SCREW (8BX3/8-NI)
10SCREW
