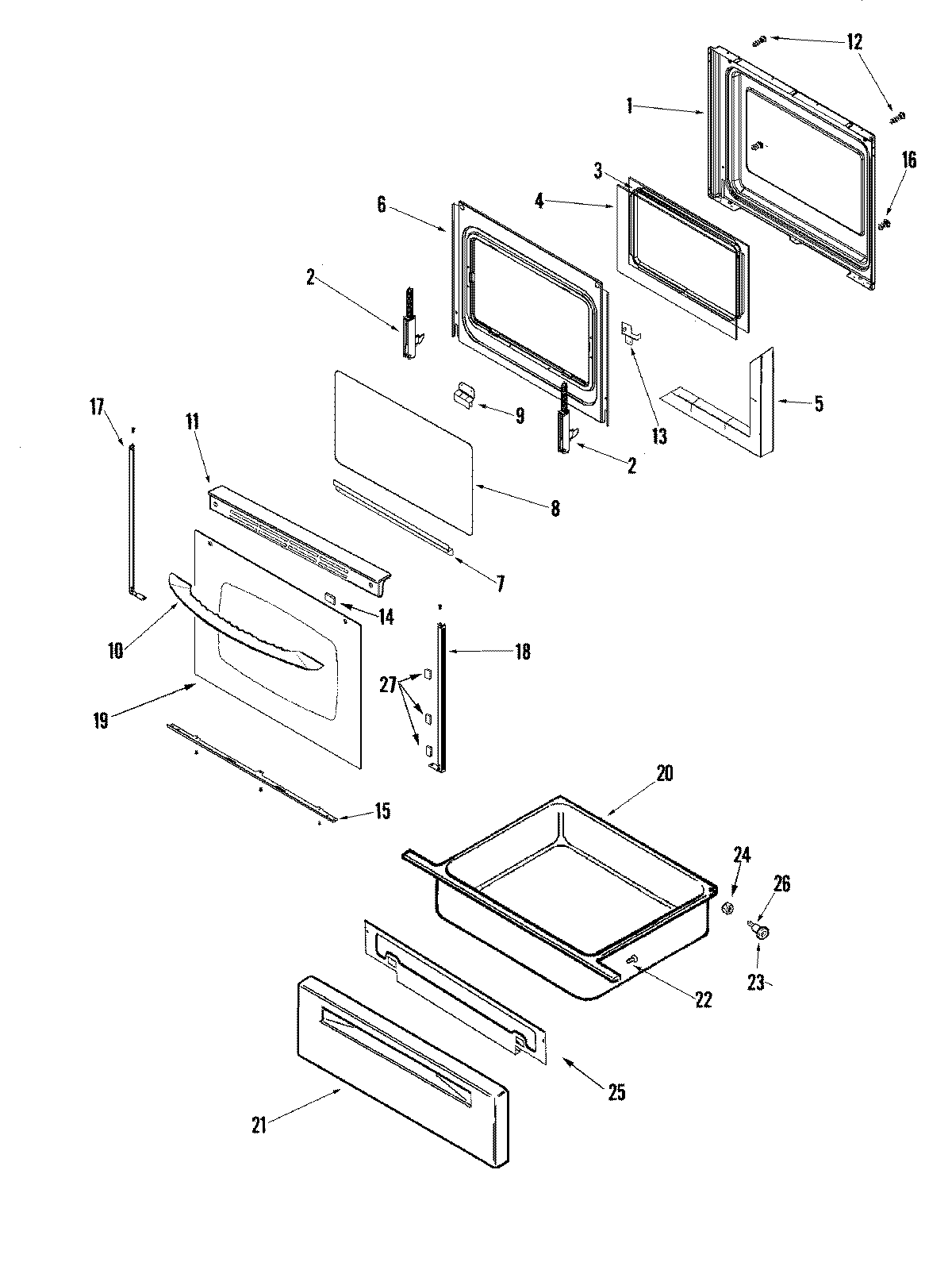

MGR5875QDW 04 – DOOR/DRAWER

Products

Position	Product
1	MAY 74008926
2	74010546 Whirlpool Range Oven Door Hinge
3	FRAME, GLASS
4	74003645 Whirlpool Range Oven Door Inner Glass
5	INSULATION, OVEN DOOR
6	MAY 74008744
7	MAY 74008745
8	GLASS, DOOR
9	Trim, Door Top (Black)
10	WP74011768 Whirlpool Door Handle
11	WP98008544 Whirlpool Screw Assembly
11	Trim, Door Top (White)
12	WP74006515 Whirlpool Washer Screw
13	MAY 74008749
13	MAY 74008750
14	WP74004224 Whirlpool Tape
15	WP3608F092-71 Whirlpool Bottom Trim
16	SCREW (10-24X5/16-NI)
17	MAY 74008753
18	MAY 74008751
18	MAY 74010561
19	Glass, Door (White)
20	WP3405F037-80 Whirlpool Utility Drawer
21	PANEL, DRAWER (WHT)
22	SCREW
23	WP74004078 Whirlpool Door Roller
24	WP488130 Whirlpool Air Conditioner Nut
25	MAY 74009026
26	SHAFT, STORAGE DRAWER ROLLER
27	WP74009014 Whirlpool Double Tape
