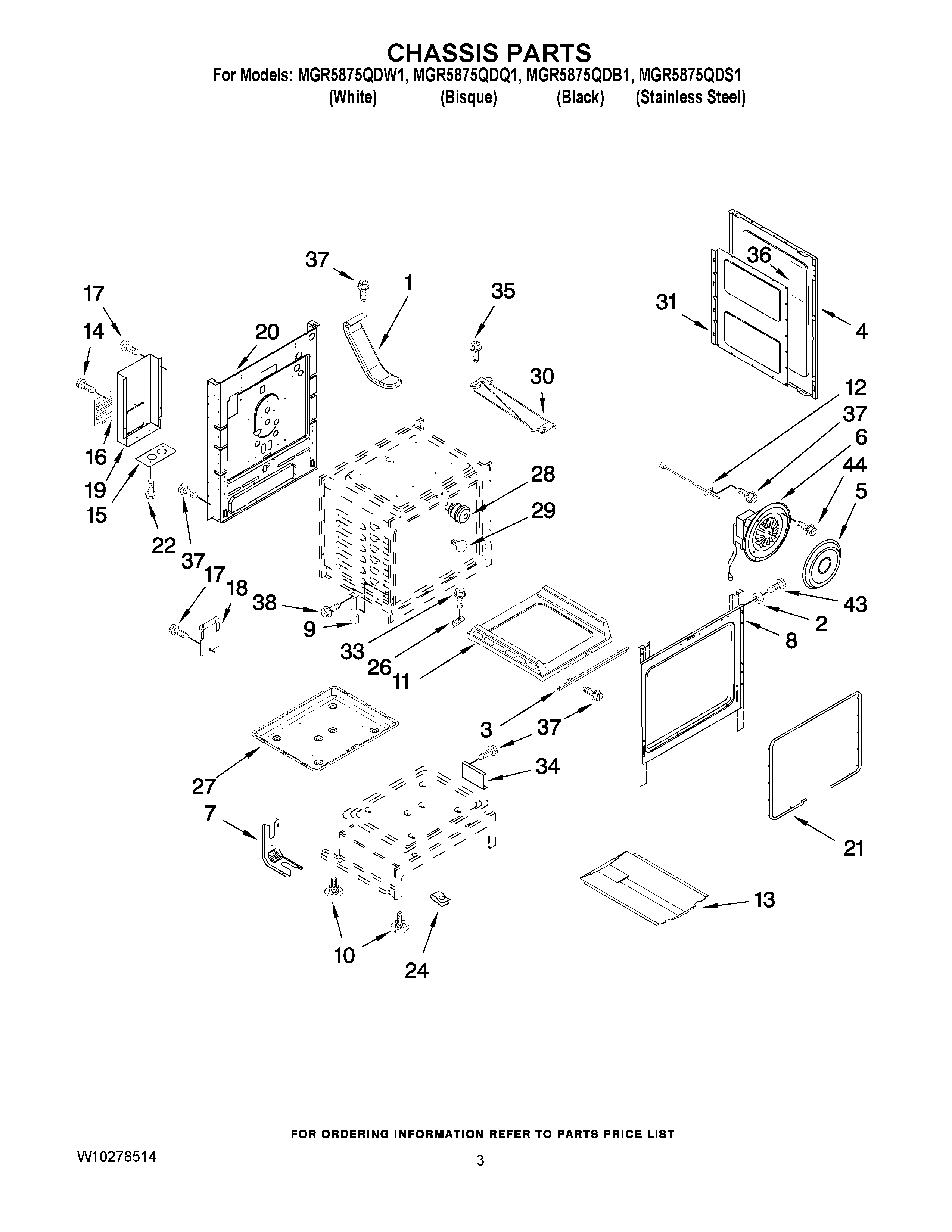

MGR5875QDW1 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P424-60
NI	INSULATION
NI	MAY 7002P492-60
NI	STRAP, INSULATION
1	MAY 8026P080-60
2	MAY 8010P148-60
3	MAY 3807P680-45
4	MAY 2618F172-58
4	Panel, Side (Bisque)
4	MAY 2618F172-69
5	MAY 3605F305-19
6	MAY 7427P104-60
7	BRACKET, ANTI-TIP
8	LINER (NOT A SERVICEABLE PART)
9	MAY 7106P125-60
10	Leg, Leveling
11	MAY 2205F053-19
12	Sensor, Oven
13	MAY 3601P356-45
14	SCREW
15	MAY 3605P146-51
16	MAY 4005P703-51
17	MAY 3196160
18	MAY 4005F753-45
19	BOTTOM, WIRE COVER
20	MAY 4002F347-51
21	MAY W10162385
22	MAY 7101P336-60
24	CLIP
26	MAY 3801P798-51
27	MAY 3401F082-45
28	MAY 7407P181-60
29	RANGE ONLY 40W 120V APPL BULB
30	MAY 8002P104-60
31	MAY 3804F316-51
33	MAY 7101P500-60
34	MAY 3801P822-45
35	SCREW
36	MAY 7002P494-60
37	MAY 7101P388-60
38	SCREW (10-24X5/16-NI)
43	MAY 7101P618-60
44	MAY 7101P385-60
