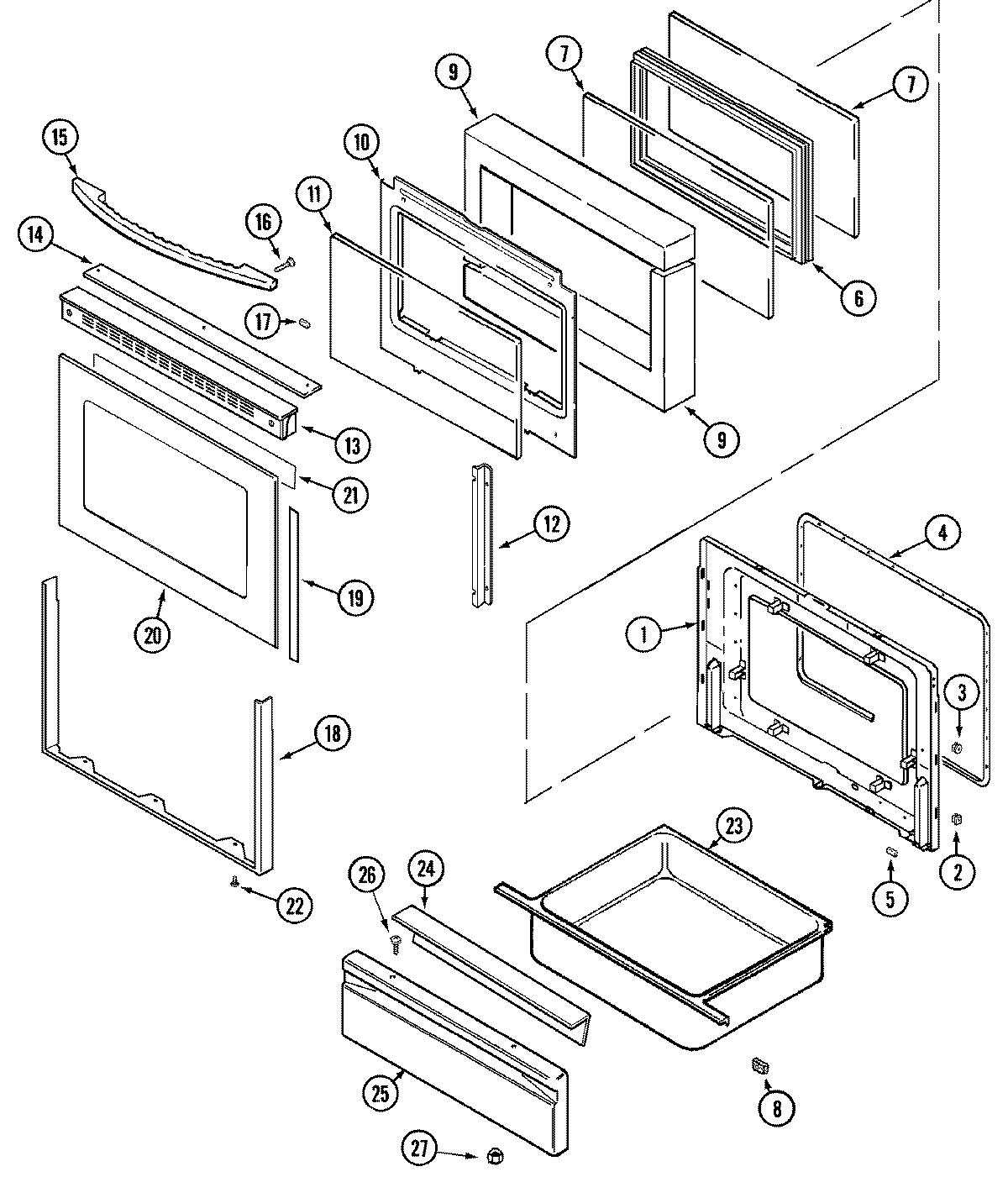

MGR5880BDB 03 – DOOR/WARMING DRAWER

MGR5880BDB 03 – DOOR/WARMING DRAWER

Written by

in

MGR5880BDB 03 – DOOR/WARMING DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8WP74005546 Whirlpool RU Spacer
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13MAY 74006402
15MAY 74006286
16WP74006515 Whirlpool Washer Screw
17WP74004224 Whirlpool Tape
18WP98008545 Whirlpool Screw
18MAY 74004324
19MAY 74003660
20MAY 74006406
21TAPE, FOIL 29“ X 2“
22SCREW
23MAY 74006595
23MAY 74008334
23WP3801F813-51 Whirlpool Bracket
24MAY 74006593
25PANEL, DRAWER (BLK)
26WP7101P072-60 Whirlpool Screw
27WPW10131078 Whirlpool Nut Assembly
