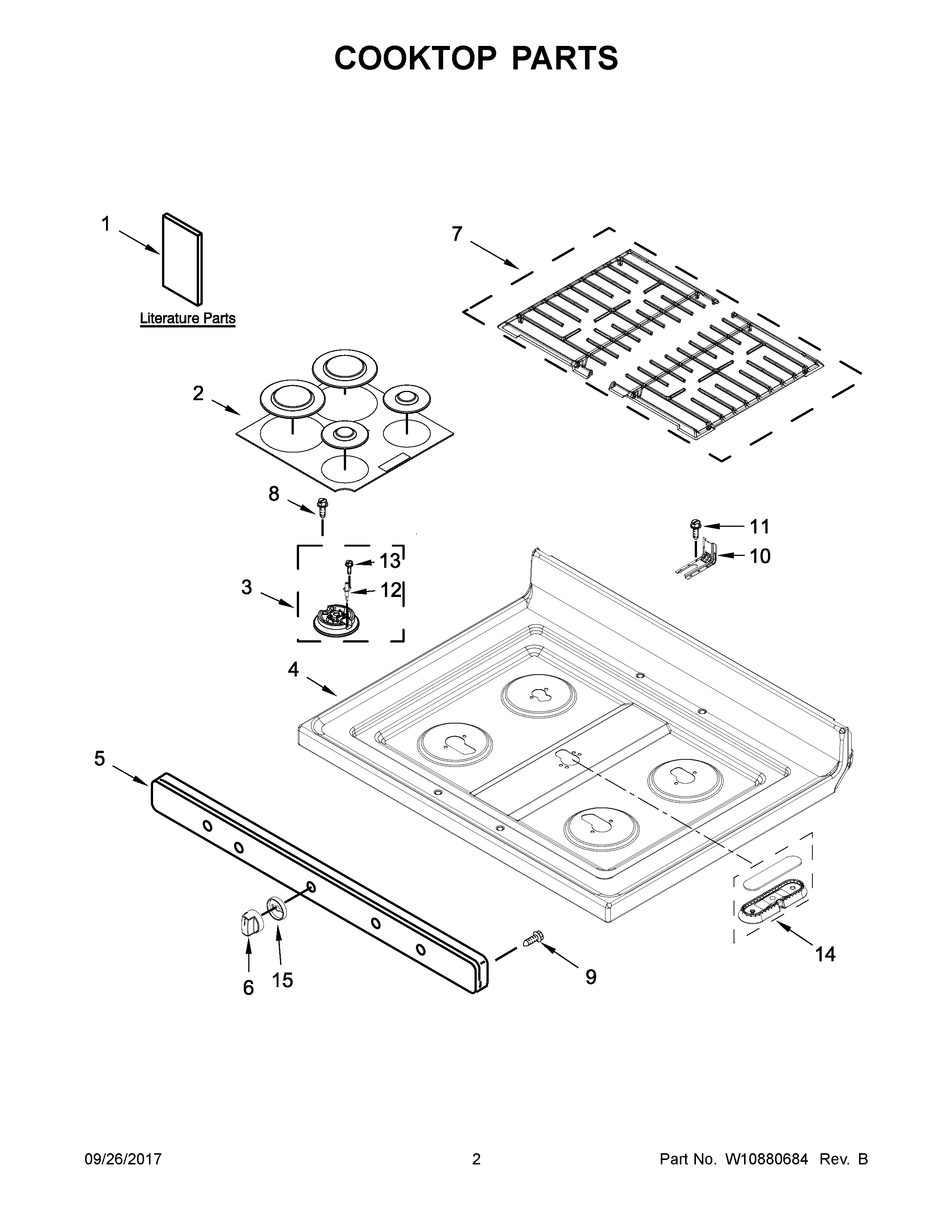

MGR6600FB0 02 – COOKTOP PARTSadmin2025-04-26T09:14:31+00:00MGR6600FB0 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | CLIP, GAS WIRING |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | HARNESS, IGNITER (INCLUDES SWITCHES) |
| NI | CLIP, WIRE |
| NI | CLIP, HARNESS |
| NI | CLIP, WIRE |
| NI | HARNESS, MAIN |
| NI | HARNESS, COOKTOP |
| NI | HARNESS, BAKE/BROIL |
| 1 | INSTRUCTIONS, INSTALLATION |
| 1C | DIAGRAM, WIRING |
| 1A | GUIDE, USE AND CARE |
| 1E | TIPS, SAFE COOKING (FRENCH) |
| 1B | SHEET, TECH |
| 1D | TIPS, SAFE COOKING (ENGLISH) |
| 2 | KIT, BURNER CAP (BLACK (SET OF 4)) |
| 3A | ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER) |
| 3 | ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT) |
| 3B | ASSEMBLY, BURNER (6K) (RIGHT REAR) |
| 4 | COOKTOP (BLACK) |
| 4A | COOKTOP (WHITE) |
| 5B | PANEL, MANIFOLD (STAINLESS) |
| 5 | PANEL, MANIFOLD (BLACK) |
| 5A | PANEL, MANIFOLD (WHITE) |
| 6A | KNOB, CONTROL (WHITE) |
| 6 | KNOB, CONTROL (BLACK) |
| 6B | KNOB, CONTROL (STAINLESS) |
| 7 | KIT, GRATE (BLACK) |
| 8 | SCREW |
| 9 | MAY 3196557 |
| 10 | BRACKET, ANTI-TIP |
| 11 | SCREW, ANTI-TIP KIT |
| 12 | ELECTRODE (RIGHT REAR) |
| 13 | MAY 8273062 |
| 14 | SPREADER, FLAME |
| 15 | BEZEL (BLACK) |
| 15B | BEZEL (STAINLESS) |
| 15A | BEZEL (WHITE) |
