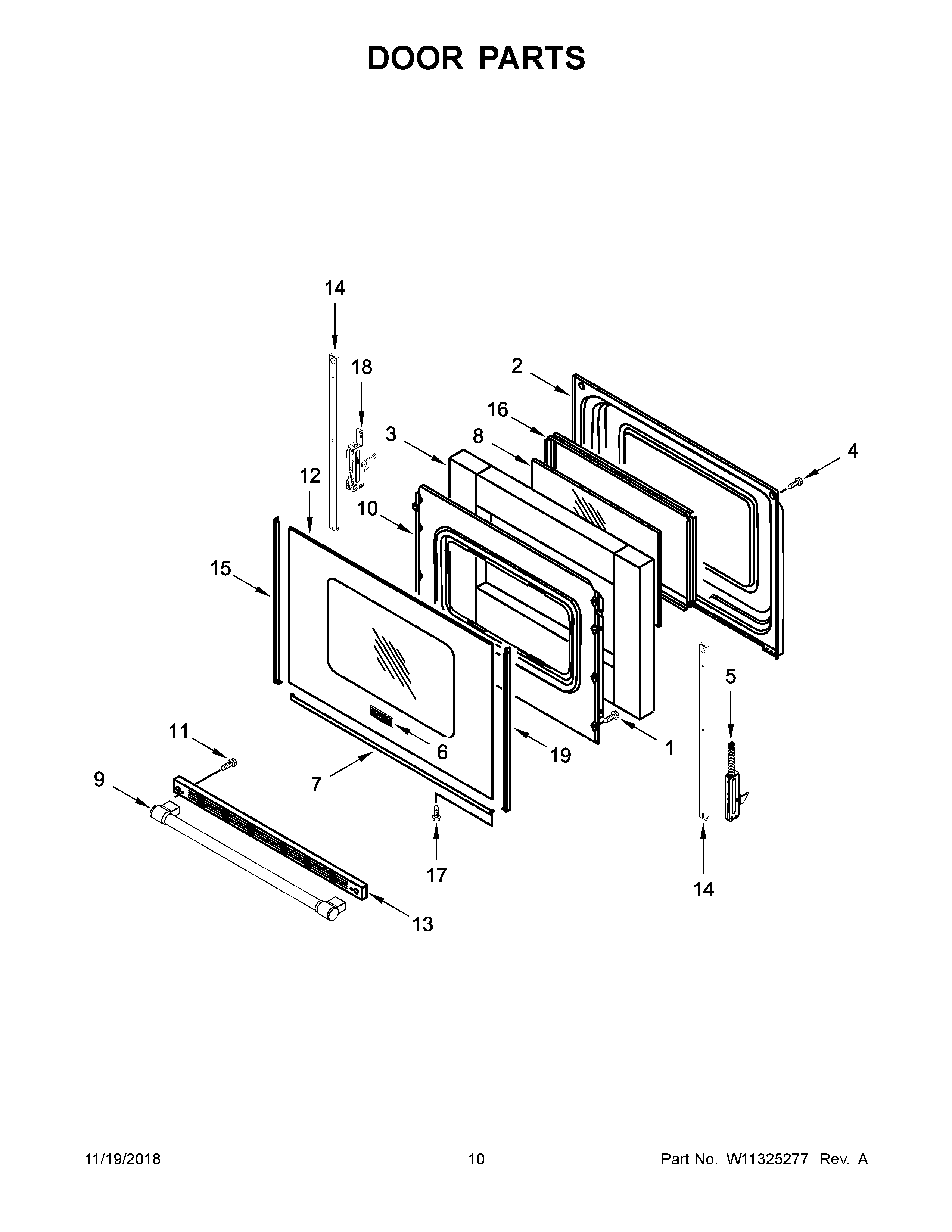

MGR6600FB1 06 – DOOR PARTS

MGR6600FB1 06 – DOOR PARTS

Written by

in

MGR6600FB1 06 – DOOR PARTS

Products

Position	Product
1	SCREW
2	LINER, DOOR
3	INSULATION, DOOR STRIP
4	SCREW
5	HINGE, DOOR (PASSIVE)
6	BADGE
7	TRIM, LOWER (BLACK)
7A	TRIM, LOWER (WHITE)
8	GLASS, INNER
9	HANDLE, OVEN DOOR (BLACK)
9A	HANDLE, OVEN DOOR (WHITE)
10	RETAINER, INSULATION
11	SCREW
12A	GLASS, OUTER DOOR (WHITE)
12	GLASS, OUTER DOOR (BLACK)
13	MAY W10875233
13A	MAY W10875232
14	STRAP, DOOR
15A	TRIM, SIDE (WHITE (LEFT))
15	TRIM, SIDE (BLACK (LEFT))
16	FRAME, GLASS
17	SCREW
18	HINGE, ACTIVE
19A	TRIM, SIDE (WHITE (RIGHT))
19	TRIM, SIDE (BLACK (RIGHT))
