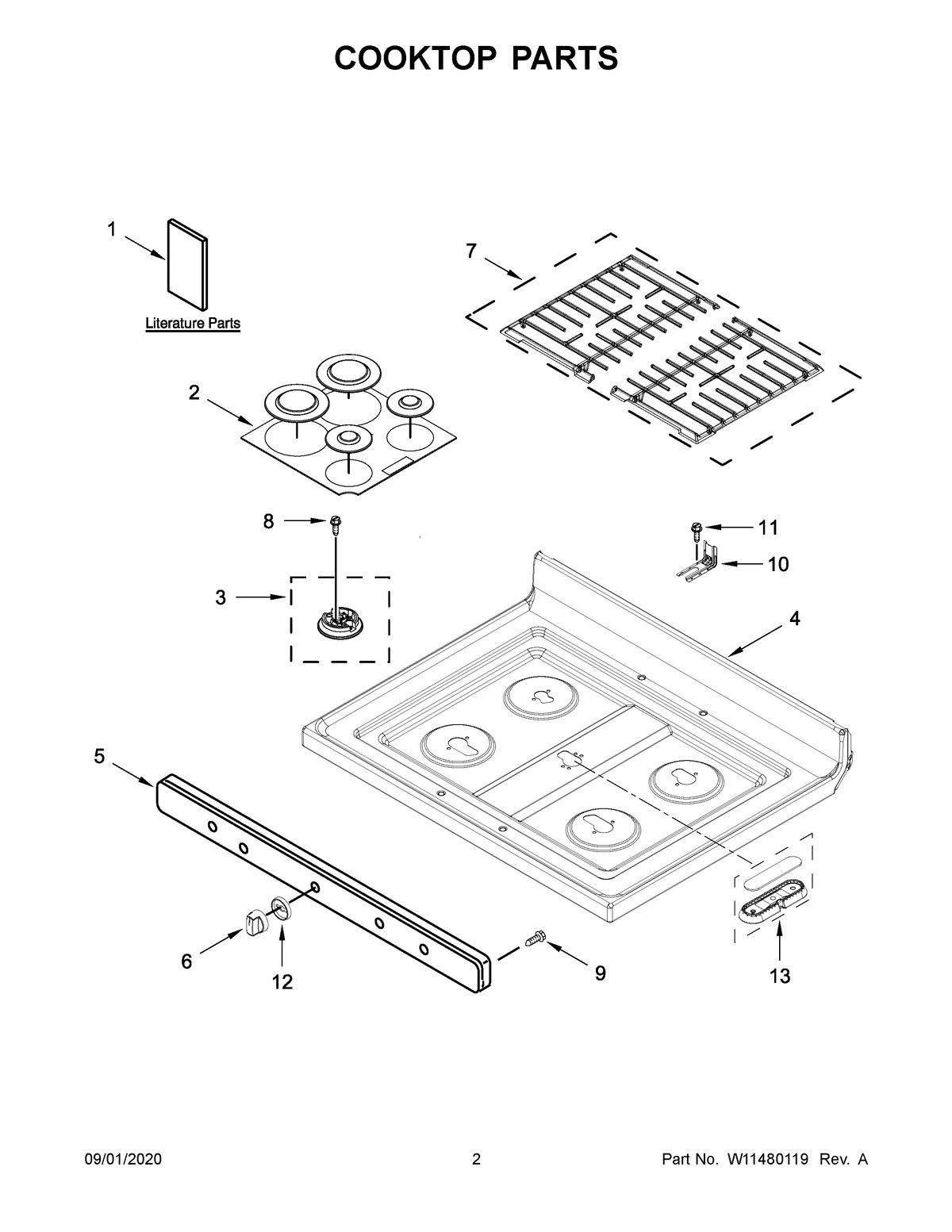

MGR6600FB2 02 – COOKTOP PARTS

Products

Position	Product
NI	CLIP, GAS WIRING
NI	HARNESS, BAKE/BROIL
NI	HARNESS, IGNITER (INCLUDES SWITCHES)
NI	HARNESS, MAIN
NI	LINER (NOT A SERVICEABLE PART)
NI	CLIP, WIRE
NI	CLIP, WIRE
NI	CLIP, HARNESS
1B	SHEET, TECH
1	INSTALLATION INSTRUCTIONS
1C	DIAGRAM, WIRING
1A	USE AND CARE GUIDE
2	KIT, BURNER CAP (BLACK (SET OF 4))
3A	SPREADER, FLAME (LEFT REAR)
3	SPREADER, FLAME (LEFT FRONT & RIGHT FRONT)
3B	SPREADER, FLAME (RIGHT REAR)
4A	MAY W11418084
4	COOKTOP (BLACK)
5	PANEL, MANIFOLD (BLACK)
5A	PANEL, MANIFOLD (WHITE)
6	KNOB, CONTROL (BLACK)
6A	KNOB, CONTROL (WHITE)
7	KIT, GRATE (BLACK)
8	SCREW
9	MAY 3196557
10	ANTI-TIP BRACKET
11	SCREW, ANTI-TIP KIT
12A	BEZEL (WHITE)
12	BEZEL (BLACK)
13	SPREADER, FLAME
