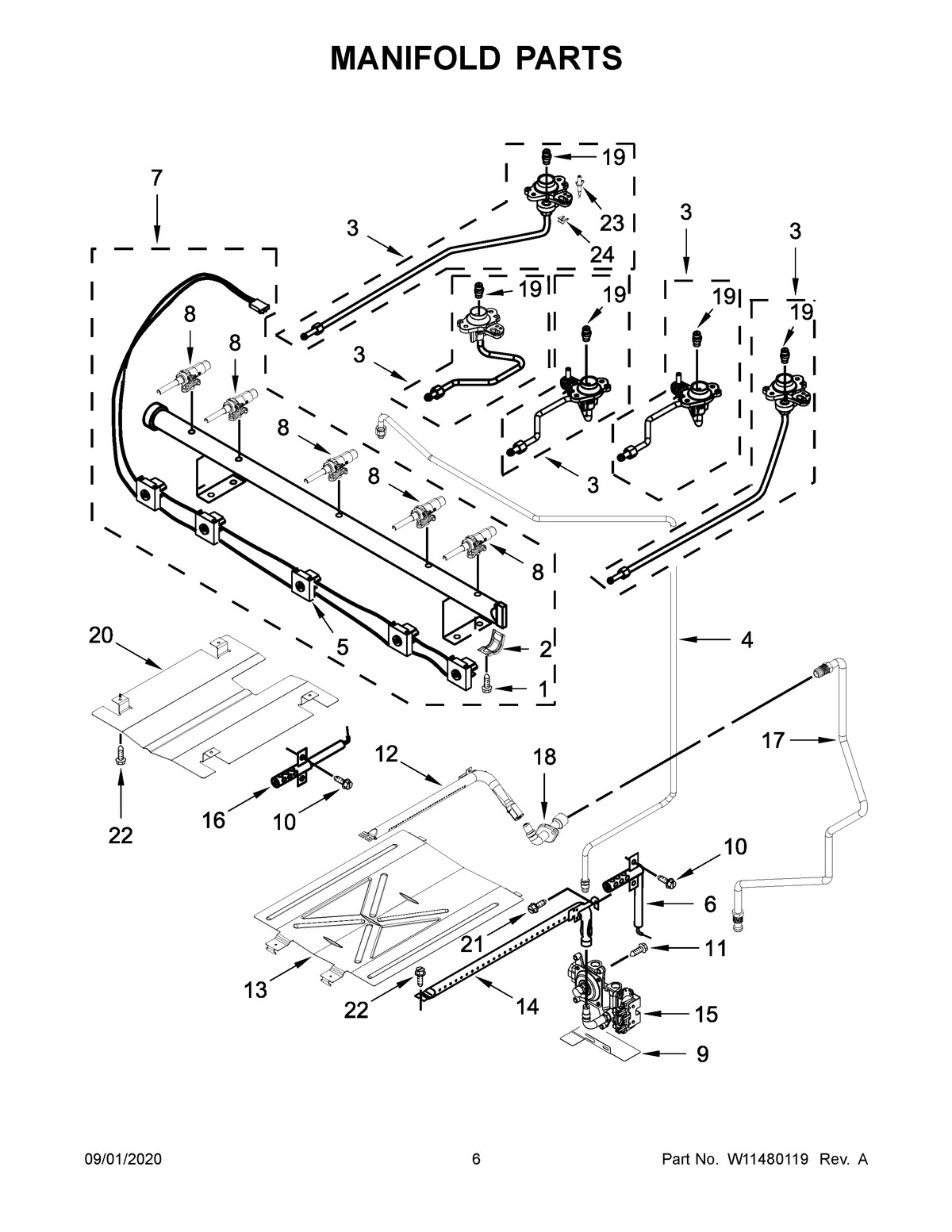

MGR6600FB2 04 – MANIFOLD PARTSadmin2025-04-26T09:12:56+00:00MGR6600FB2 04 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | LP 5 ORIFICE CONVERSION KIT |
| NI | ORIFICE, LP BROIL |
| NI | KIT, LP BAKE AND BROIL |
| NI | ORIFICE, LP BAKE |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | SCREW, VALVE |
| 2 | BRACKET, SADDLE VALVE |
| 3B | ORIFICE HOLDER ASSEMBLY (15K) (RIGHT FRONT) |
| 3A | ORIFICE HOLDER ASSEMBLY (9.5K) LEFT REAR) |
| 3C | ORIFICE HOLDER ASSEMBLY (5K) (RIGHT REAR) |
| 3D | ORIFICE HOLDER ASSEMBLY (8K) (CENTER) |
| 3 | ORIFICE HOLDER ASSEMBLY (15K) (LEFT FRONT) |
| 4 | TUBING (MANIFOLD TO REGULATOR) |
| 5 | HARNESS, IGNITER (INCLUDES SWITCHES) |
| 6 | ELECTRODE, BAKE |
| 7 | MANIFOLD ASSEMBLY |
| 8 | VALVE, GAS (LEFT FRONT & RIGHT FRONT) |
| 8A | VALVE, GAS (LEFT REAR, CENTER) |
| 8B | VALVE, GAS (RIGHT REAR) |
| 9 | BRACKET, AEGIS |
| 10 | SCREW |
| 11 | SCREW |
| 12 | BURNER, BROILER |
| 13 | SPREADER, FLAME (OVEN) |
| 14 | BURNER, BAKE |
| 15 | REGULATOR |
| 16 | ELECTRODE, BROIL |
| 17 | TUBE, BROILER SUPPLY |
| 18 | FITTING, BROILER |
| 19B | ORIFICE (LEFT REAR) |
| 19C | ORIFICE (8K) (CENTER) |
| 19A | ORIFICE (10K) (LEFT REAR) |
| 19 | ORIFICE (15K) (LEFT FRONT & RIGHT FRONT) |
| 20 | SPREADER, FLAME (BROILER) |
| 21 | SCREW |
| 22 | MAY W10362924 |
| 23 | ELECTRODE (LEFT FRONT, LEFT REAR) |
| 23A | ELECTRODE (RIGHT FRONT, RIGHT REAR, CENTER) |
| 24 | SPRING, ELECTRODE |
