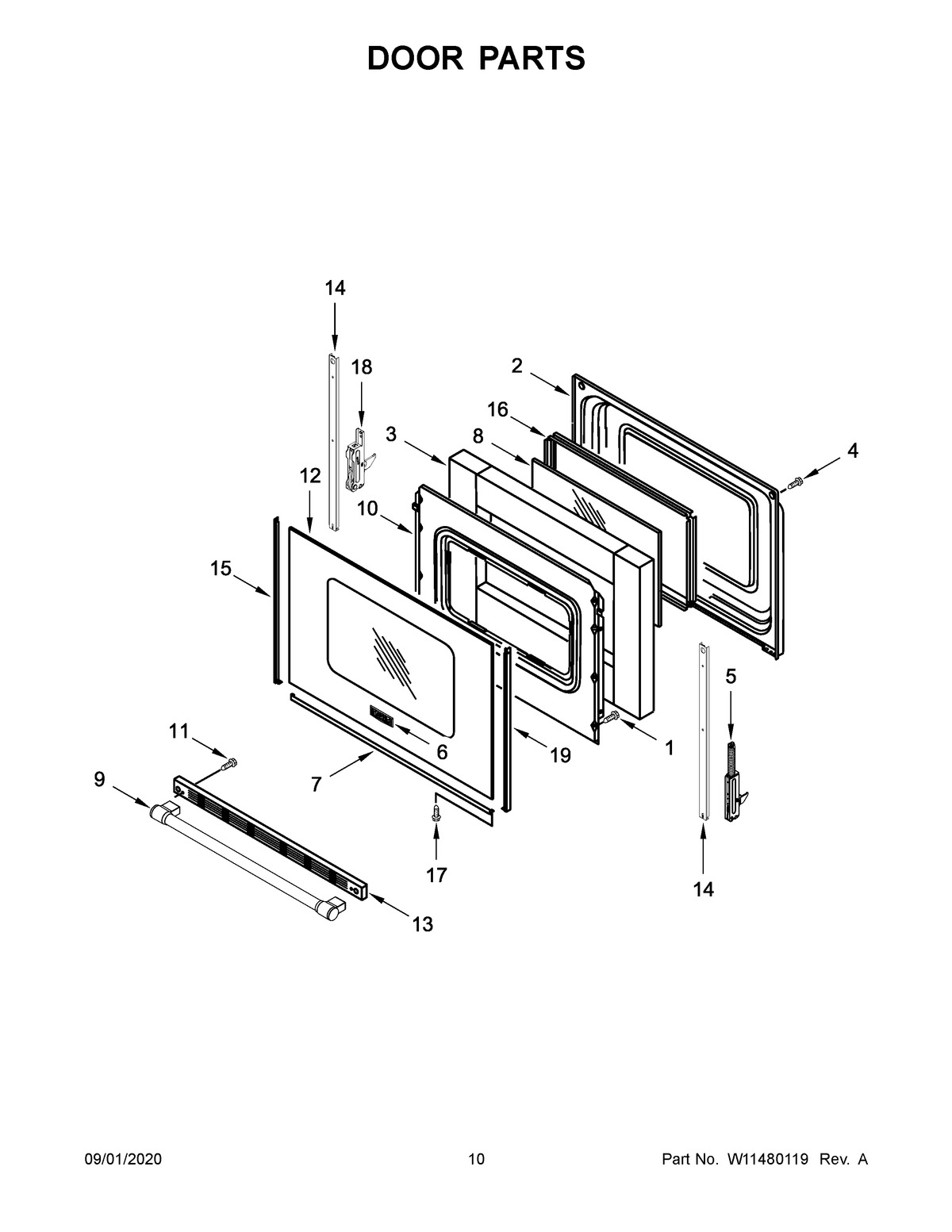

MGR6600FB2 06 – DOOR PARTS

Products

PositionProduct
1SCREW
2LINER, DOOR
3INSULATION, DOOR STRIP
4SCREW
5HINGE, DOOR (PASSIVE)
6BADGE
7TRIM, LOWER (BLACK)
7ATRIM, LOWER (WHITE)
8GLASS, INNER
9AHANDLE, OVEN DOOR (WHITE)
9HANDLE, OVEN DOOR (BLACK)
10RETAINER, INSULATION
11SCREW
12GLASS, OUTER DOOR (BLACK)
12AGLASS, OUTER DOOR (WHITE)
13MAY W10875233
13AMAY W10875232
14DOOR STRAP
15TRIM, SIDE (BLACK (LEFT))
15ATRIM, SIDE (WHITE (LEFT))
16FRAME, GLASS
17SCREW
18HINGE, ACTIVE
19TRIM, SIDE (BLACK (RIGHT))
19ATRIM, SIDE (WHITE (RIGHT))
