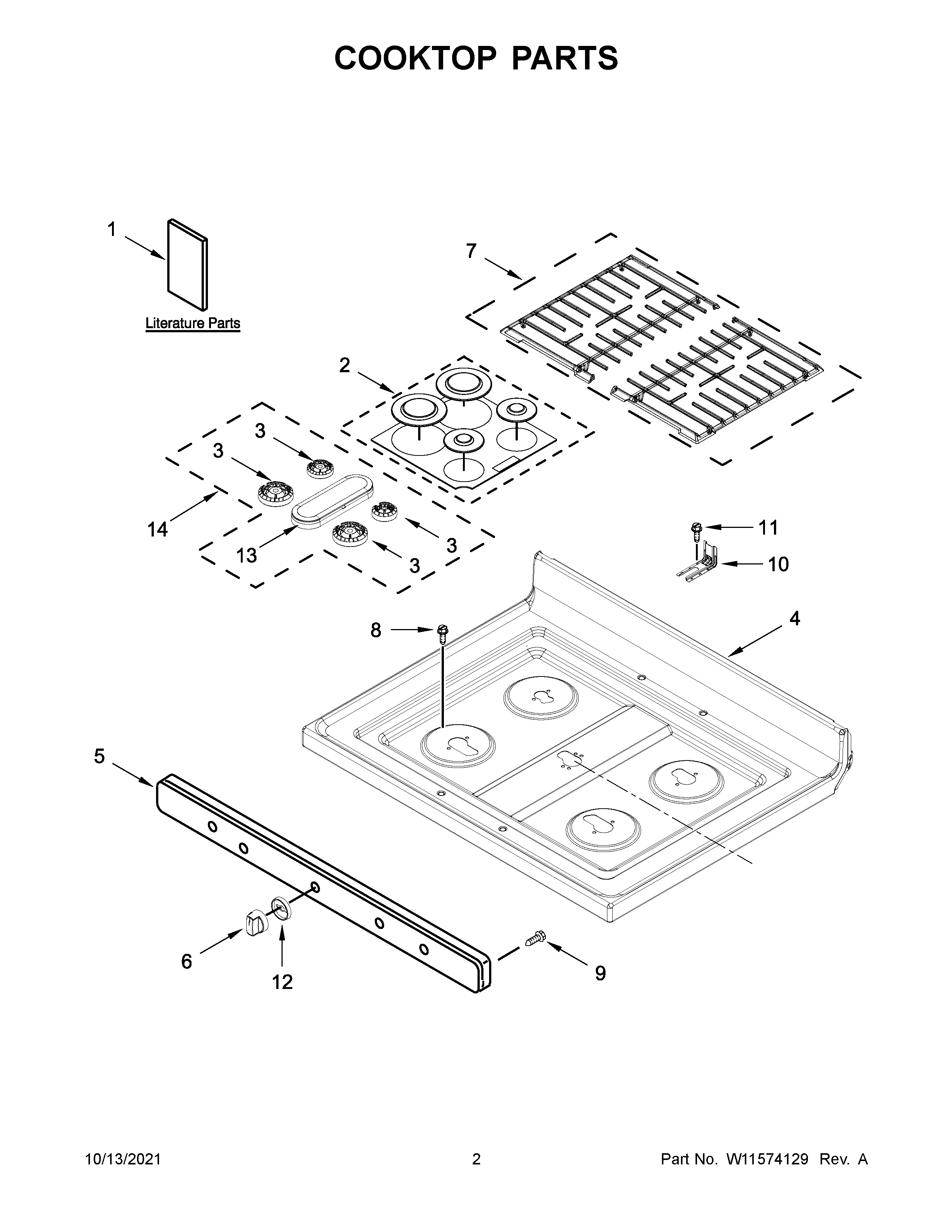

MGR6600FB3 02 – COOKTOP PARTS
Written by
in
MGR6600FB3 02 – COOKTOP PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W11453753 Whirlpool Wire Harness
NI
W11233074 Whirlpool Wire Harness
NI
W11645866 Whirlpool Wire Harness
NI
W10334923 Whirlpool Clip
NI
3196896 Whirlpool Clip
NI
3400964 Whirlpool Oven Clip
NI
16515 Whirlpool Clip
1A
OWNERS MANUAL
1
QUICK START GUIDE
1B
TECH SHEET
2
W11605759 Whirlpool Burner Cap
3B
W11435657 Whirlpool Burner Head
3A
W11435659 Whirlpool Burner Head
3
W11435630 Whirlpool Oven Burner Head
4A
W11478143 Whirlpool Cooktop Assembly
4
W11454367 Whirlpool Cooktop
5A
W10724448 Whirlpool Manifold Panel
5
W10724449 Whirlpool Manifold Panel
6A
W11101432 Whirlpool Knob
6
W11101426 Whirlpool Knob Assembly
7
W11101497 Whirlpool Grate Kit
8
W11241230 Whirlpool Screw
9
WP3196557 Whirlpool Screw
10
W11447673 Whirlpool Range Tip Anchor
11
SCREW, ANTI-TIP KIT
12
W10894849 Whirlpool Range Bezel
12A
W10894848 Whirlpool Bezel
13
W11435660 Whirlpool Burner Head
14
W11575584 Whirlpool Burner Head
←
