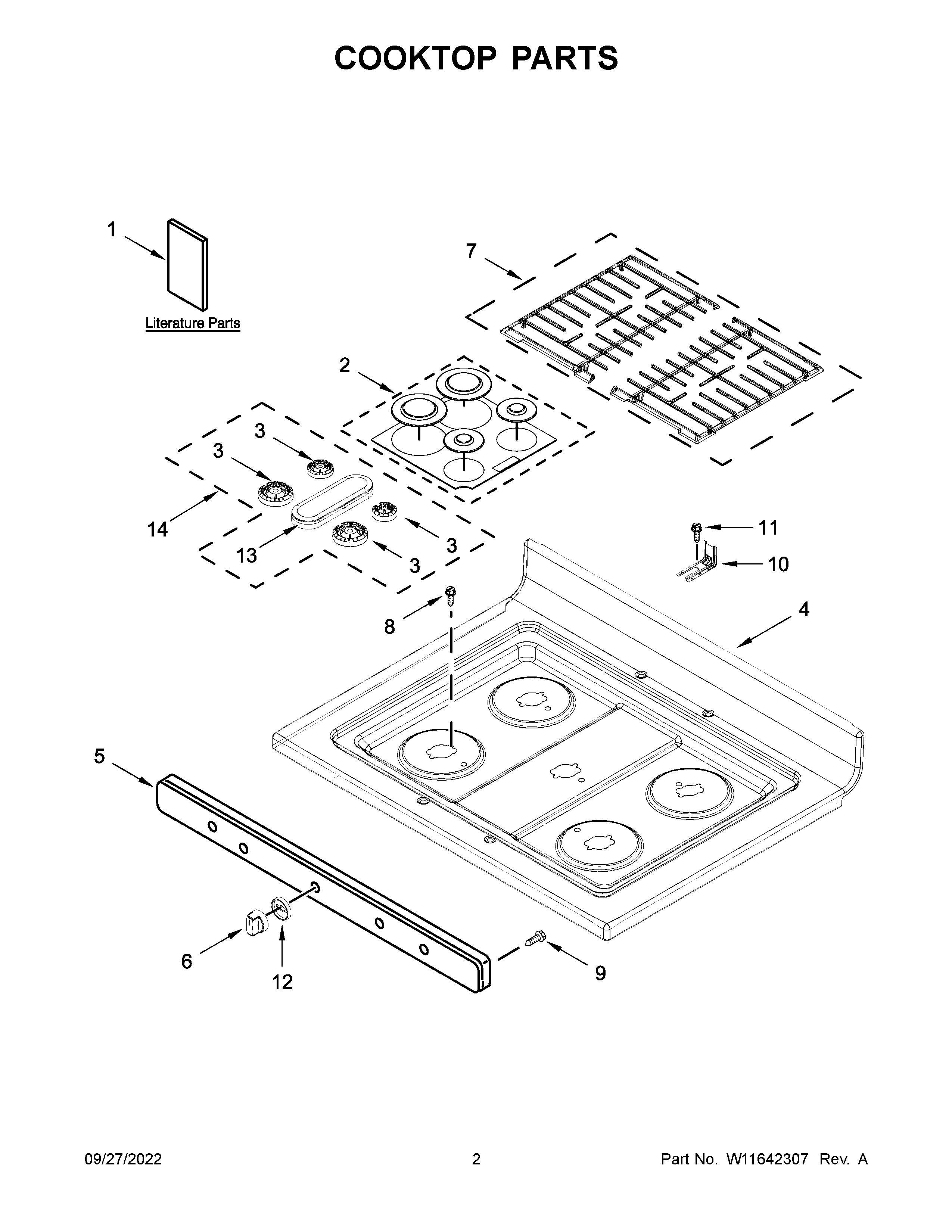

MGR6600FB6 02 – COOKTOP PARTS

MGR6600FB6 02 – COOKTOP PARTS

Written by

in

MGR6600FB6 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10334923 Whirlpool Clip
NIWPW10182767 Whirlpool Wire Tie
NIW11457167 Whirlpool Wire Harness
NIW11645866 Whirlpool Wire Harness
NI3196896 Whirlpool Clip
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
1AOWNERS MANUAL
1QUICK START GUIDE
1BTECH SHEET
2W11605759 Whirlpool Burner Cap
3BW11435657 Whirlpool Burner Head
3AW11435659 Whirlpool Burner Head
3W11435630 Whirlpool Oven Burner Head
4W11454367 Whirlpool Cooktop
4AW11478143 Whirlpool Cooktop Assembly
5W10724449 Whirlpool Manifold Panel
5AW10724448 Whirlpool Manifold Panel
6AKNOB, CONTROL (WHITE)
6KNOB, CONTROL (BLACK)
7W11101497 Whirlpool Grate Kit
8W11241230 Whirlpool Screw
9WP3196557 Whirlpool Screw
10W11447673 Whirlpool Range Tip Anchor
11SCREW, ANTI-TIP KIT
12W10894849 Whirlpool Range Bezel
12AW10894848 Whirlpool Bezel
13W11435660 Whirlpool Burner Head
14W11575584 Whirlpool Burner Head
