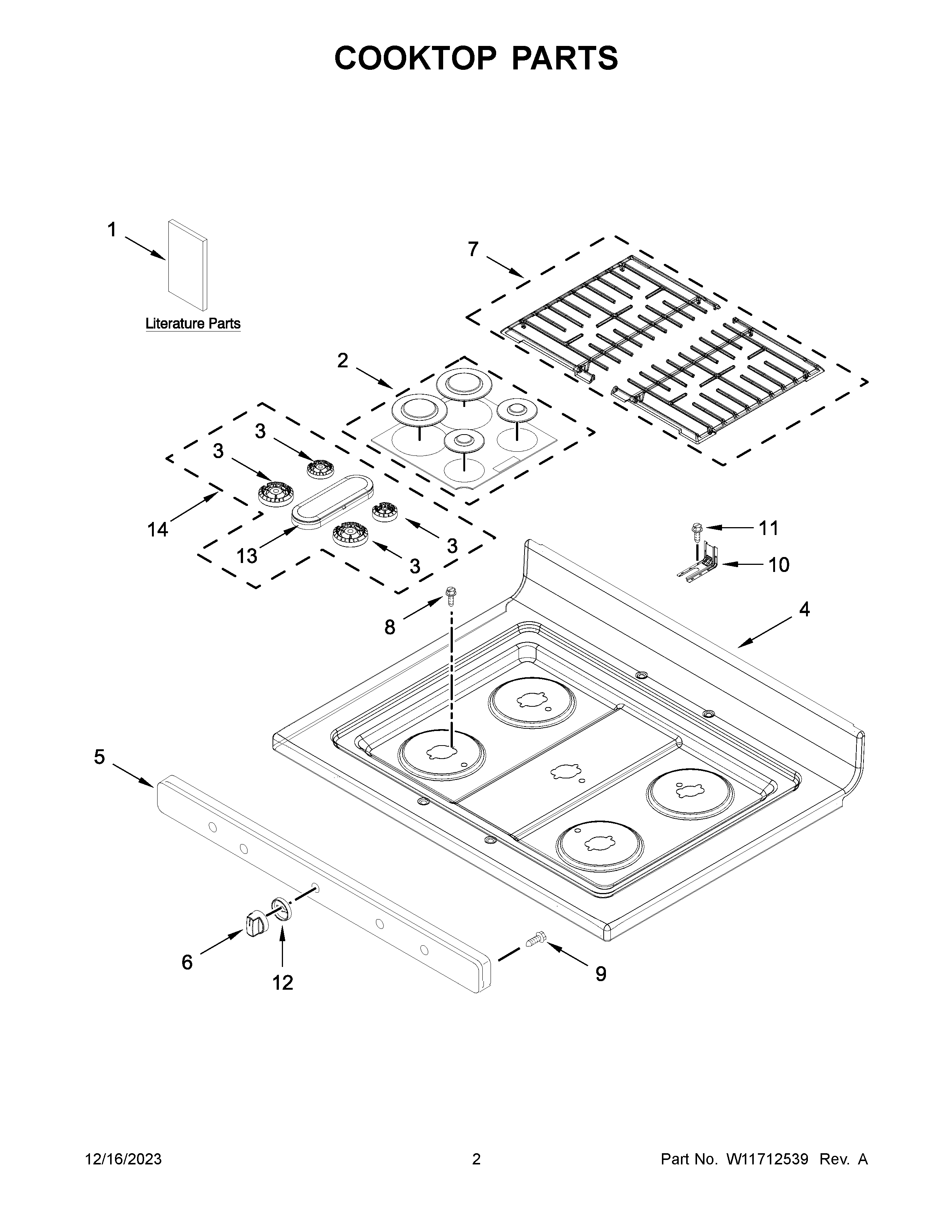

MGR6600FB7 02 – COOKTOP PARTSadmin2025-04-26T12:48:39+00:00MGR6600FB7 02 – COOKTOP PARTS ProductsPositionProductNIFOLLOWING PARTS NOT ILLUSTRATEDNIW11645866 Whirlpool Wire HarnessNIW11457167 Whirlpool Wire HarnessNIW10334923 Whirlpool ClipNI3196896 Whirlpool ClipNIWPW10182767 Whirlpool Wire TieNI3400964 Whirlpool Oven ClipNI16515 Whirlpool Clip1AOWNERS MANUAL1QUICK START GUIDE1BWIRING DIAGRAM2W11605759 Whirlpool Burner Cap3AW11435659 Whirlpool Burner Head3BW11435657 Whirlpool Burner Head3W11435630 Whirlpool Oven Burner Head4W11454367 Whirlpool Cooktop4AW11478143 Whirlpool Cooktop Assembly5AW10724448 Whirlpool Manifold Panel5W10724449 Whirlpool Manifold Panel6KNOB, CONTROL (BLACK)6AKNOB, CONTROL (WHITE)7W11101497 Whirlpool Grate Kit8W11241230 Whirlpool Screw9WP3196557 Whirlpool Screw10W11447673 Whirlpool Range Tip Anchor11SCREW, ANTI-TIP KIT12W10894849 Whirlpool Range Bezel12AW10894848 Whirlpool Bezel13W11435660 Whirlpool Burner Head14W11575584 Whirlpool Burner Head
