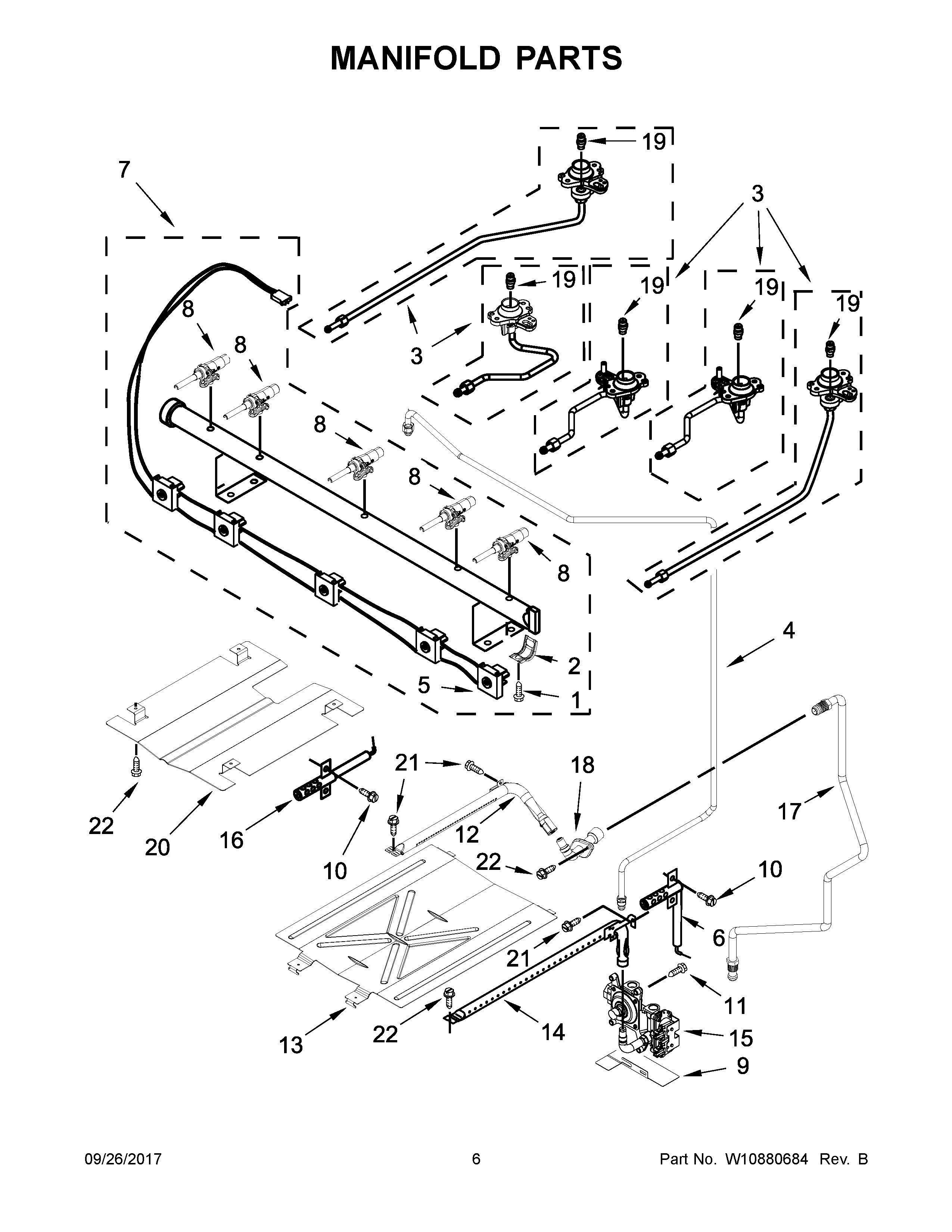

MGR6600FW0 04 – MANIFOLD PARTS

Products

Position	Product
NI	ORIFICE, LP BAKE
NI	KIT, LP BAKE AND BROIL
NI	LINER (NOT A SERVICEABLE PART)
NI	KIT, LP 5 ORIFICE CONVERSION
1	SCREW, VALVE
2	BRACKET, SADDLE VALVE
3C	ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR)
3A	ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR)
3	ASSEMBLY, ORIFICE HOLDER (15K) (LEFT FRONT)
3D	ASSEMBLY, ORIFICE HOLDER (8K) (CENTER)
3B	ASSEMBLY, ORIFICE HOLDER (15K) (RIGHT FRONT)
4	TUBING (MANIFOLD TO REGULATOR)
5	SWITCH, 5 BURNER MANIFOLD HARNESS
6	ELECTRODE, BAKE
7	ASSEMBLY, MANIFOLD
8C	VALVE, GAS (CENTER)
8B	VALVE, GAS (RIGHT REAR)
8A	VALVE, GAS (LEFT REAR)
8	VALVE, GAS (LEFT FRONT & RIGHT FRONT)
9	BRACKET, AEGIS
10	SCREW
11	SCREW
12	BURNER, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	REGULATOR
16	ELECTRODE, BROIL
17	TUBE, BROILER SUPPLY
18	FITTING, BROILER
19	ORIFICE (15K) (LEFT FRONT & RIGHT FRONT)
19C	ORIFICE (8K) (CENTER)
19B	ORIFICE, NATURAL (5K) (RIGHT REAR)
19A	ORIFICE, NATURAL (9.5K) (LEFT REAR)
20	SPREADER, FLAME (BROILER)
21	SCREW
22	MAY W10362924
