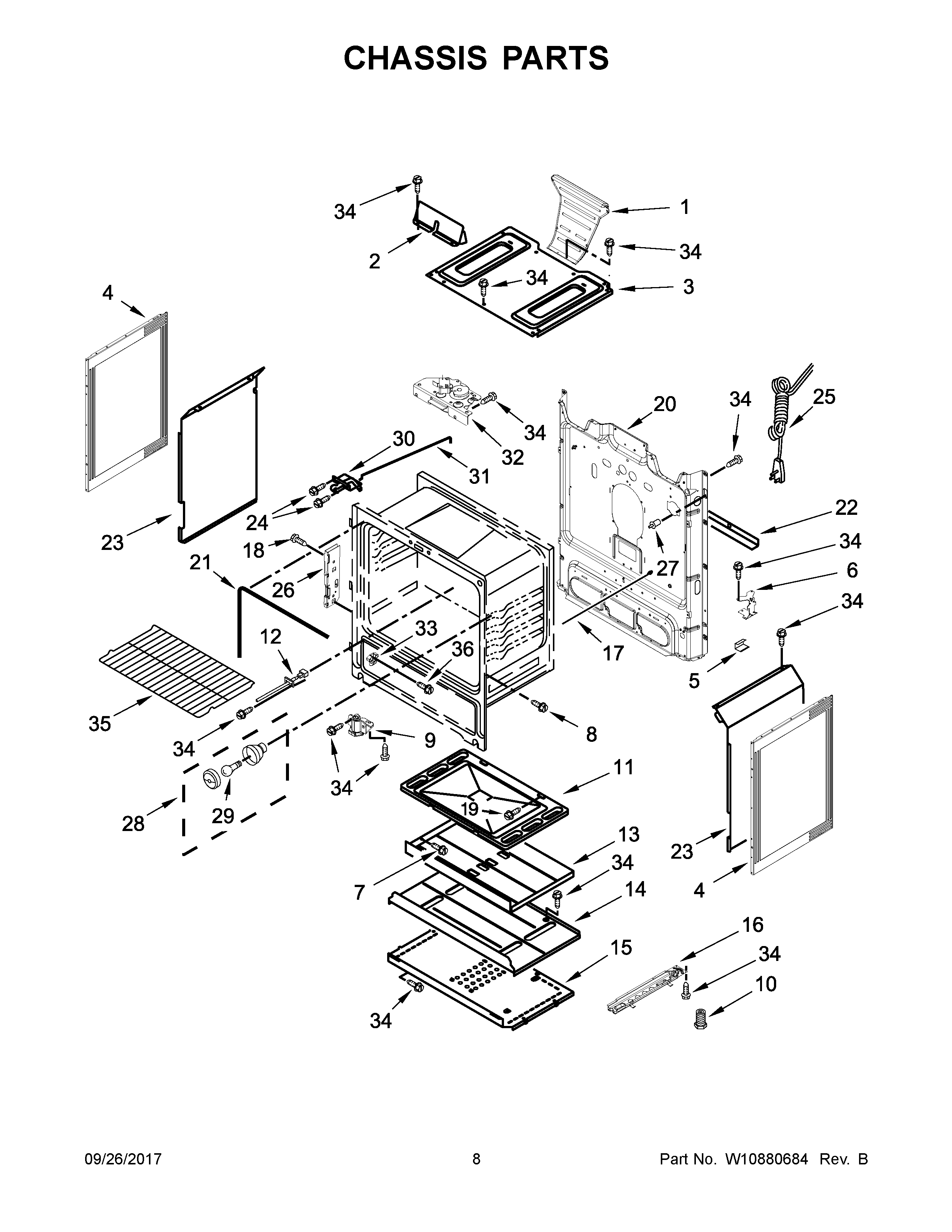

MGR6600FW0 05 – CHASSIS PARTS

MGR6600FW0 05 – CHASSIS PARTS

Written by

in

MGR6600FW0 05 – CHASSIS PARTS

Products

PositionProduct
NIINSULATION, BACK
NILINER (NOT A SERVICEABLE PART)
NIINSULATION, WRAP
1BOX, FLUE
2SHIELD, FLUE
3BOX-BURNER, GAS SEALED
4APANEL, SIDE (WHITE)
4PANEL, SIDE (BLACK)
5CLIP, PANEL
6BRACKET, MANIFOLD
7MAY W10362924
9ASSEMBLY, FRONT FOOT
10FOOT, LEVELING
11BOTTOM, OVEN
12MAY W10586204
13BAFFLE, BURNER OVEN
14SHIELD, HEAT
15SHIELD, LOWER
16ASSEMBLY, BASE RAIL (LEFT)
16AASSEMBLY, BASE RAIL (RIGHT)
17ROD, DOOR SWITCH
18MAY W10031780
19SCREW
20BACK, MAIN
21SEAL, DOOR
22BRACE, MAIN BACK
23MAY 9761449
23AMAY 9761448
24SCREW
25CORD, POWER
26RECEIVER, HINGE
27SWITCH, DOOR
28ASSEMBLY, LIGHT
29BULB, OVEN LIGHT
30ASSEMBLY, DOOR LATCH (FRONT)
31ROD, PUSH LATCH
32ASSEMBLY, DOOR LATCH (REAR)
33GLIDE, DRAWER FRONT
34SCREW
35RACK, OVEN
36MAY 3400080
