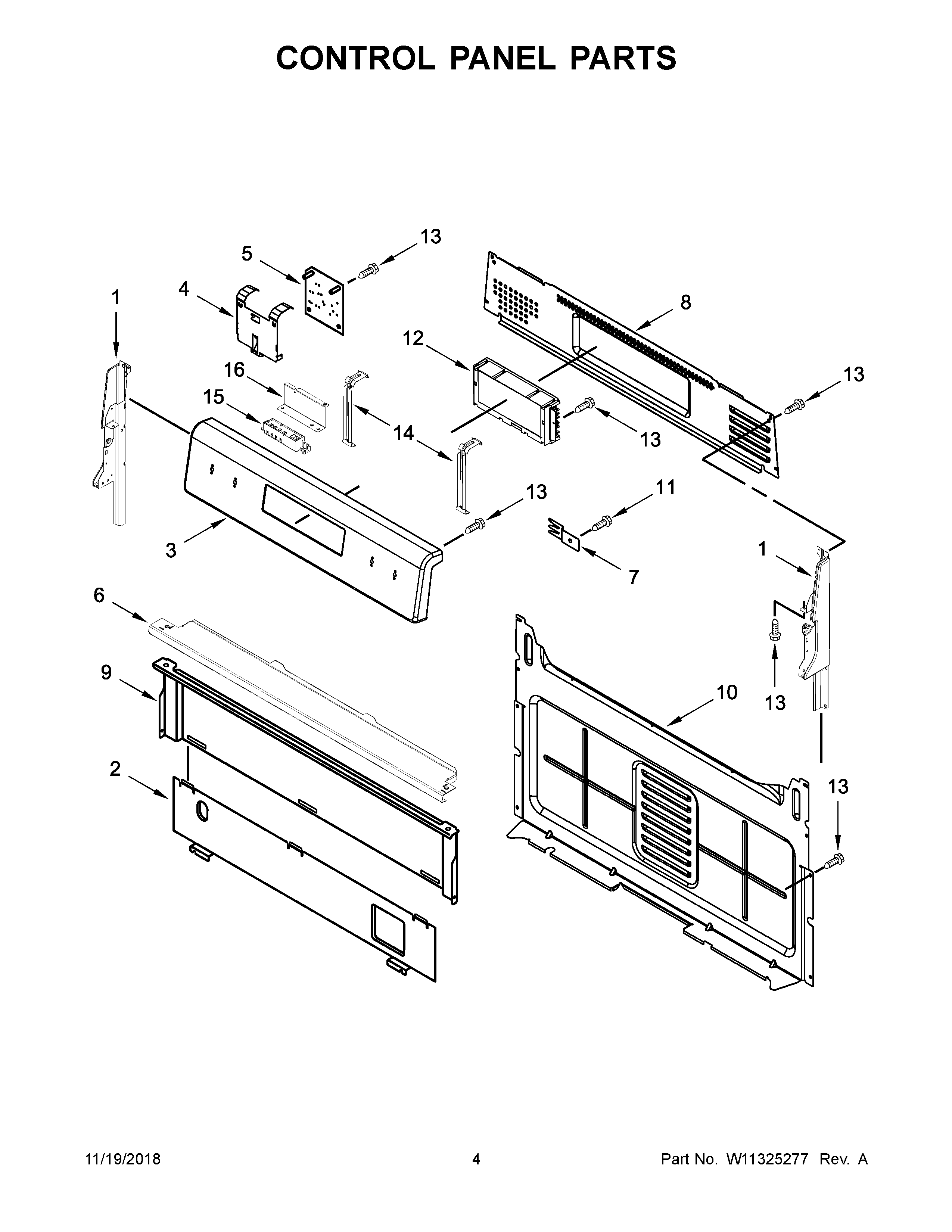

MGR6600FW1 03 – CONTROL PANEL PARTS

Products

Position	Product
1B	ENDCAP (WHITE (LEFT))
1C	ENDCAP (WHITE (RIGHT))
1	ENDCAP (BLACK (LEFT))
1A	ENDCAP (BLACK (RIGHT))
2	SHIELD, HEAT
3A	PANEL, CONTROL (WHITE)
3	PANEL, CONTROL (BLACK)
4	BRACKET, MOUNTING
5	MODULE, SPARK DSI
6	BRACKET, CONSOLE MOUNTING
7	BRACKET, REAR COOKTOP
8	COVER, UPPER
9	SHIELD, HEAT
10	COVER, BACK
11	SCREW
12	CONTROL, ELECTRONIC (LCX) (BLACK)
12A	CONTROL, ELECTRONIC (LCX) (WHITE)
13	SCREW
14	BRACKET, CONTROL
15	MAY W10475149
16	BRACKET, IGNITOR
