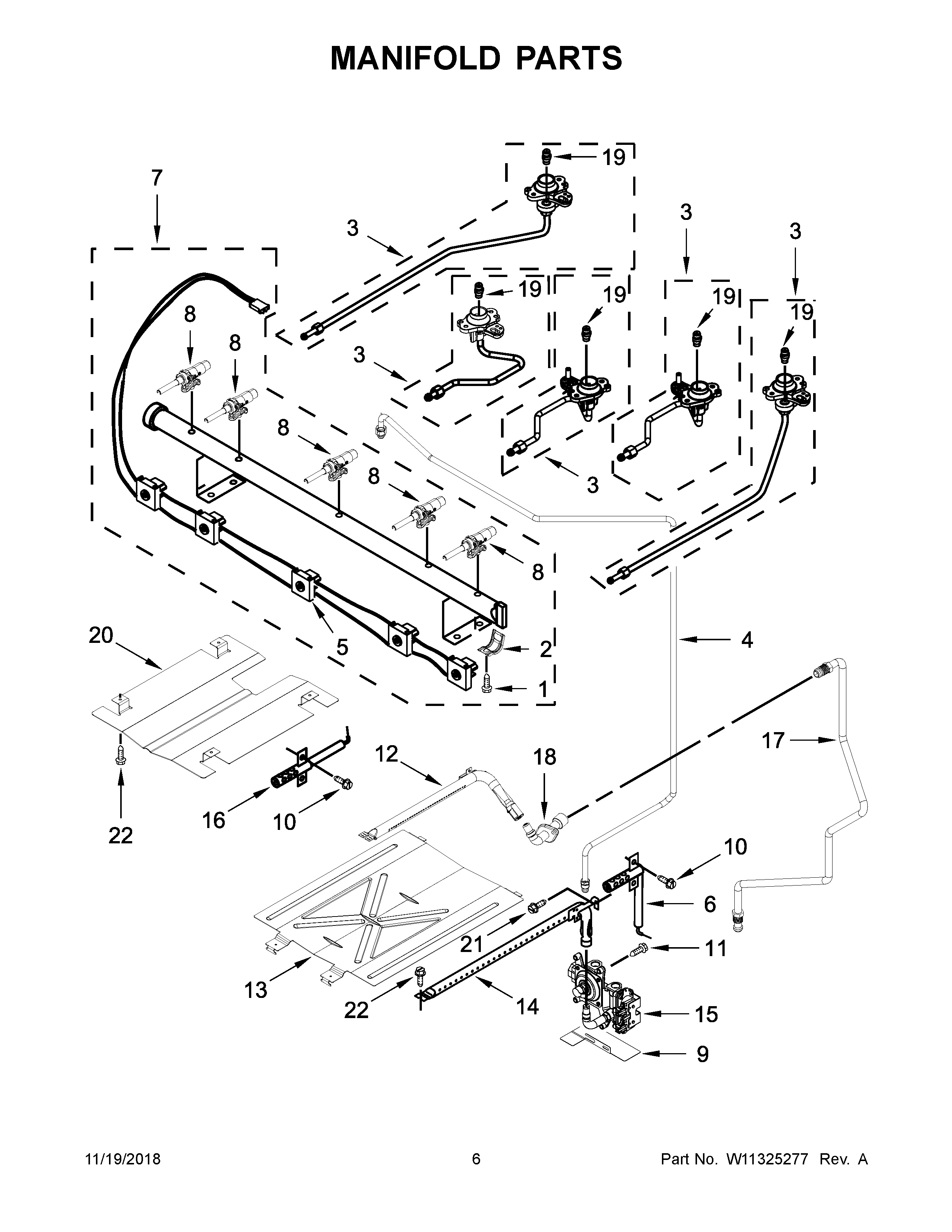

MGR6600FW1 04 – MANIFOLD PARTS

Products

Position	Product
NI	ORIFICE, LP BAKE
NI	KIT, LP BAKE AND BROIL
NI	KIT, LP 5 ORIFICE CONVERSION
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW, VALVE
2	BRACKET, SADDLE VALVE
3A	ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR)
3	ASSEMBLY, ORIFICE HOLDER (15K) (LEFT FRONT)
3B	ASSEMBLY, ORIFICE HOLDER (15K) (RIGHT FRONT)
3C	ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR)
3D	ASSEMBLY, ORIFICE HOLDER (8K) (CENTER)
4	TUBING (MANIFOLD TO REGULATOR)
5	HARNESS, IGNITER (INCLUDES SWITCHES)
6	ELECTRODE, BAKE
7	ASSEMBLY, MANIFOLD
8A	VALVE, GAS (LEFT REAR)
8B	VALVE, GAS (RIGHT REAR)
8C	VALVE, GAS (CENTER)
8	VALVE, GAS (LEFT FRONT & RIGHT FRONT)
9	BRACKET, AEGIS
10	SCREW
11	SCREW
12	BURNER, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	REGULATOR
16	ELECTRODE, BROIL
17	TUBE, BROILER SUPPLY
18	FITTING, BROILER
19	ORIFICE (15K) (LEFT FRONT & RIGHT FRONT)
19C	ORIFICE (8K) (CENTER)
19B	ORIFICE, NATURAL (5K) (RIGHT REAR)
19A	ORIFICE, NATURAL (9.5K) (LEFT REAR)
20	SPREADER, FLAME (BROILER)
21	SCREW
22	MAY W10362924
