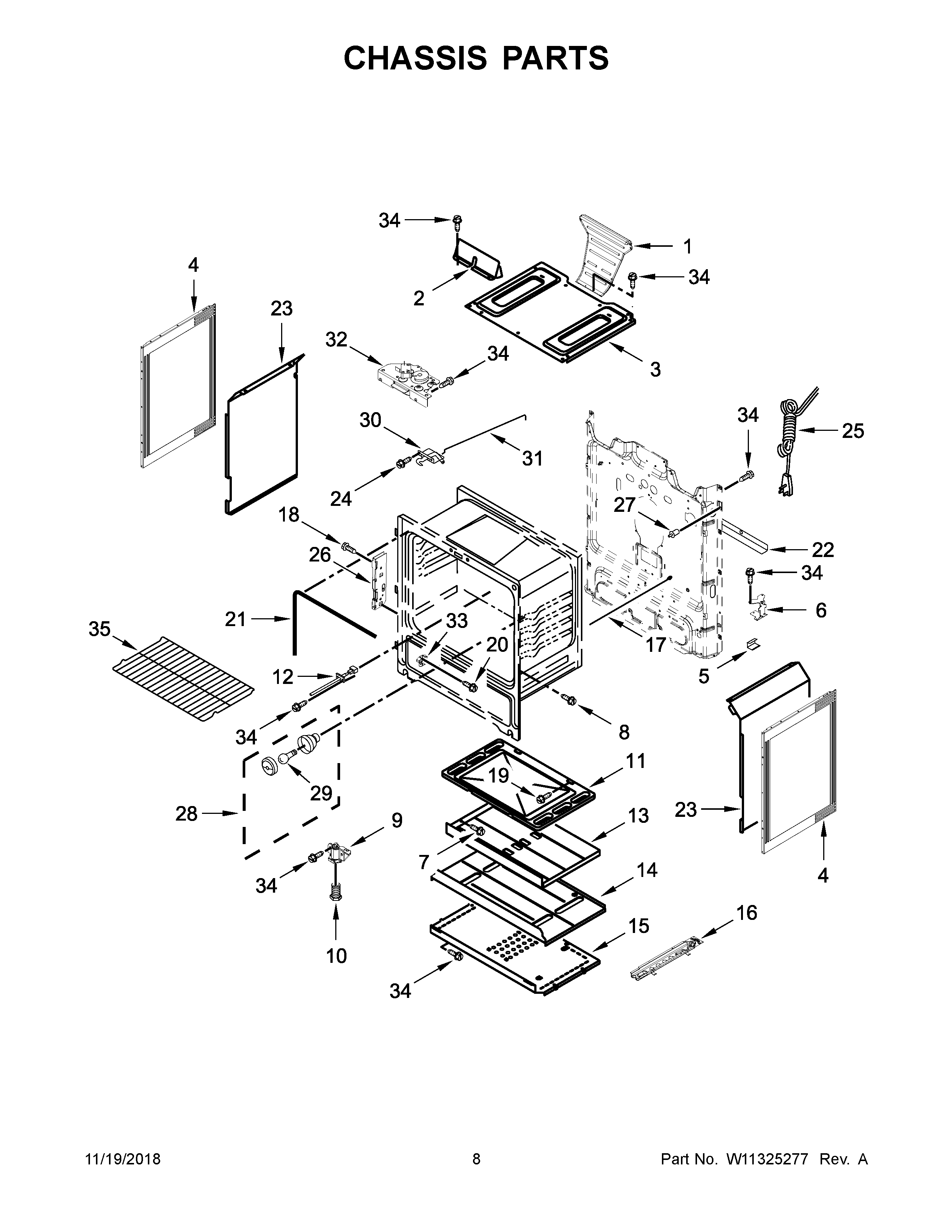

MGR6600FW1 05 – CHASSIS PARTSadmin2025-04-26T09:13:17+00:00MGR6600FW1 05 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, BACK |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | INSULATION, WRAP |
| 1 | BOX, FLUE |
| 2 | SHIELD, FLUE |
| 3 | BOX-BURNER, GAS SEALED |
| 4 | PANEL, SIDE (BLACK) |
| 4A | PANEL, SIDE (WHITE) |
| 5 | CLIP, PANEL |
| 6 | BRACKET, MANIFOLD |
| 7 | MAY W10362924 |
| 9 | ASSEMBLY, FRONT FOOT |
| 10 | FOOT, LEVELING |
| 11 | BOTTOM, OVEN |
| 12 | MAY W10586204 |
| 13 | BAFFLE, BURNER OVEN |
| 14 | SHIELD, HEAT |
| 15 | SHIELD, LOWER |
| 16 | ASSEMBLY, BASE RAIL (LEFT) |
| 16A | ASSEMBLY, BASE RAIL (RIGHT) |
| 17 | ROD, DOOR SWITCH |
| 18 | MAY W10031780 |
| 19 | SCREW |
| 20 | MAY 3400080 |
| 21 | SEAL, DOOR |
| 22 | BRACE, MAIN BACK |
| 23 | MAY 9761449 |
| 23A | MAY 9761448 |
| 24 | SCREW |
| 25 | CORD, POWER |
| 26 | RECEIVER, HINGE |
| 27 | SWITCH, DOOR |
| 28 | MAY W11175594 |
| 29 | BULB, HALOGEN 40 WATTS |
| 30 | ASSEMBLY, DOOR LATCH (FRONT) |
| 31 | ROD, PUSH LATCH |
| 32 | ASSEMBLY, DOOR LATCH (REAR) |
| 33 | GLIDE, DRAWER FRONT |
| 34 | SCREW |
| 35 | RACK, OVEN |
