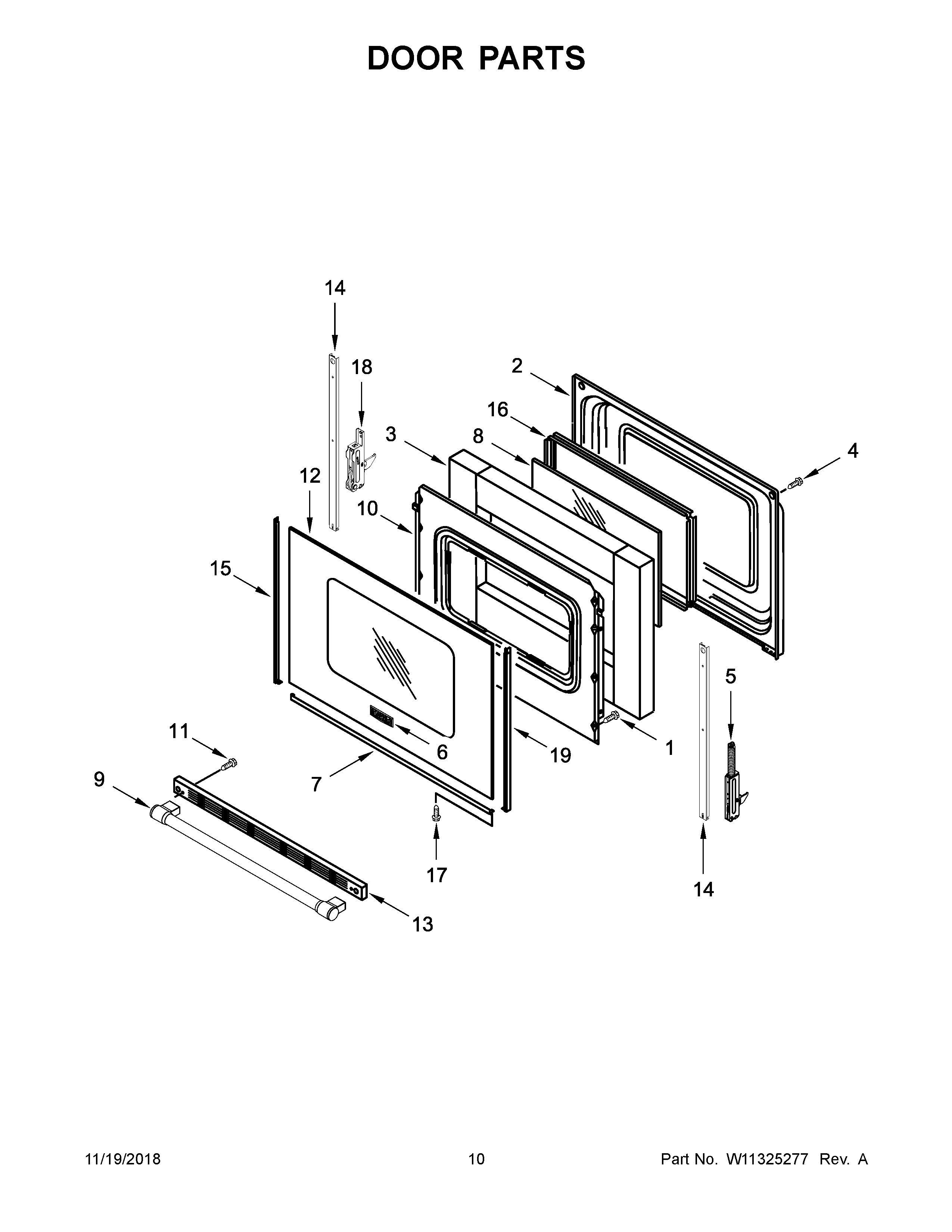

MGR6600FW1 06 – DOOR PARTS

MGR6600FW1 06 – DOOR PARTS

Written by

in

MGR6600FW1 06 – DOOR PARTS

Products

PositionProduct
1SCREW
2LINER, DOOR
3INSULATION, DOOR STRIP
4SCREW
5HINGE, DOOR (PASSIVE)
6BADGE
7TRIM, LOWER (BLACK)
7ATRIM, LOWER (WHITE)
8GLASS, INNER
9HANDLE, OVEN DOOR (BLACK)
9AHANDLE, OVEN DOOR (WHITE)
10RETAINER, INSULATION
11SCREW
12AGLASS, OUTER DOOR (WHITE)
12GLASS, OUTER DOOR (BLACK)
13MAY W10875233
13AMAY W10875232
14STRAP, DOOR
15ATRIM, SIDE (WHITE (LEFT))
15TRIM, SIDE (BLACK (LEFT))
16FRAME, GLASS
17SCREW
18HINGE, ACTIVE
19ATRIM, SIDE (WHITE (RIGHT))
19TRIM, SIDE (BLACK (RIGHT))
