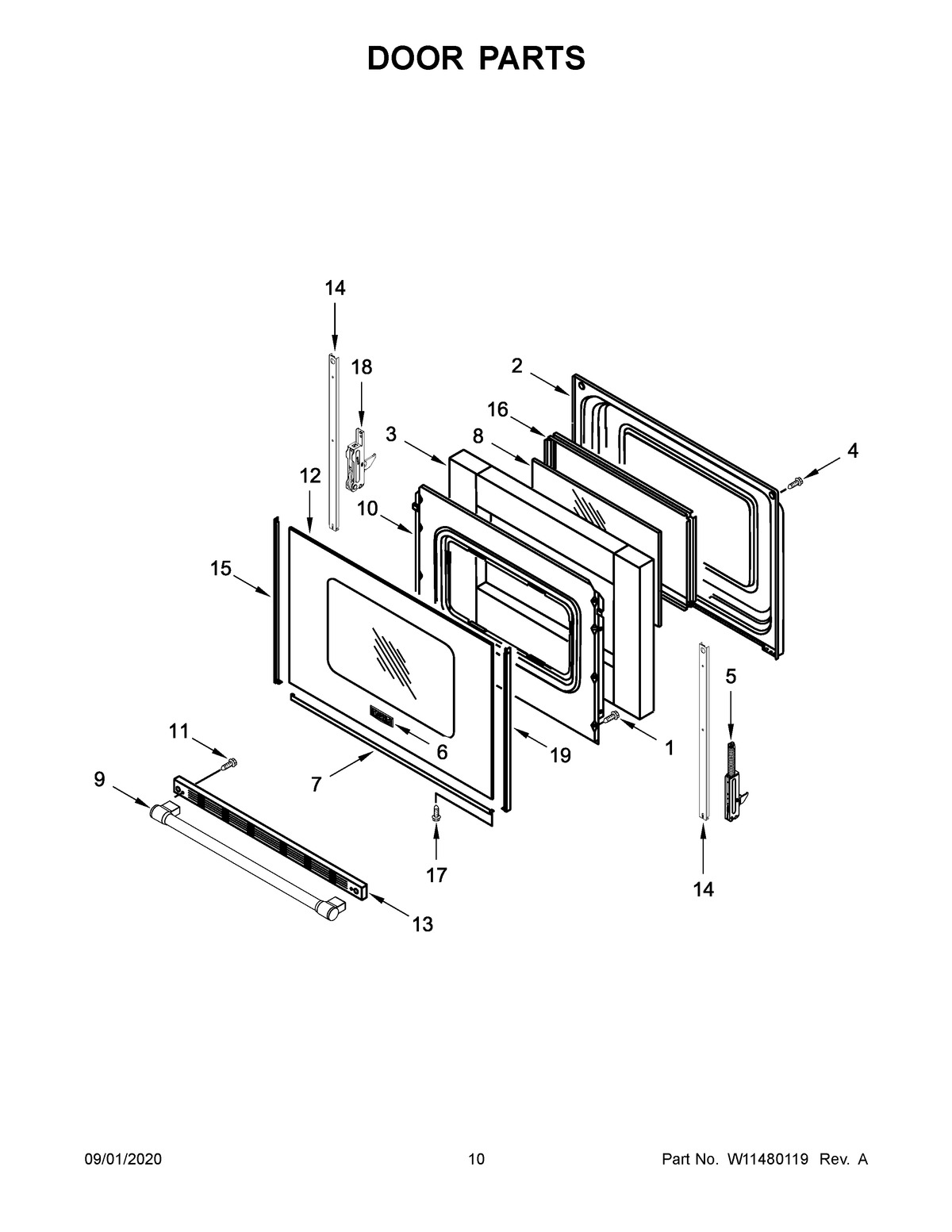

MGR6600FW2 06 – DOOR PARTS

Products

Position	Product
1	SCREW
2	LINER, DOOR
3	INSULATION, DOOR STRIP
4	SCREW
5	HINGE, DOOR (PASSIVE)
6	BADGE
7	TRIM, LOWER (BLACK)
7A	TRIM, LOWER (WHITE)
8	GLASS, INNER
9A	HANDLE, OVEN DOOR (WHITE)
9	HANDLE, OVEN DOOR (BLACK)
10	RETAINER, INSULATION
11	SCREW
12	GLASS, OUTER DOOR (BLACK)
12A	GLASS, OUTER DOOR (WHITE)
13	MAY W10875233
13A	MAY W10875232
14	DOOR STRAP
15	TRIM, SIDE (BLACK (LEFT))
15A	TRIM, SIDE (WHITE (LEFT))
16	FRAME, GLASS
17	SCREW
18	HINGE, ACTIVE
19	TRIM, SIDE (BLACK (RIGHT))
19A	TRIM, SIDE (WHITE (RIGHT))
