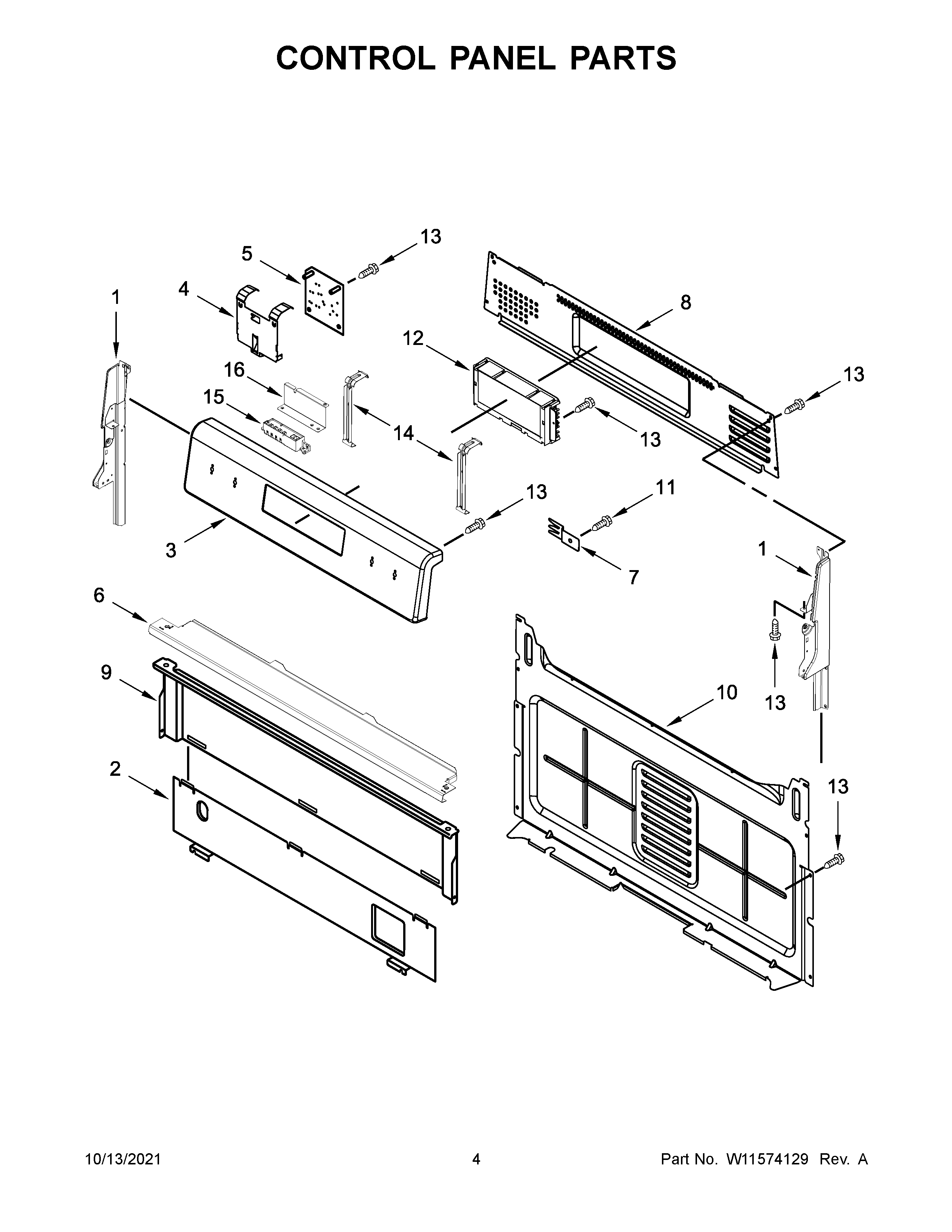

MGR6600FW3 03 – CONTROL PANEL PARTS

MGR6600FW3 03 – CONTROL PANEL PARTS

Written by

in

MGR6600FW3 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW11219370 Whirlpool Endcap Panel
1BW11219365 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
28053505 Whirlpool Oven Shield
3AW11101500 Whirlpool Control Panel
3W11101498 Whirlpool Control Panel
4W10762981 Whirlpool Mounting Bracket Assembly
5W11162730 Whirlpool Spark Module
6W10516123 Whirlpool Mounting Bracket
78523412 Whirlpool Mounting Bracket
8W10198745 Whirlpool Rear Cover
9W10192841 Whirlpool Heat Shield
10COVER, BACK
11WP3196557 Whirlpool Screw
12W11323275-includeCORE Whirlpool W11323275 Refrigerator Electronic Control Board + Core
12AW11101577 Whirlpool Electronic Control Board + Core
13SCREW
14W11230932 Whirlpool Bracket Mounting
15WPW10475149 Whirlpool Spark Module
16W10901176 Whirlpool Bracket Assembly
