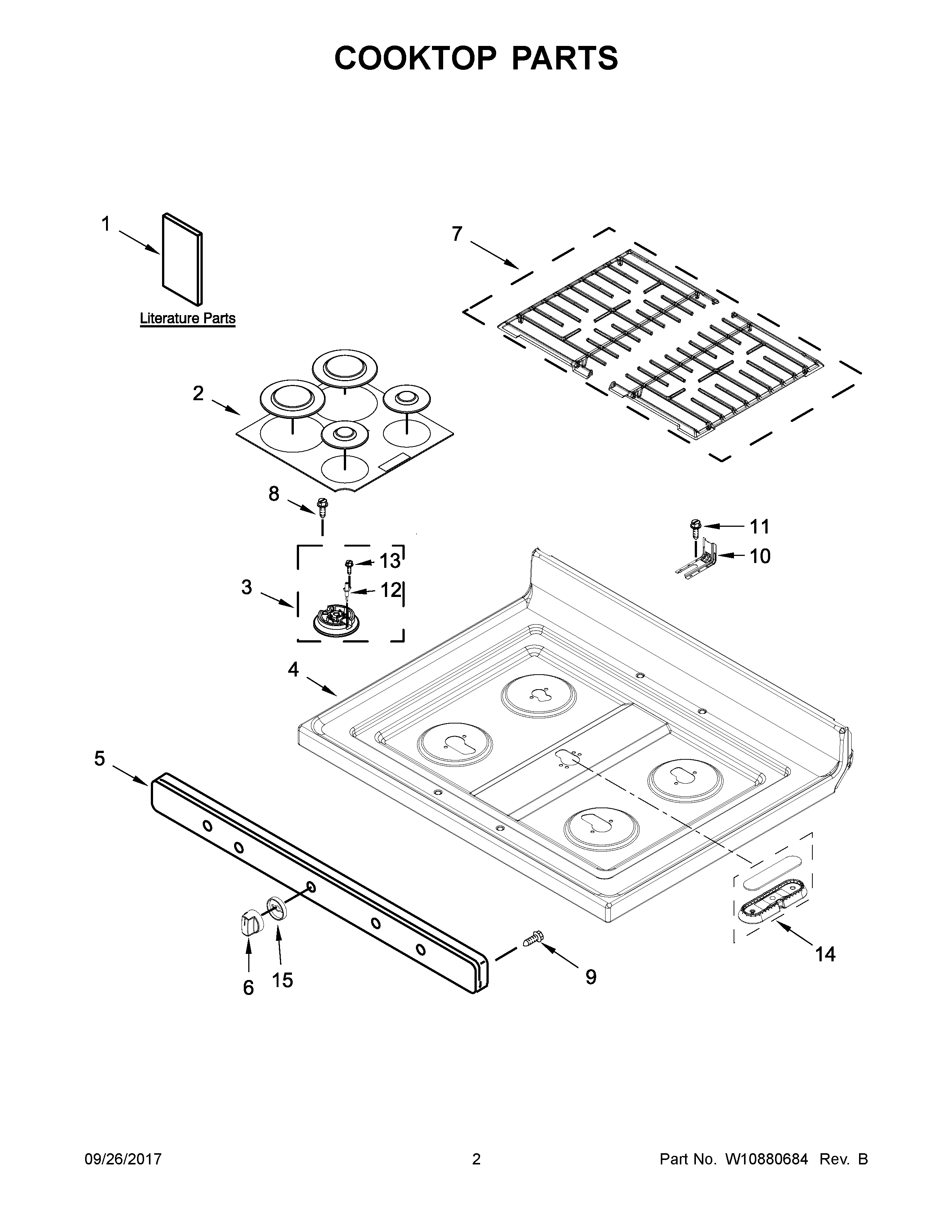

MGR6600FZ0 02 – COOKTOP PARTS

Products

Position	Product
NI	CLIP, GAS WIRING
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, IGNITER (INCLUDES SWITCHES)
NI	CLIP, WIRE
NI	CLIP, HARNESS
NI	CLIP, WIRE
NI	HARNESS, MAIN
NI	HARNESS, COOKTOP
NI	HARNESS, BAKE/BROIL
1	INSTRUCTIONS, INSTALLATION
1C	DIAGRAM, WIRING
1A	GUIDE, USE AND CARE
1E	TIPS, SAFE COOKING (FRENCH)
1B	SHEET, TECH
1D	TIPS, SAFE COOKING (ENGLISH)
2	KIT, BURNER CAP (BLACK (SET OF 4))
3A	ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
3	ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
3B	ASSEMBLY, BURNER (6K) (RIGHT REAR)
4	COOKTOP (BLACK)
4A	COOKTOP (WHITE)
5B	PANEL, MANIFOLD (STAINLESS)
5	PANEL, MANIFOLD (BLACK)
5A	PANEL, MANIFOLD (WHITE)
6A	KNOB, CONTROL (WHITE)
6	KNOB, CONTROL (BLACK)
6B	KNOB, CONTROL (STAINLESS)
7	KIT, GRATE (BLACK)
8	SCREW
9	MAY 3196557
10	BRACKET, ANTI-TIP
11	SCREW, ANTI-TIP KIT
12	ELECTRODE (RIGHT REAR)
13	MAY 8273062
14	SPREADER, FLAME
15	BEZEL (BLACK)
15B	BEZEL (STAINLESS)
15A	BEZEL (WHITE)
