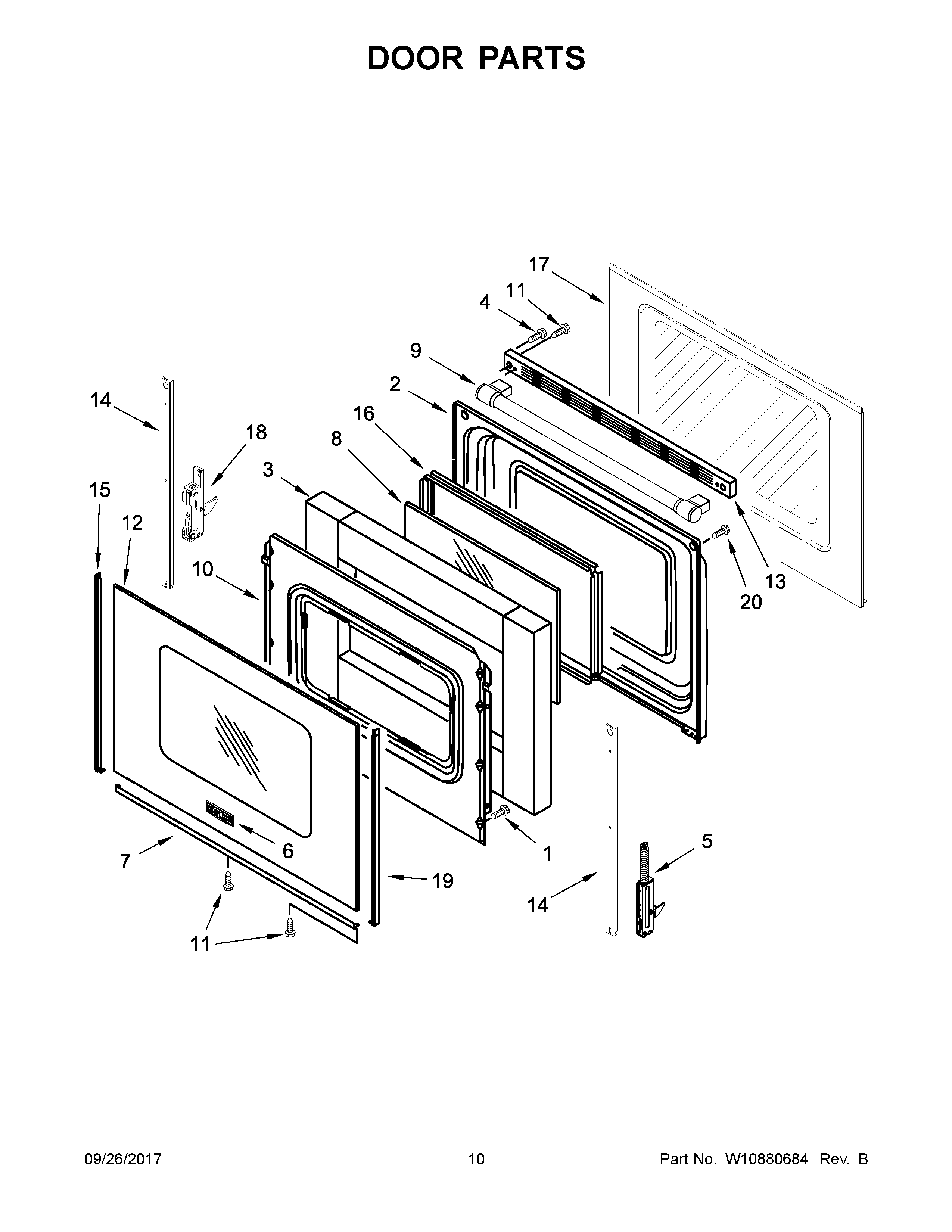

MGR6600FZ0 06 – DOOR PARTSadmin2025-04-26T09:14:26+00:00MGR6600FZ0 06 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | SCREW |
| 2 | LINER, DOOR |
| 3 | INSULATION, DOOR STRIP |
| 4 | SCREW |
| 5 | HINGE, DOOR (PASSIVE) |
| 6 | BADGE |
| 7 | TRIM, LOWER (BLACK) |
| 7A | TRIM, LOWER (WHITE) |
| 8 | GLASS, INNER |
| 9B | HANDLE, OVEN DOOR (STAINLESS) |
| 9 | HANDLE, OVEN DOOR (BLACK) |
| 9A | HANDLE, OVEN DOOR (WHITE) |
| 10 | RETAINER, INSULATION |
| 11 | SCREW |
| 12 | GLASS, OUTER DOOR (BLACK) |
| 12A | GLASS, OUTER DOOR (WHITE) |
| 13 | MAY W10875233 |
| 13A | MAY W10875232 |
| 13B | MAY W11047800 |
| 14 | STRAP, DOOR |
| 15A | TRIM, SIDE (WHITE (LEFT)) |
| 15 | TRIM, SIDE (BLACK (LEFT)) |
| 16 | FRAME, GLASS |
| 17 | MAY W10861544 |
| 18 | HINGE, ACTIVE (WITH SPRING) |
| 19 | TRIM, SIDE (BLACK (RIGHT)) |
| 19A | TRIM, SIDE (WHITE (RIGHT)) |
| 20 | SCREW |
