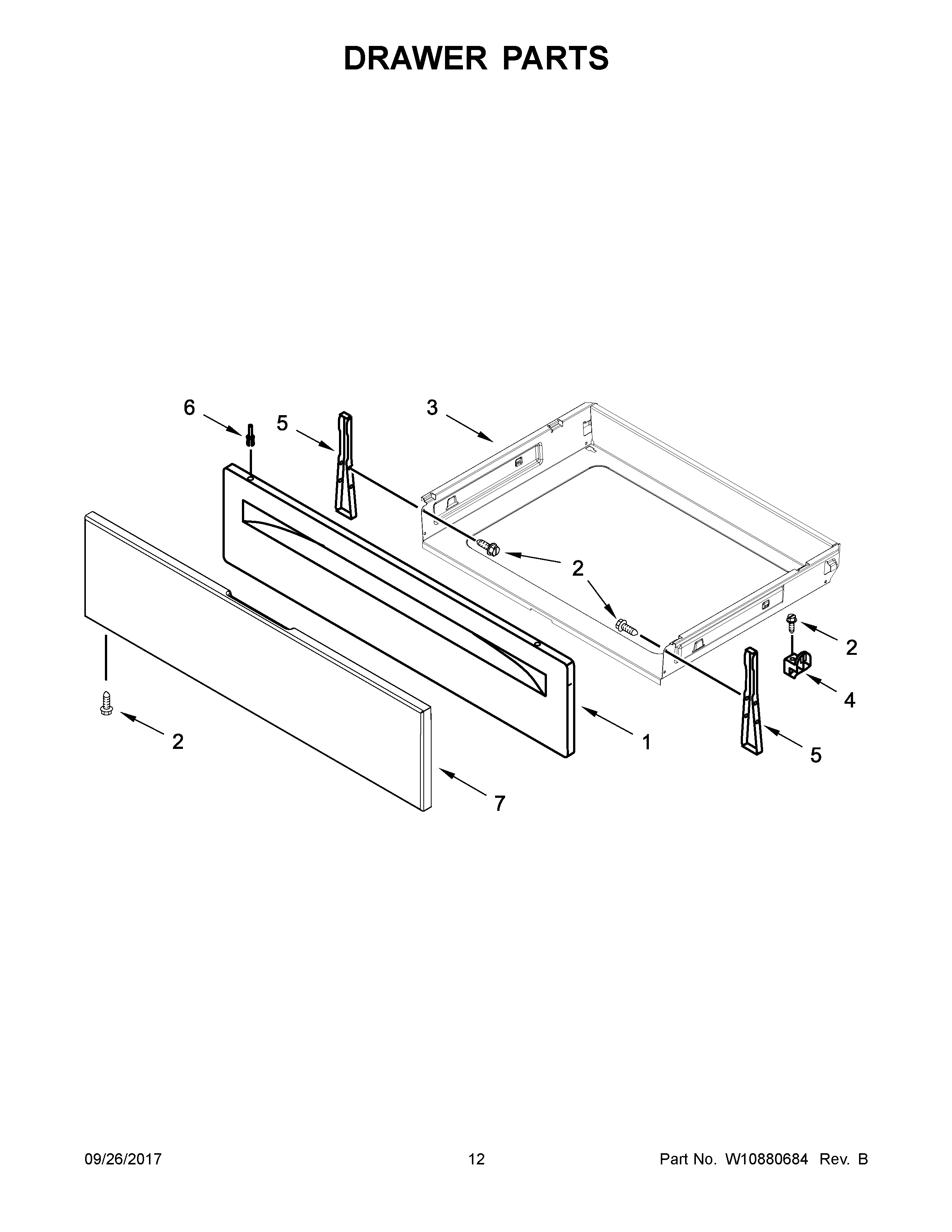

MGR6600FZ0 07 – DRAWER PARTS

Written by

Products

Position	Product
1	PANEL, DRAWER (BLACK)
1A	PANEL, DRAWER FRONT (WHITE)
2	SCREW
3	DRAWER, STORAGE
4	GLIDE, DRAWER REAR
5A	BRACKET, DRAWER MOUNTING (STAINLESS MODEL)
5	BRACKET, DRAWER MOUNTING (WHITE MODEL)
6	RIVET, PUSH (BLACK)
6A	RIVET, PUSH (WHITE)
7	PANEL, DRAWER (STAINLESS)
