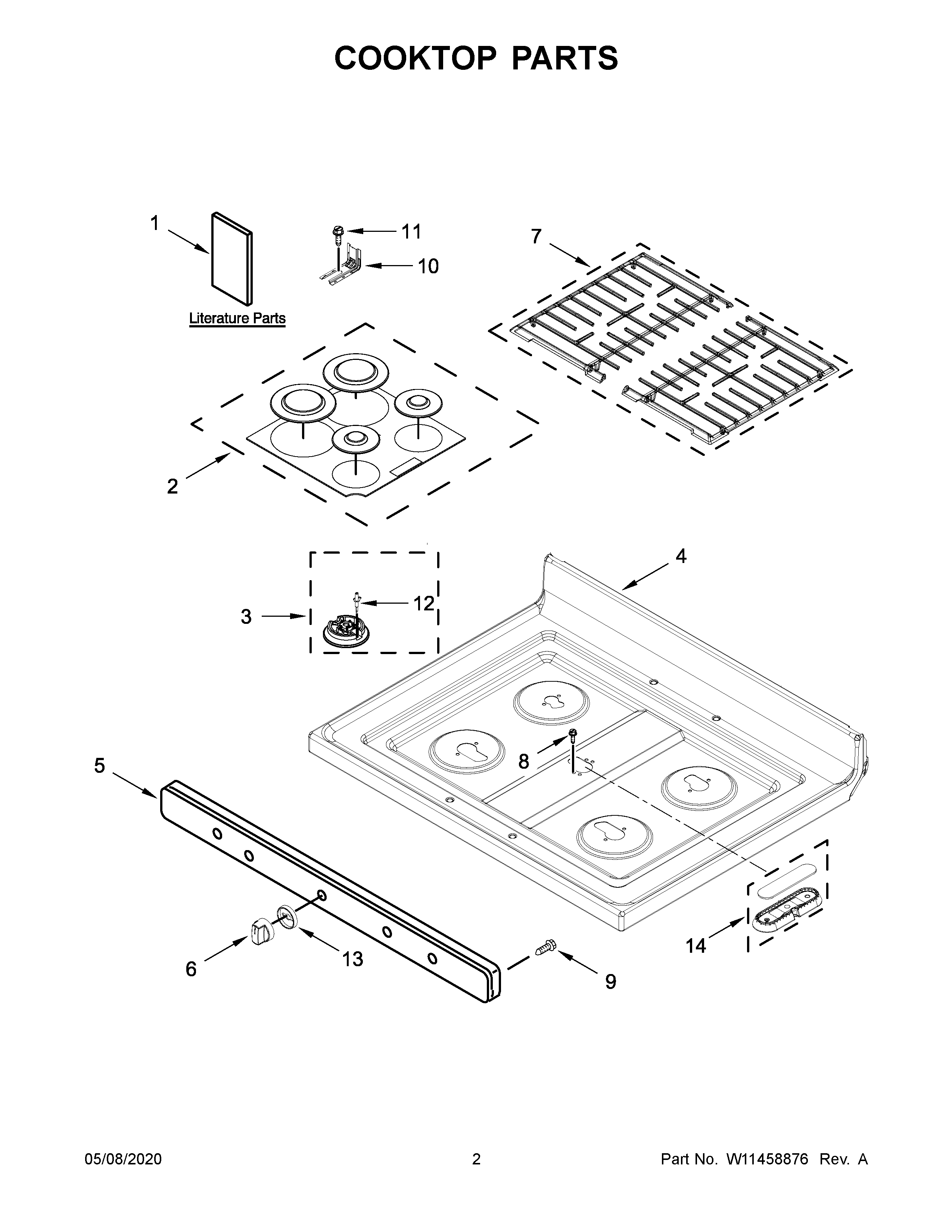

MGR6600FZ2 02 – COOKTOP PARTSadmin2025-04-26T09:12:58+00:00MGR6600FZ2 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | HARNESS, IGNITER (INCLUDES SWITCHES) |
| NI | HARNESS, BAKE/BROIL |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | HARNESS, MAIN |
| NI | CLIP, GAS WIRING |
| NI | CLIP, WIRE |
| NI | CLIP, HARNESS |
| NI | CLIP, WIRE |
| 1B | SHEET, TECH |
| 1A | USE AND CARE GUIDE |
| 1 | INSTALLATION INSTRUCTIONS |
| 1C | DIAGRAM, WIRING |
| 2 | KIT, BURNER CAP (BLACK (SET OF 4)) |
| 3 | SPREADER, FLAME (LEFT FRONT & RIGHT FRONT) |
| 3B | SPREADER, FLAME (RIGHT REAR) |
| 3A | SPREADER, FLAME (LEFT REAR) |
| 4 | COOKTOP (BLACK) |
| 5 | PANEL, MANIFOLD (STAINLESS) |
| 6 | KNOB, CONTROL (STAINLESS) |
| 7 | KIT, GRATE (BLACK) |
| 8 | SCREW |
| 9 | MAY 3196557 |
| 10 | ANTI-TIP BRACKET |
| 11 | SCREW, ANTI-TIP KIT |
| 12A | ELECTRODE (LEFT FRONT, LEFT REAR) |
| 12 | ELECTRODE (RIGHT FRONT, RIGHT REAR, CENTER) |
| 13 | BEZEL (STAINLESS) |
| 14 | SPREADER, FLAME |
