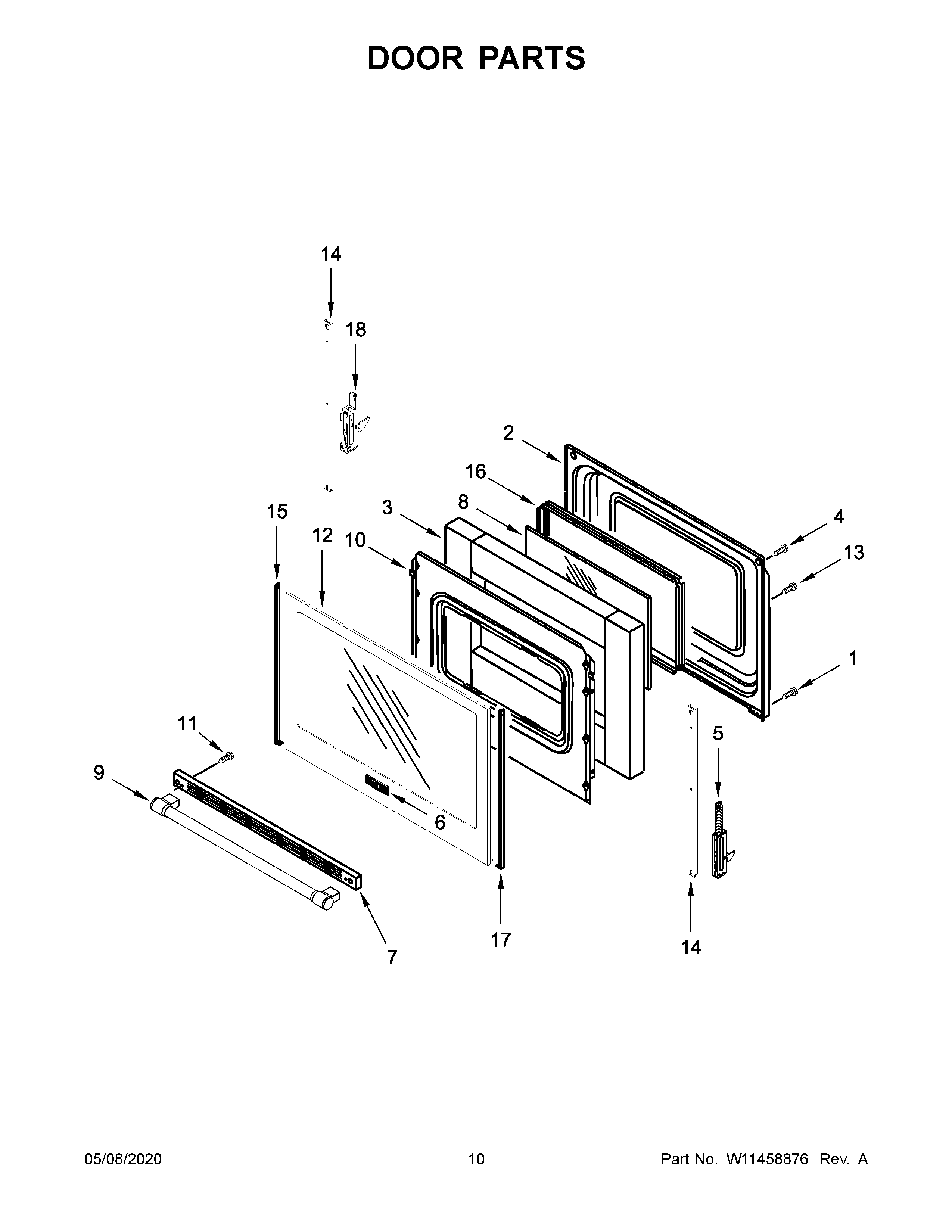

MGR6600FZ2 06 – DOOR PARTS

Products

PositionProduct
1MAY W10031780
2LINER, DOOR
3INSULATION, DOOR STRIP
4SCREW
5HINGE, ACTIVE (WITH SPRING)
6BADGE
7MAY W11047800
8GLASS, INNER
9HANDLE, OVEN DOOR (STAINLESS)
10RETAINER, INSULATION
11SCREW
12GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
13SCREW
14DOOR STRAP
15TRIM, SIDE (BLACK (LEFT))
16FRAME, GLASS
17TRIM, SIDE (BLACK (RIGHT))
18HINGE, DOOR (PASSIVE)
