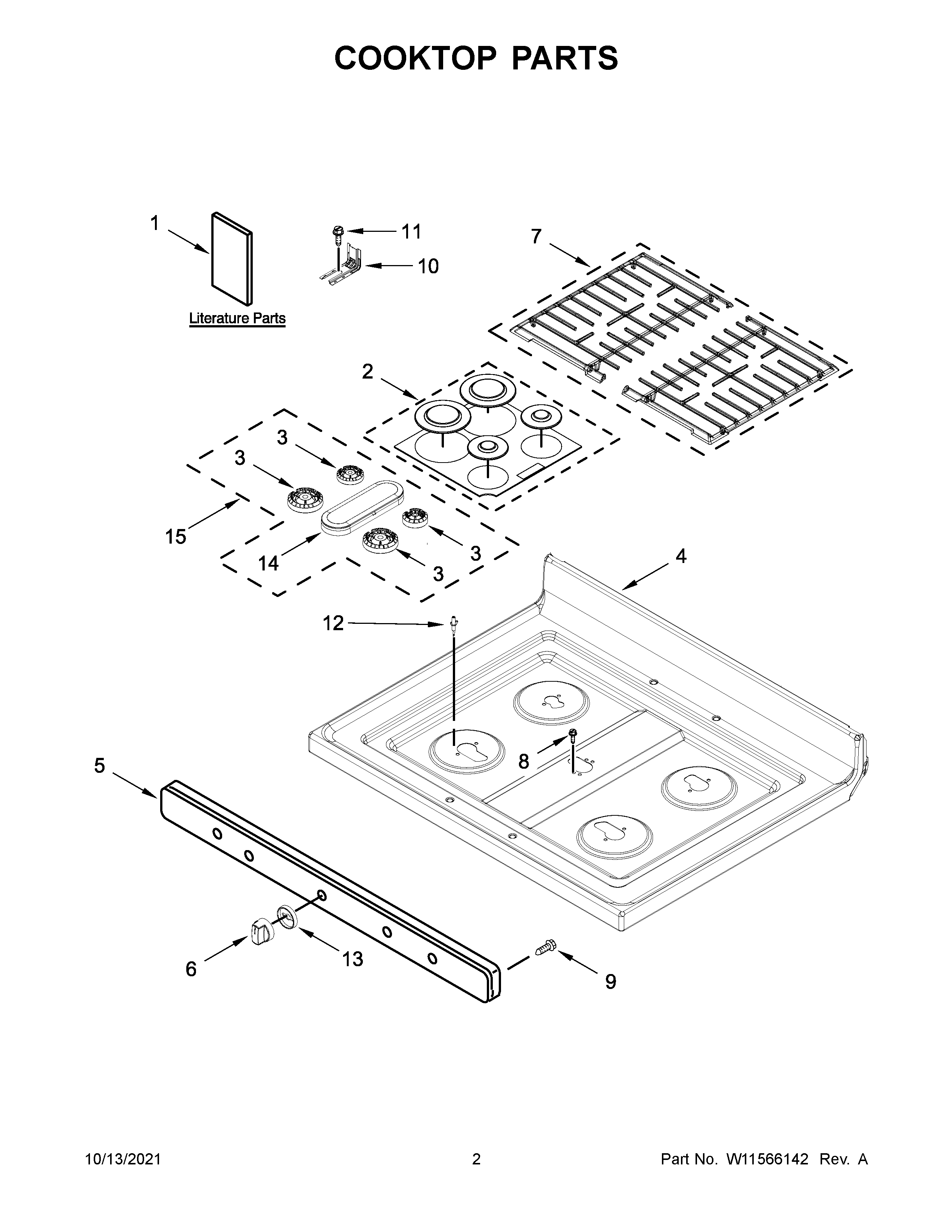

MGR6600FZ3 02 – COOKTOP PARTS

MGR6600FZ3 02 – COOKTOP PARTS

Written by

in

MGR6600FZ3 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11453753 Whirlpool Wire Harness
NIW11233074 Whirlpool Wire Harness
NIW11645866 Whirlpool Wire Harness
NIW10334923 Whirlpool Clip
NI3196896 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NI16515 Whirlpool Clip
1BTECH SHEET
1QUICK START GUIDE
1AOWNERS MANUAL
2W11605759 Whirlpool Burner Cap
3BW11435657 Whirlpool Burner Head
3W11435630 Whirlpool Oven Burner Head
3AW11435659 Whirlpool Burner Head
4W11454367 Whirlpool Cooktop
5W11028196 Whirlpool Manifold Panel
6W11101439 Whirlpool Knob
7W11101497 Whirlpool Grate Kit
8W11241230 Whirlpool Screw
9WP3196557 Whirlpool Screw
10W11447673 Whirlpool Range Tip Anchor
11SCREW, ANTI-TIP KIT
12AW11453940 Whirlpool Surface Igniter
12W11453920 Whirlpool Surface Igniter
13W11375481 Whirlpool Knob Bezel
14W11435660 Whirlpool Burner Head
15W11575584 Whirlpool Burner Head
