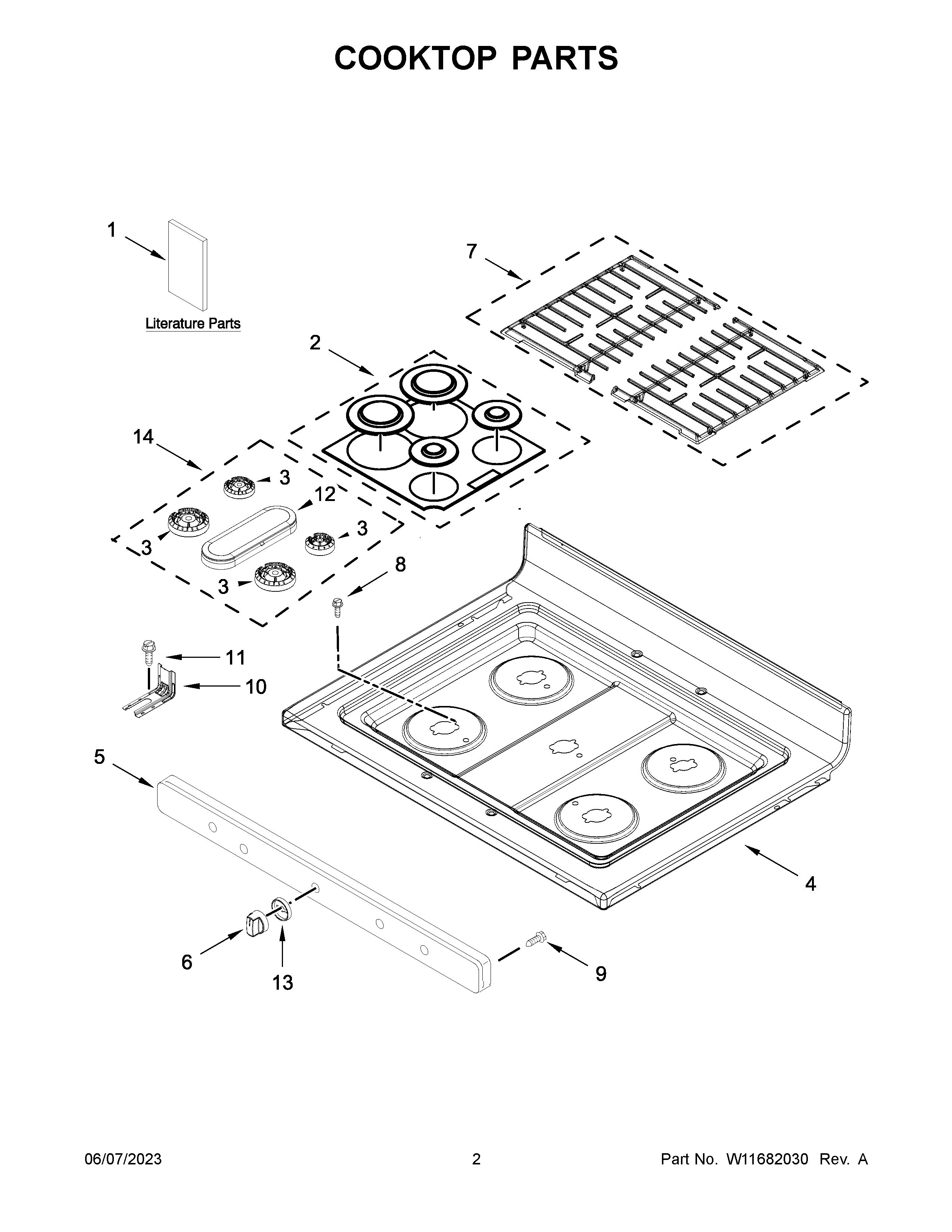

MGR6600PZ0 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11645866 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
NI	W11457167 Whirlpool Wire Harness
NI	HARNESS, IGNITER (INCLUDES SWITCHES)
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
1A	OWNERS MANUAL
1	QUICK START GUIDE
1B	TECH SHEET
2	W11605759 Whirlpool Burner Cap
3	WPW10515455 Whirlpool Burner Head
3A	WPW10515454 Whirlpool Burner Head
3B	WPW10515453 Whirlpool Burner Head
4	W11454367 Whirlpool Cooktop
5	W11028196 Whirlpool Manifold Panel
6	KNOB, CONTROL (BLACK)
7	W11101497 Whirlpool Grate Kit
8	W11241230 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12	W11435660 Whirlpool Burner Head
13	W11375481 Whirlpool Knob Bezel
14	W11575584 Whirlpool Burner Head
