MGR6600PZ1 03 – CONTROL PANEL PARTS
Written by
in

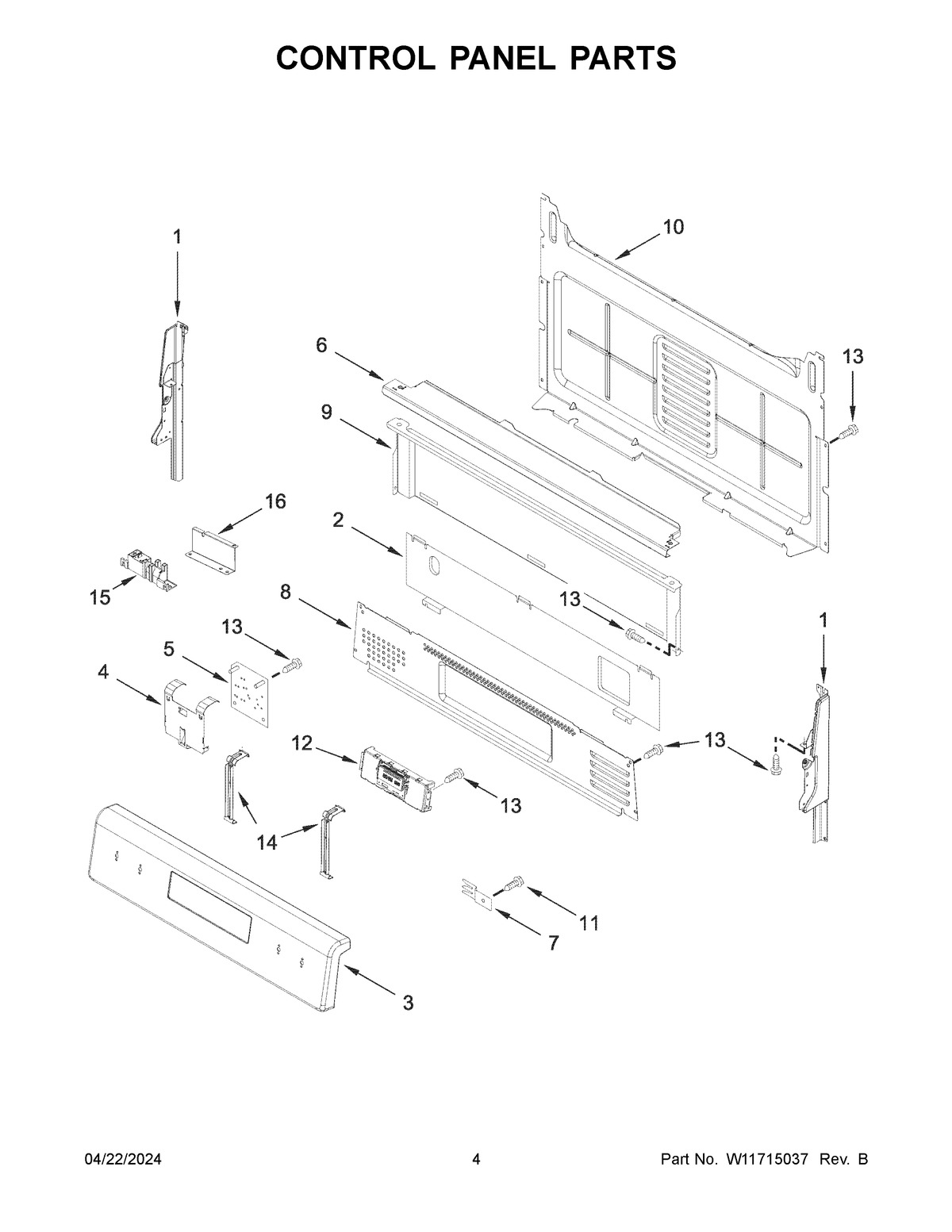

MGR6600PZ1 03 – CONTROL PANEL PARTS
Products
Position
Product
1
W11219664 Whirlpool Endcap Panel
1A
W11219665 Whirlpool Panel Endcap
2
8053505 Whirlpool Oven Shield
3
W11026866 Whirlpool Control Panel
4
W10762981 Whirlpool Mounting Bracket Assembly
5
W11162730 Whirlpool Spark Module
6
W10516123 Whirlpool Mounting Bracket
7
8523412 Whirlpool Mounting Bracket
8
W10198745 Whirlpool Rear Cover
9
W10192841 Whirlpool Heat Shield
10
COVER, BACK
11
WP3196557 Whirlpool Screw
12
W11621746-includeCORE Whirlpool W11621746 Refrigerator Electronic Control Board + Core
13
SCREW
14
W11230932 Whirlpool Bracket Mounting
15
W11703692 Whirlpool Speaker Module
16
W10901176 Whirlpool Bracket Assembly
←
