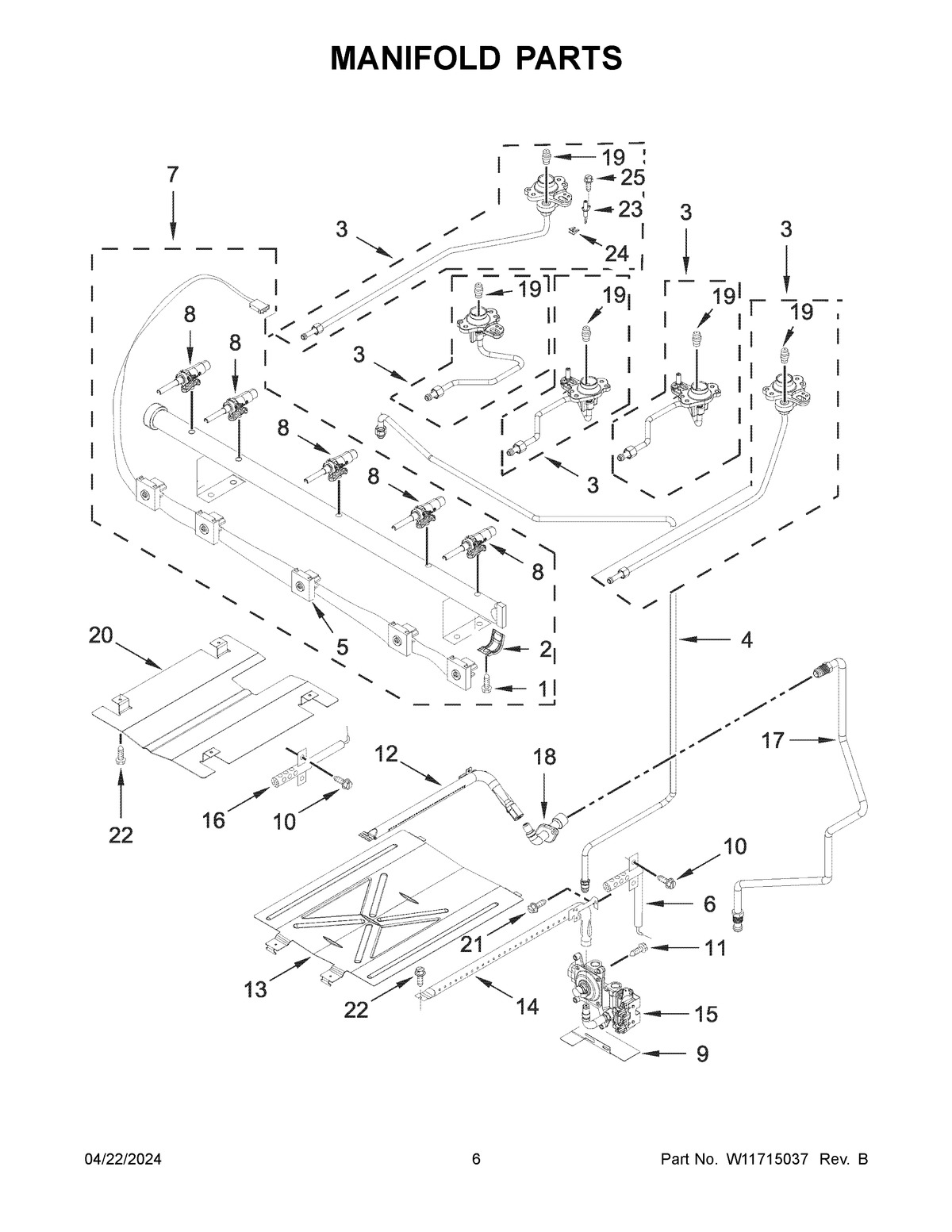

MGR6600PZ1 04 – MANIFOLD PARTS

MGR6600PZ1 04 – MANIFOLD PARTS

Written by

in

MGR6600PZ1 04 – MANIFOLD PARTS

Products

PositionProduct
NIW10758273 Whirlpool Orifice
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11126051 Whirlpool Conversion Kit
NIWPW10182767 Whirlpool Wire Tie
NIWPW10400495 Whirlpool Orifice Assembly
NIW11560165 Whirlpool Conversion Kit
1SCREW, VALVE
2W10949105 Whirlpool Mounting Bracket
3W11562501 Whirlpool Orifice Holder
3BW11557816 Whirlpool Orifice Holder
3CW11557817 Whirlpool Orifice Holder
3DW11557818 Whirlpool Range Orifice Holder
3AW11557815 Whirlpool Orifice Holder
4W11680399 Whirlpool Gas Tubing
5HARNESS, IGNITER (INCLUDES SWITCHES)
6W11524031 Whirlpool Oven Igniter
7W11510000 Whirlpool Manifold
8BW11509687 Whirlpool Burner Valve
8VALVE-BRNR
8AW11509686 Whirlpool Burner Valve
9W10224921 Whirlpool Bracket Mounting
10W11684507 Whirlpool Screw
11WP3400016 Whirlpool Screw Assembly
12WP8054078 Whirlpool Broiler Burner
13WPW10184491 Whirlpool Burner Baffle
14WP9758078 Whirlpool Oven Burner
15W11449506 Whirlpool Gas Valve
16WPW10333842 Whirlpool Oven Igniter
17W10420040 Whirlpool Gas Tubing
18W11435700 Whirlpool Fitting Component
19CW11485874 Whirlpool Orifice
19AW11485873 Whirlpool Orifice
19BW11712434 Whirlpool Orifice
19W11700316 Whirlpool Orifice
20W10137062 Whirlpool Burner Baffle
213196265 Whirlpool Oven Screw
22SCREW
23W11453920 Whirlpool Surface Igniter
23AW11453940 Whirlpool Surface Igniter
24W11684564 Whirlpool Clip Assembly
25WP8273062 Whirlpool Screw
